Name: Tamiya 42315 1/10 R/C TB Evo.7 Chassis Kit
SKU: TA 42315
Availability: OutOfStock

描述

3 Layouts to Tame Any Course!

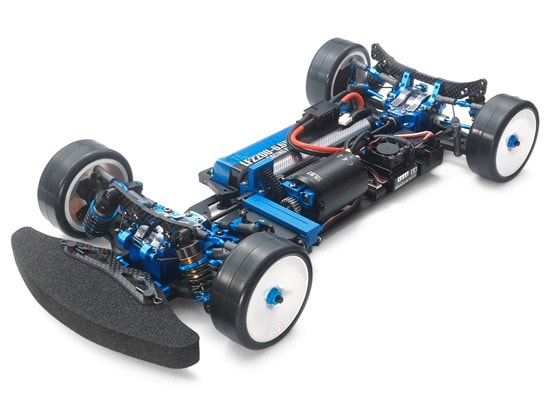

This high performance shaft-driven 4WD chassis utilizes a 2mm thick aluminum lower deck with center stiffener for a blend of rigid pitch damping and flexible roll. Three different motor positions allow adaptation to a range of courses, while the lack of an upper deck lowers the center of gravity. The steering linkage is affixed to the bulkhead mount, removing any impact upon chassis roll. A front direct coupling is paired with double cardan drive shafts, and the rear employs a gear differential unit. Suspension uses high performance TRF super short big bore dampers.

Featured Components
★Aluminum Lower Deck ★Aluminum Motor Mount (2-Piece) ★Aluminum Steering Linkage Parts ★Aluminum Lower Bulkhead ★Aluminum Center Stiffener ★Carbon Fiber Damper Stays ★Front Direct Coupling ★Aluminum Gear Differential Cup Joints ★Aluminum Suspension Mounts (1C, 1C, 1X, 1E) ★TRF Super Short Big Bore Dampers ★Carbon Fiber Bumper Support ★Aluminum Turnbuckle Shafts ★Front Double Cardan Drive Shafts ★42mm Lightweight Assembly Universal Shafts (Rear)

★Layout 1 is the standard setup, with the motor located in the furthest forward position.

★Layout 2 has the motor at the rear, to maximise the TB EVO.7’s rear wheel traction.

★Race-oriented Layout 3 accomodates short battery packs (square-shaped products).

★TRF super short big bore dampers are paired with a low-profile damper stay for a low center of gravity.

★Steering linkage is affixed directly to bulkhead to avoid it having influence on chassis roll.

★2-piece motor mount allows fuss-free adjustment of motor backlash, for efficient setup.

★Center brace parts are connected by a 2.5mm thickness carbon fiber support. An alternative turnbuckle shaft is also included.

Specifications
★Chassis Length: 371mm ★Chassis Width: 188mm ★Wheelbase: 257mm ★2mm thick Aluminum Frame ★Shaft-Driven 4WD ★Front Direct Coupling ★Rear Gear Differential ★3-Piece Steering Tie-Rod ★4-Wheel Independent Double Wishbone Suspension ★TRF Super Short Big Bore Dampers ★11 Gear Ratios between 8.25:1 and 5.50:1 possible using kit-included 66T spur gear (pinion gear is sold separately)

Separately Required Items
★Body ★Type 540 Motor ★Pinion Gear ★Tires ★Wheels ★2-channel R/C system with ESC ★Batteries for transmitter ★Battery Pack and Charger
