Name: Tamiya 42389 1/10 RC TRF104 Chassis Kit
SKU: TA 42389
Availability: PreOrder

描述

田宮 42389 1/10 RC遙控車 TRF104 底盤套件

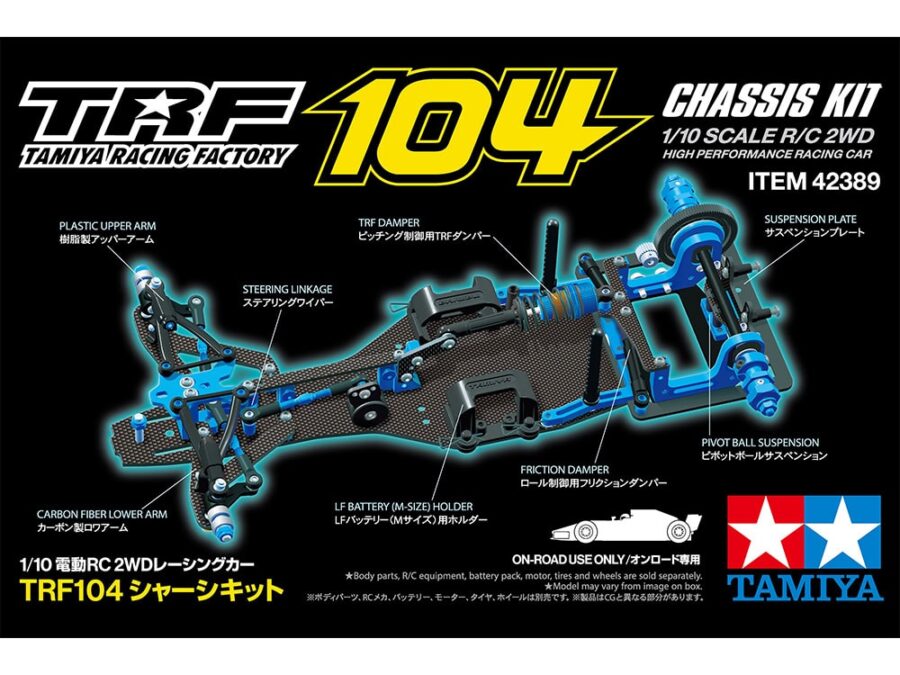

The regulation change of actual formula cars is now being planned in 2026 and the real formula world is a hot topic! To kick this formula world into gear in our R/C Line-Up, we are delighted to announce the release of the TRF104 chassis kit which is a hi-spec 2WD formula R/C chassis. It has been about 7 years since we released the TRF103 chassis (Item 42318). This TRF104 chassis features updated front and rear suspension, plus an updated R/C equipment layout which is compatible with LF1100-6.6V batteries and Li-Po batteries.

【About the Model】

This is a 1/10 scale R/C model assembly kit. Length: 325mm (excluding front and rear wings), width: 169mm (front axle width excluding front and rear wheels), height: 46.5mm (excluding body mount).
Comes with a dedicated carrying case or the TRF104 chassis kit.
Please note that body, front and rear wings, motor, wheels and tires, R/C equipment, batteries for transmitter, battery pack and charger are sold separately.

【FEATURES】

Features plastic upper arms.
Camber angle is adjustable freely from +1 to -3 degrees (approximate) with 2mm hex wrenches.
Caster angle is also adjustable at 6, 9 and 12 degrees. (approximate).
- How to adjust caster angle:
  1. Loosen screws.
  2. Adjust upper arm mounts.
  3. Tighten screws.
- *The TRF 103 chassis offers similar adjustment, but requires changing of camber adjusters.

Suspension link and T-bar setup is not used. Instead, ball connectors are equipped at motor mount front and rear, and suspension roll is placed at the center of the chassis.
The model centering is controlled by roll springs under rear shaft, and friction grease on roll dampers at motor mount allow adjustment of roll speed.
The pitching is controlled by FRP suspension plate flex and a TRF damper.

Formula chassis can lose rear grip because of unbalanced weight. To prevent this problem, battery pack, receiver and servo are positioned at the center of chassis to ensure better rear grip.

Compatible with LF1100-6.6V battery packs (middle size). (Not LF2200-7.2V battery packs.)
The square-shaped battery holder is included for Li-Po battery packs to comply with overseas or open-class regulations.

Motor mount has parts for adjustment of ground clearance and wheelbase: 5 types of ground clearances are adjustable in 0.8mm steps and two wheelbases can be chosen with a difference of 2.5mm.
- *The TRF103 chassis offers similar adjustment.

The laid down steering servo is positioned about 30mm backwards compared to the TRF103 chassis, and ensures a low center of gravity.
Features a choice of 4 types of steering linkage adjustments over a range of about 1.8mm length by changing ackerman plate position to keep direct steering.

Rear differential unit is the same as the one used for the TRF103 chassis. Lightweight and durable carbon fiber shaft limits weight, and ensures compatibility with rubber tires which are relatively heavy.

A 2mm thick carbon fiber plate is used to attach rear wing. In this case, rear wing is connected to motor mount and it moves along with rear suspension.
When adding separately sold Item 53596 Aluminum Servo Stays (Short) as wing mount to attach rear wing, rear wing is connected to suspension plate and it does not move along with rear suspension. (It remains horizontal even if rear suspension moves.)

2.5mm thick carbon fiber front lower suspension arms have two attachment positions (3mm adjustment for each side) to adjust its width and attach wheels with different offsets.
If using separately sold Item 54153 (F103 Carbon Reinforced Front Suspension Arm) and 53119 (RD Special King Pin Set), the width can be changed to the same 200mm width as the TRF 103 chassis.

Both brushless and brushed motors can be mounted. Use a kit-included aluminum motor plate to mount brushed motor.

The following sealed ball bearings are included.

1060 Sealed Flanged Ball Bearings (New) x2
4 pcs. from Item 42366 (1050 Sealed Ball Bearings (2pcs.))
1pc from Item 42377 (1150 Sealed Ball Bearings (2pcs.))
1pc from Item 42375 (1280 Sealed Ball Bearings (2pcs.))

【Separately Required Items】

2-channel R/C system w/ESC
Motor
Servo motor for steering
Body
Front and rear wings
Wheels and tires
R6/AA/UM3 batteries for transmitter
Battery pack & charger

【以下需另購】

2ch 遙控裝置 & ESC電子變速器
摩打
轉向用伺服摩打
車殼
前後定風翼
輪圈 & 輪胎
發訊器用AA電池
遙控車用充電池及充電器

額外資訊

重量	3.5 公斤
遙控車底盤	TRF104
電變配置(ESC)	不包含電變(ESC)
