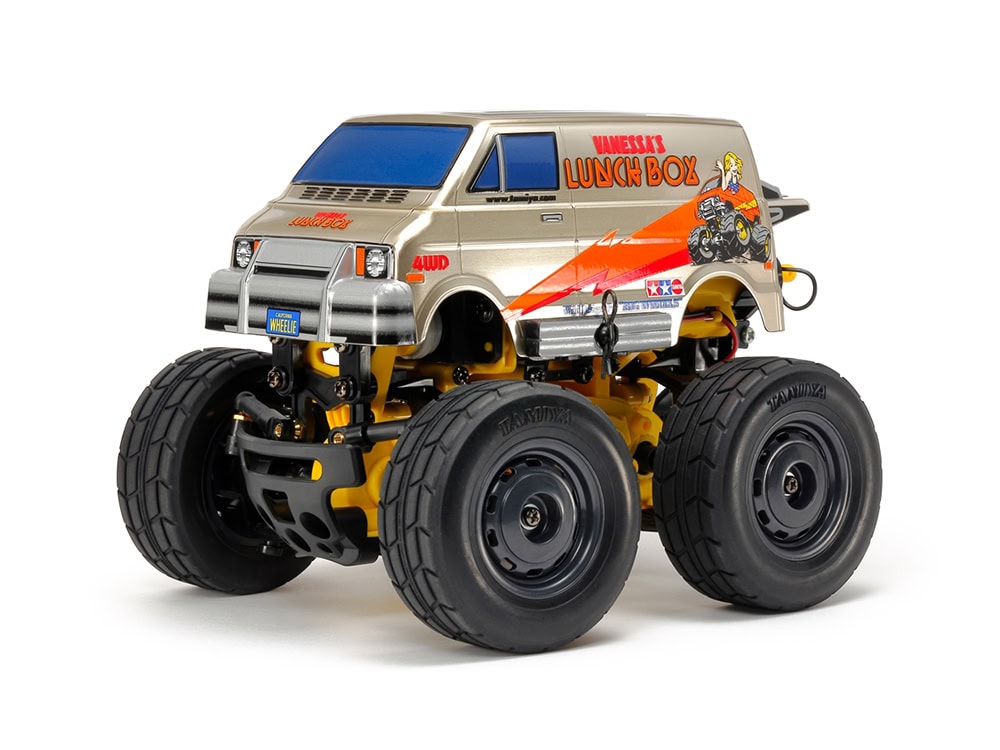

Tamiya 46706 1/24 RC X-SA Lunch Box Mini Gold Edition (SW-01 Chassis)

田宮 46706 1/24 RC遙控車 X-SA半完成品系列 Lunch Box Mini 黃金版 (SW-01底盤)

【Small yet perfectly formed】

The Lunch Box is a famous name in Tamiya R/C and Mini 4WD, delighting many a hobbyist over the years. Now, it is here in brand new mini 1/24 form, as a fascinating R/C model assembly kit! While extremely compact, it is endowed with excellent mechanical design: gear driven 4WD, strut suspension and more!

【SW-01: Super-Compact 4WD】

190mm long and 150mm wide, the SW-01 is a compact, highly fun 4WD chassis. A Type 370 motor is central in the slim monocoque frame, with gears transmitting its output to the front and rear of the model, where 70mm tires translate it into a powerful drive. The chassis power source is mounted in the top section to allow wild wheelies under acceleration. Strut type 4-wheel independent coil sprung suspension utilizes single piece upper arms to link left and right wheel steering motion, helping suppress roll during turns, and together with front and rear differentials realize a tight turning circle.

*Photos show normal color version.

【Specifications】

• Length: 190mm, Width: 150mm, Height: 140mm
• Wheelbase: 92mm
• Tread: 122mm (Front/Rear)
• Tire Width/Diameter: 28/70mm (Front/Rear)
• Monocoque Frame
• Gear-Driven 4WD
• Planetary Gear Differentials
• 3-Piece Steering Tie-Rod
• Suspension: MacPherson Strut
• Gear Ratio = 21.88:1
• Type 370 Motor

【Separately Required Items】

• 2-channel R/C system w/ESC
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger (or R6/AA/UM3 batteries)

【以下需另購】

• 2ch 遙控裝置 & ESC電子變速器
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器 (或AA電池)
