Tamiya 47433 1/10 RC Toyota Supra Racing (A80) (TT-02 Chassis)

田宮 47433 1/10 RC遙控車 豐田汽車 Supra Racing (A80) (TT-02底盤)

【Powerful Supra】

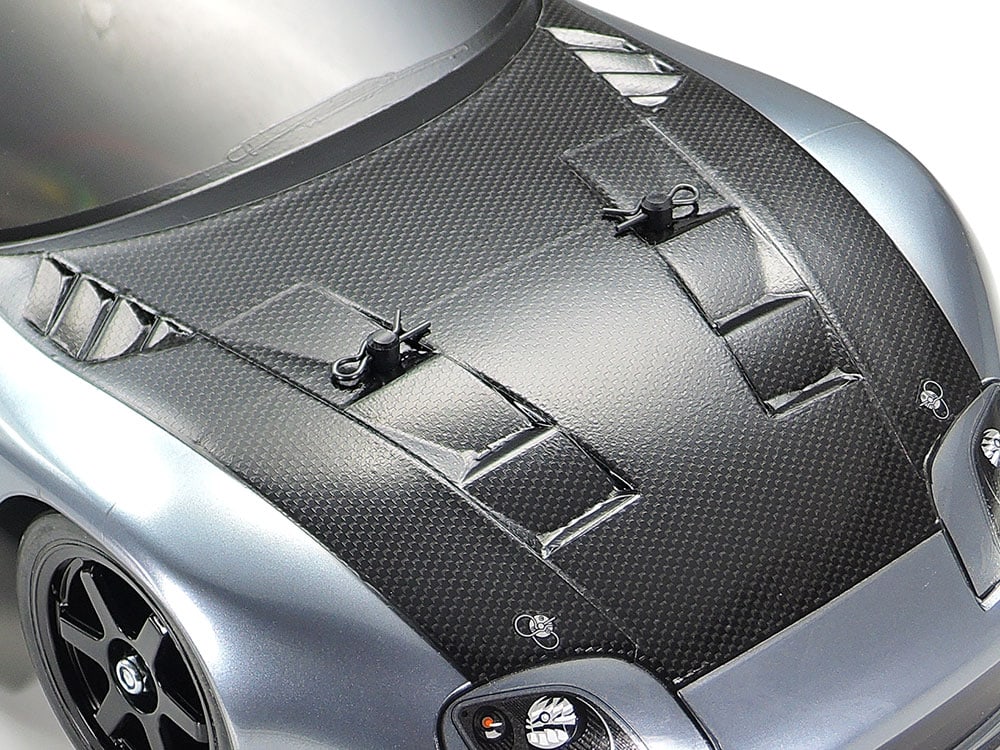

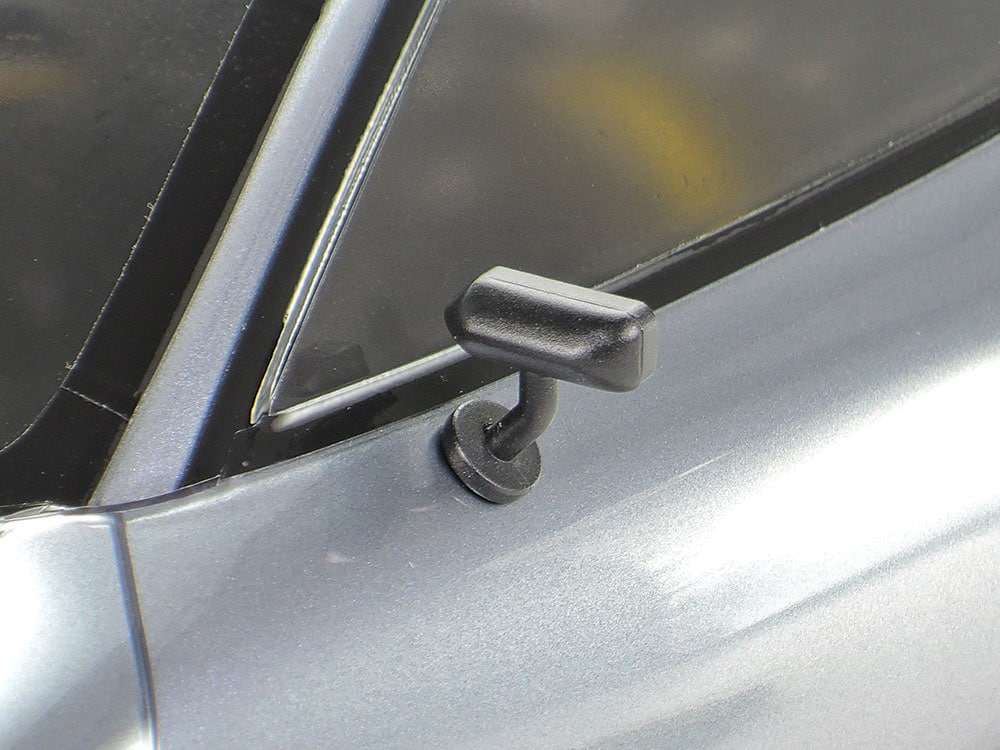

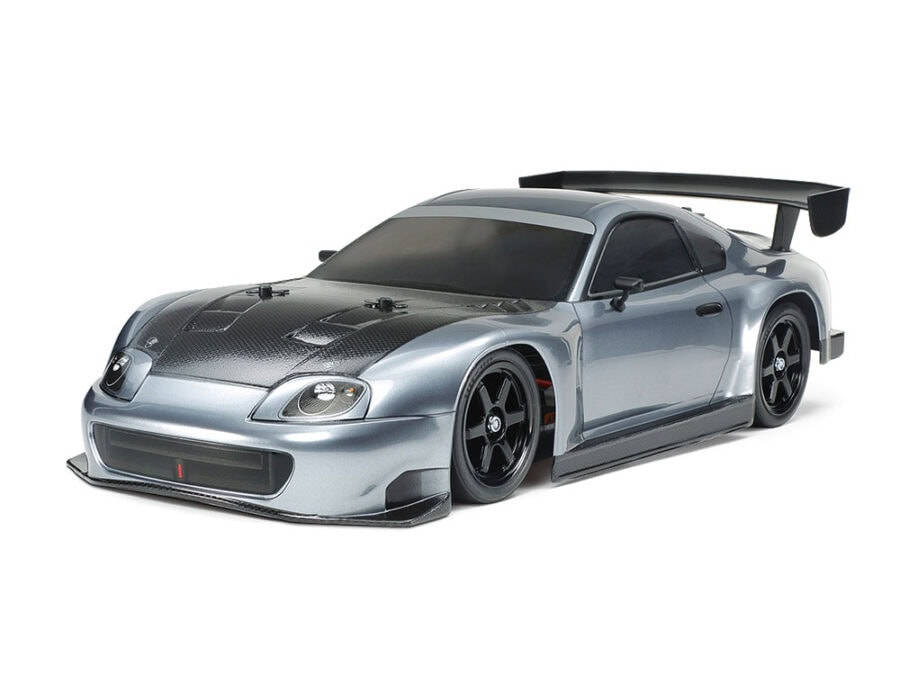

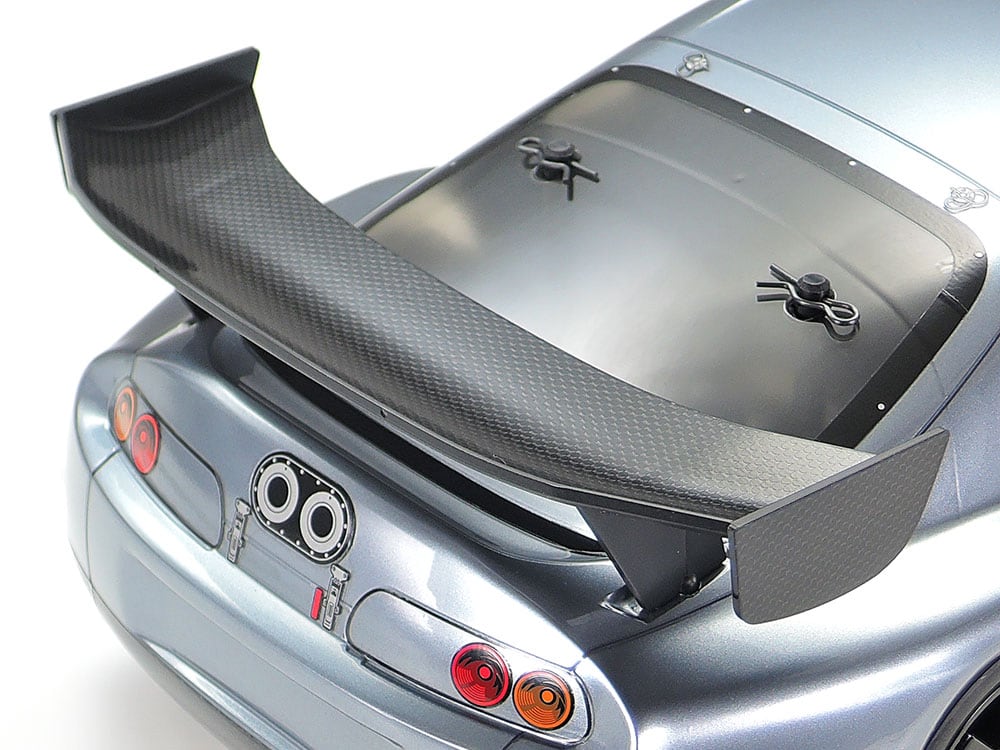

This R/C model assembly kit depicts a car based upon the fourth generation Toyota Supra (A80), a superbly stylish high performance car announced in 1993 that was a common sight in motorsports events. A polycarbonate body captures its form in style, with highlights such as hood air outlets and muscular fenders. Side mirrors and rear wing are separately molded parts, and carbon fiber pattern stickers are provided for the latter and the engine hood.

【TT-02: Adaptable, balanced shaft driven 4WD】

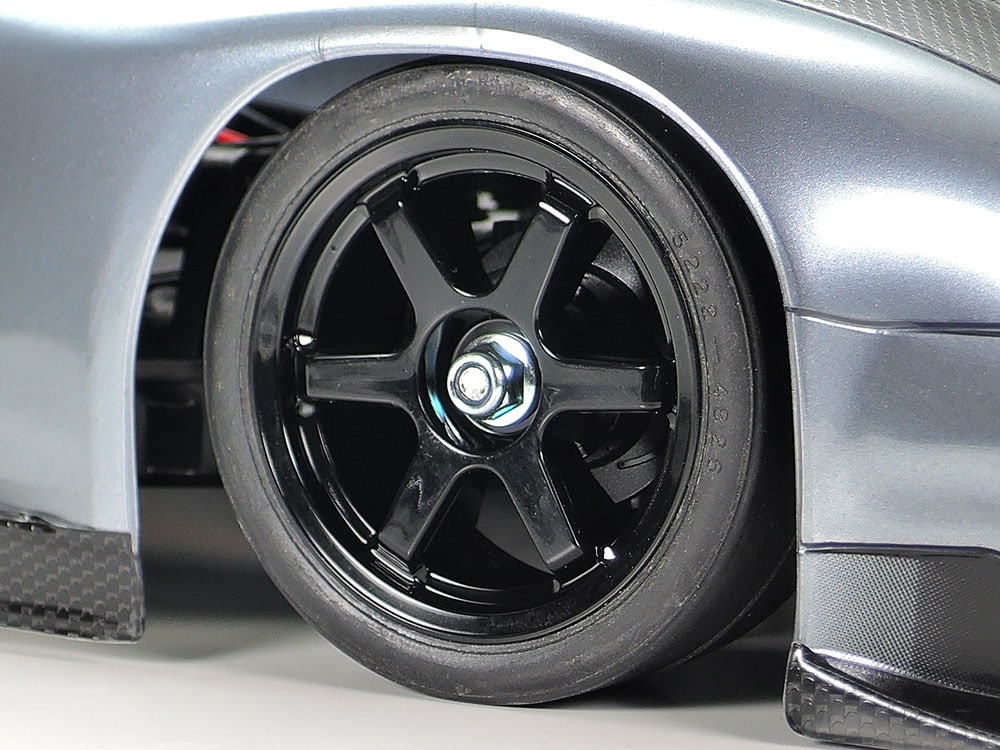

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 10-spoke wheels use tread patterned semi-pneumatic tires.

【Specifications】

• Length: 452mm, Width: 187mm, Height: 120mm
• Wheelbase: 257mm
• Tire Width/Diameter: 27/67mm (Front & Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 Motor
• Electronic Speed Controller (ESC) is sold separately.

【Separately Required Items】

• 2-Channel R/C Unit with ESC
• Battery Pack & Charger
• R6/AA/UM3 batteries for transmitter
