Tamiya 47454 1/10 R/C Plasma Edge II Iridescent Purple/Green (TT-02B)

田宮 47454 1/10 RC遙控車 Plasma Edge II 幻彩紫/綠色 (TT-02B底盤)

Shimmering Plasma Edge II

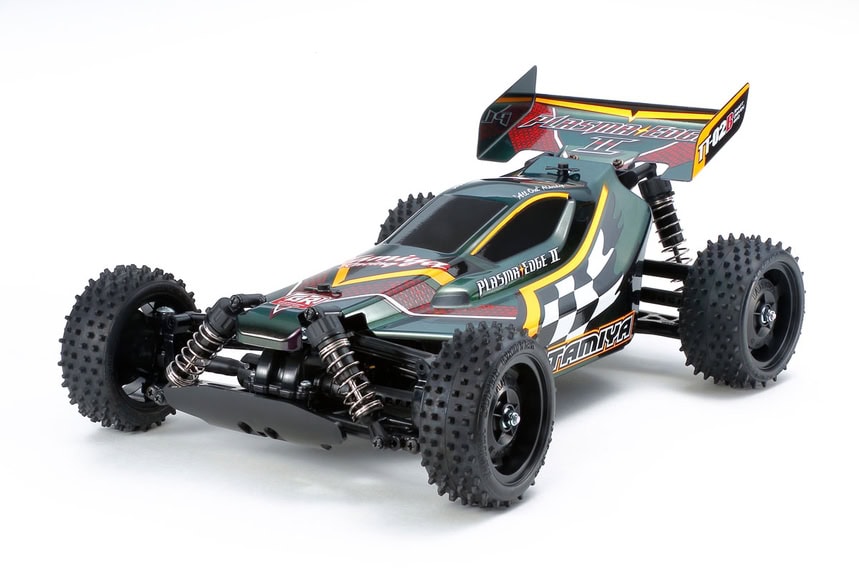

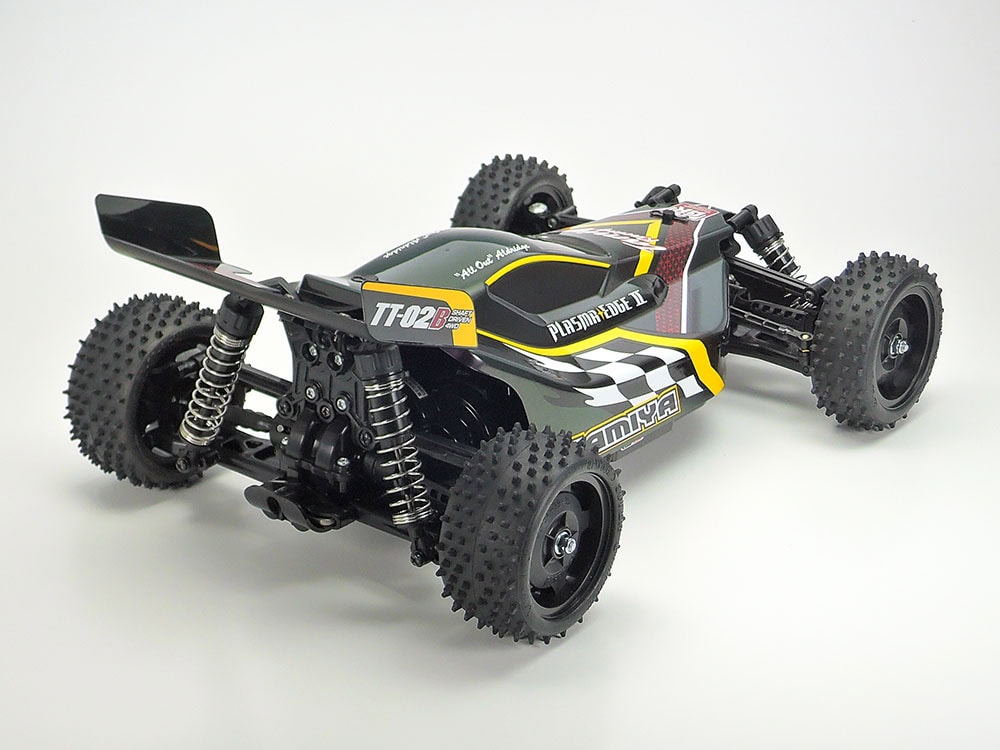

This R/C model assembly kit creates a stylish version of the Plasma Edge II shaft-driven 4WD buggy, with the polycarbonate body and wing pre-cut and painted in iridescent purple/green, which shifts colors depending upon the angle it is viewed from. To complete the body, just apply the included stickers. CVA oil dampers and wheels are black to really allow the body color scheme to stand out, and the model is based upon the highly controllable TT-02B chassis.

Shaft-Driven 4WD and Superior Handling from the TT-02B

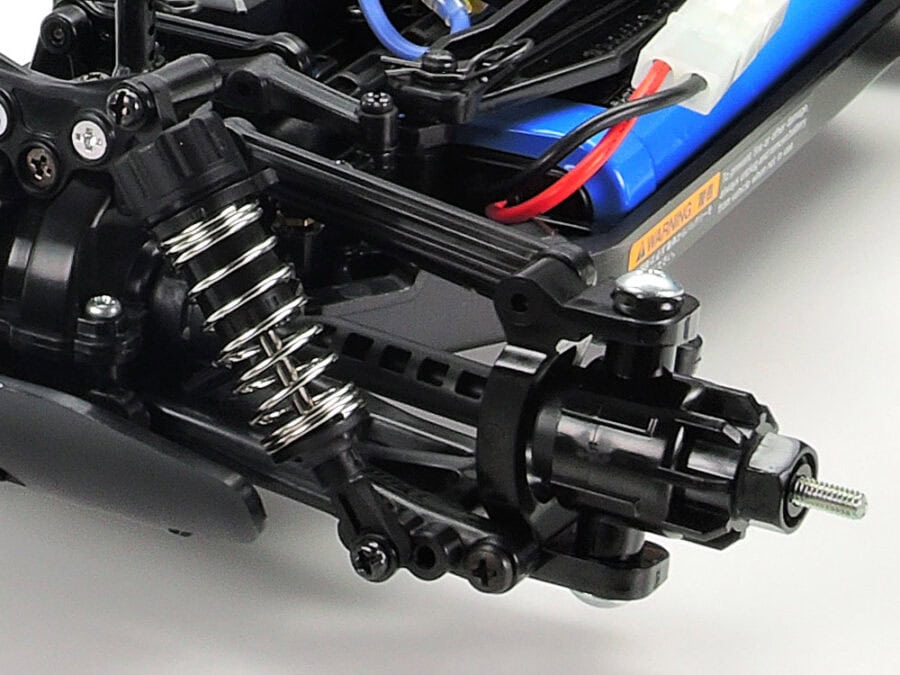

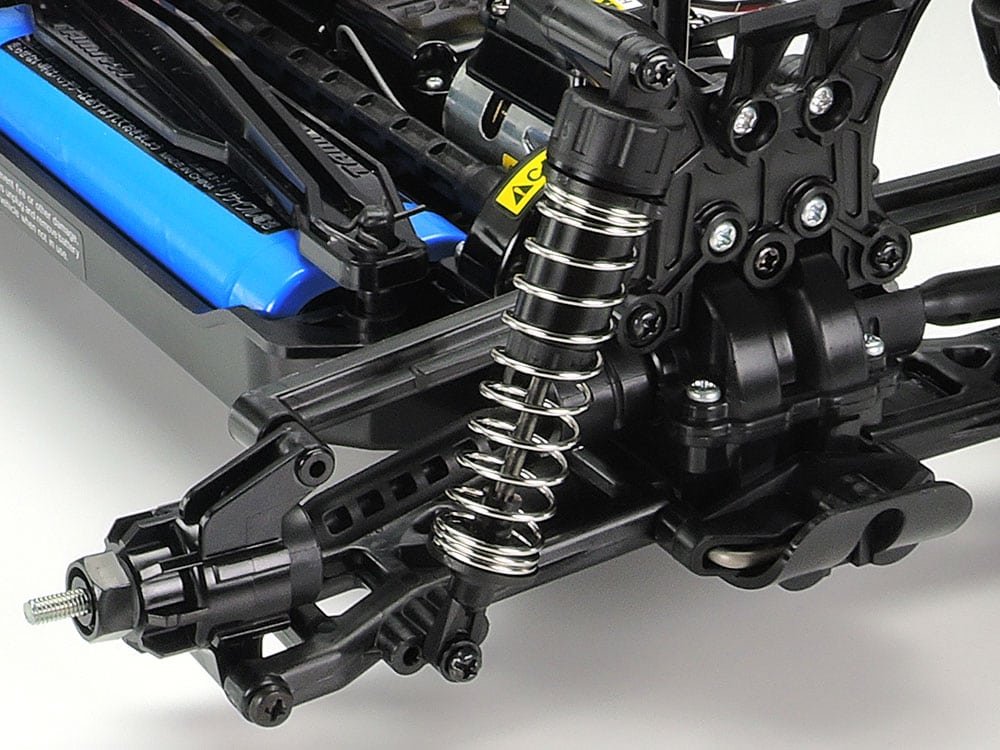

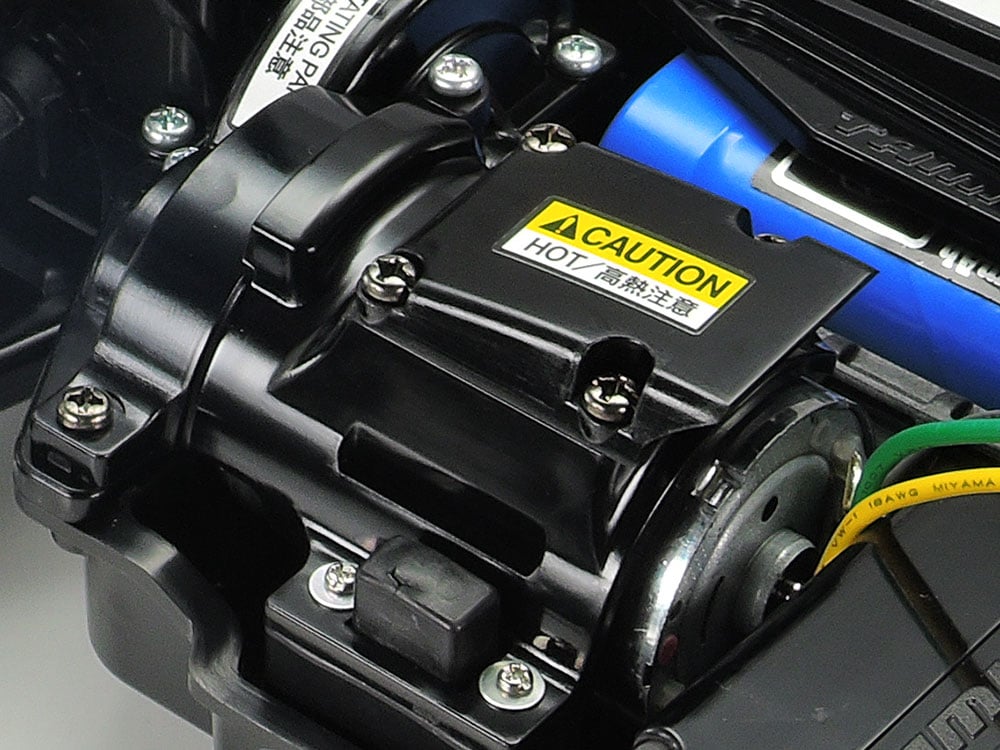

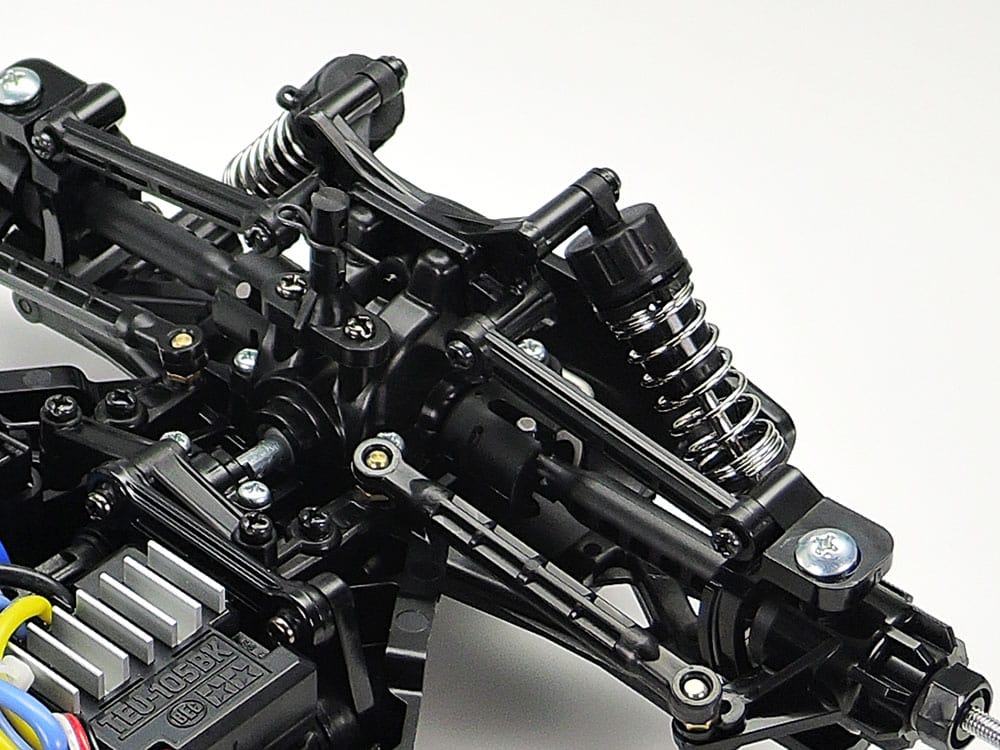

The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA oil shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can’t get inside. The tops can be removed simply by loosening a few screws, making maintenance a breeze. 4 different gear ratios can be applied with the use of 3 separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

Specifications

• Length: 370mm, Width: 250mm, Height: 160mm
• Wheelbase: 266mm
• Tread: 217mm (Front), 208mm (Rear)
• Bathtub-type Chassis Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension

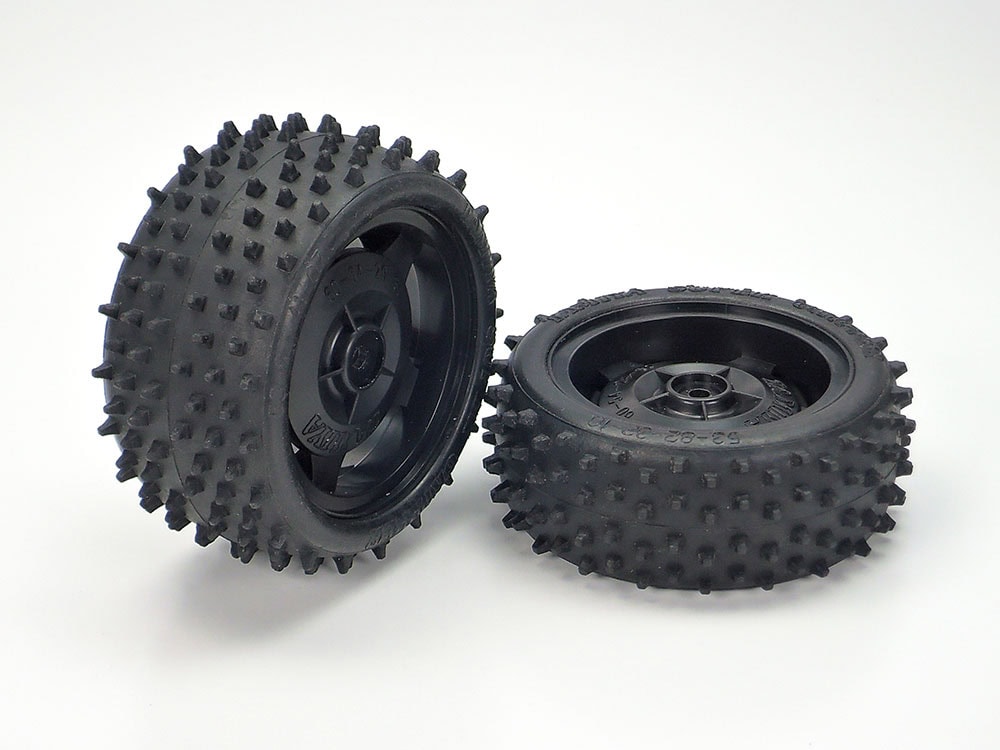

• Tire Width/Diameter: 32/82mm (Front), 41/82mm (Rear) (Square Spike Tires)
• CVA Oil Shock Units
• Gear Ratio = 10.71:1 (with kit-included pinion gear)
• Type 540 Motor
• Requires an Electronic Speed Controller (sold separately)

Separately Required Items

• 2-Channel R/C Unit with ESC
• Battery Pack & Charger
• R6/AA/UM3 batteries for transmitter
