田宮 47497 1/10 RC遙控車 Squash Van (已上色車殼版) (GF-02底盤)
【Retro & funky driving experience is exciting!】

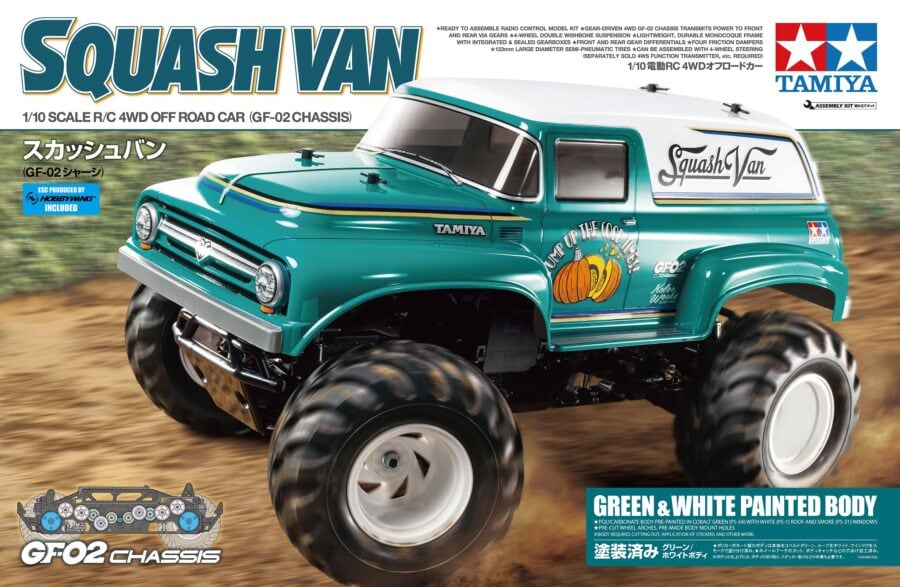

This electric radio control car assembly kit features a classic style inspired by American panel vans of the 1950’s. The rounded volume of the hood, uniquely shaped tire housings, and low-positioned headlights and grille create a funky atmosphere. The body is made of polycarbonate with a rounded and voluminous hood, uniquely shaped tire housings, and low-positioned headlights and grille that give the car a funky mood. The pumpkin illustration and car name logo are set as stickers. Gold/black/blue pinstripes are also provided to accent the body. The chassis is the GF-02, a gear-driven 4WD chassis that uses gears for front and rear power transmission. The suspension with friction dampers and large-diameter tires make for dynamic performance on pavement and off-road terrain.
【Gear drive 4WD, GF-02 chassis, featuring tough and slim design】
The GF-02 chassis is a gear-driven 4WD chassis featuring a light and strong monocoque frame with the motor mounted low in the center of the frame and power transmitted to the front and rear wheels via gears. The long wheelbase and wide-tread chassis configuration allows for stable off-road driving. The frame features a slim, three-dimensional shape reminiscent of a ladder/pipe. The gear case is integrated into the frame and sealed to prevent intrusion of small stones and other debris. Front and rear differential gears are built in for smooth cornering. In addition, three different gear ratios can be selected with the optional pinion gear, and a motor guard is provided for reliability when driving off-road. Suspension is double wishbone with 4 independent wheels. A total of four friction dampers are set in the front and rear, and equal-length, two-part tie rods provide quirky handling characteristics. Deep-rimmed one-piece wheels are fitted with large-diameter tires made of hollow rubber with a diameter of 123 mm.
【Specifications】
- Length 454mm, Width 280mm, Height 238mm
- Wheelbase 267mm
- Tire width/diameter = 60/123mm (front/rear)
- Tread = 222mm (front/rear)
- Frame = Monocoque type with integrated gear case
- Drive train = Gear drive 4WD
- Diff gears = 3-bevel type Suspension: Double wishbone 4-wheel independent suspension
- Dampers: Friction front and rear
- Gear ratio: 18.03:1
- Motor: RS540 type
- Speed controller: ESC specification (sold separately)
【Separately Required Items】
- 2-channel R/C system
- Servo motor for steering
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
【以下需另購】
- 2ch 遙控裝置
- 轉向用伺服摩打
- 發訊器用AA電池
- 遙控車用充電池及充電器
