Tamiya 47499 1/10 RC Opel Kadett GT/E (Painted Body) (MB-01 Chassis)

田宮 47499 1/10 RC遙控車 歐寶 Kadett GT/E (已上色車殼版) (MB-01底盤)

【High performance 2-door coupe in 70’s rallies】

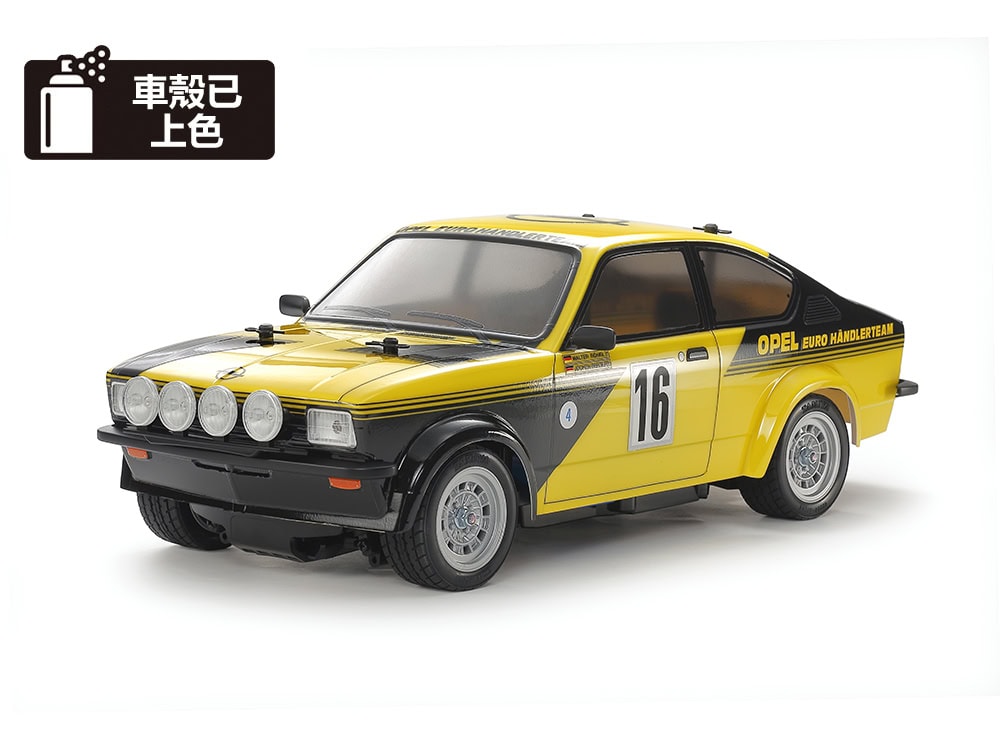

The Opel Kadett GT/E released in 1975 was a high-spec version of the Opel Kadett, a car which enjoyed great popularity in Europe in the 1970s. The GT/E had a 2-door coupe body, a high-spec 1.9-liter engine and reinforced suspension; the works Opel Eurohändler team, satellite teams and privateers took part in rally races with modified versions of this car, and in 1976 it secured second place in the manufacturer’s championship in global rally races. This assembly kit R/C model recreates the car in 1/10 scale, with a polycarbonate body capturing the classic lines of the car.

【MB-01 chassis】

The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

【2種驅動形式 × 3種軸距的MB-01底盤】

MB-01底盤提供前輪驅動和後輪驅動兩種驅動方式，同時可以再搭配3種不同的軸距，是一種多目的多功能的2WD緊湊形底盤。除了田宮遙控車一貫的輕鬆快捷的操作感之外，更可以選擇組成與實車同樣的驅動規格。底盤設計成前後左右對稱，並配上裝備摩擦式避震器的4輪獨立雙橫臂懸架系統。除此之外，「單元化摩打座」﹑「單元化終傳齒輪座」﹑「單元化懸架」等各種單元化構造亦為MB-01底盤帶來優秀的維護性。無須裝拆電池﹑摩打和裝有遙控裝置的中央底架，只需要把齒輪箱和轉向橋部分的方向倒轉，即可以由前輪驅動轉變為後輪驅動。後輪驅動時更可以選擇高或低兩種摩打安裝位置，令操作感有更大變化。

【Long wheelbase × MR | 長軸距 × 後輪驅動】

【Specifications】

• Length: 417mm, width: 174mm, height: 138mm
• Wheelbase: 239mm (Long)
• Tread: 140mm (front & rear)
• Tire width/diameter: 25/59mm (front & rear)
• Bathtub type chassis
• Midship motor, rear-wheel drive
• 4-bevel differential gear
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Friction dampers
• Gear ratio = 5.83:1 (using kit 29T pinion)
• Type 540 motor
• Electronic speed controller (ESC) is sold separately.

【Separately Required Items】

• 2-channel R/C system
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
