Tamiya 47500 1/10 RC Toyota Celica GT-Four RC (ST185) (White Painted Body) (TT-02 Chassis)

田宮 47500 1/10 RC遙控車 豐田 Celica GT-Four RC (ST185) (白色已上色車殼版) (TT-02底盤)

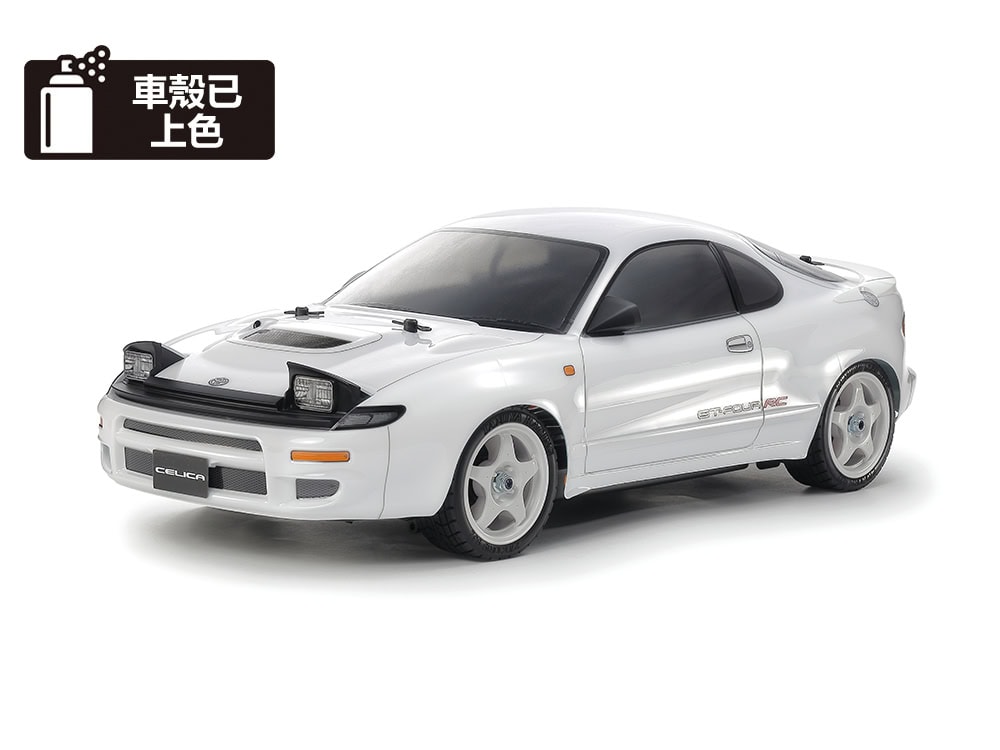

The Toyota Celica GT-Four RC was developed as a homologation car to take part in global rally races, and in 1991, 5,000 units were sold around the world. With its curved, powerful body, this car employed a 2-liter turbo engine with metal turbines and water-based intercooler system, which was capable of 235ps. The 4WD system utilized a center viscous coupling and a Torsen differential at the rear for superior controllability and traction. In 1993 global rally races, the Celica GT-Four (ST185) brought both Manufacturer’s and Driver’s Championships to Toyota for the first time. This assembly kit recreates the RC (Rally Competition) version of the car, with a lightweight and durable polycarbonate body based upon the shaft-driven 4WD TT-02 chassis.

【擁有優異操控性能和易於整備的軸驅動4WD – TT-02底盤】

本品採用了軸驅動4WD的TT-02底盤。把電池放於左側﹑摩打放於右側的間隔設計令車體易於平衡﹑便於操控。同時懸掛臂和轉向杯的左右共通設計亦令組裝容易上手，上下分割式的齒輪箱提高了整備性。除此之外﹑只需簡單地把零件互換組合就可以組成各2種類的軸距﹑車高和輪距﹑再加上多達10種類的齒輪比組合，可以選擇最適合自己的配置。

【TT-02: Adaptable, balanced shaft driven 4WD】

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

【Specifications】

• Length: 450mm, width: 187mm, height: 136mm
• Wheelbase: 257mm
• Tire width/diameter: 27/67mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel plastic differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 motor
• Electronic Speed Controller (ESC) is sold separately.

【基本規格】

• 全長 450mm, 闊 187mm, 高 136mm
• 軸距 257mm
• 輪胎闊 27mm / 直徑 67mm (前&後)
• 浴缸型底架
• 驅動方式：直置摩打．軸驅動4WD
• 差速器：樹脂製4錐齒輪型 (前&後)
• 轉向裝置：3分割鬆緊扣式
• 懸架系統：4輪雙橫臂懸架式
• 避震系統：摩擦式 (前&後)
• 齒輪比：標準配置8.27:1 (與另購的摩打齒輪組合可選擇11.38:1~7.28:1共10種齒輪比)
• 摩打：540型
• 速度控制：ESC電子變速器形式 (需另購)

【Separately Required Items】

• 2-channel R/C system w/ESC
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置 & ESC電子變速器
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
