Tamiya 47514 1/10 RC ENEOS X PRIME GR Supra (TT-02 Chassis)
$1,138.00
田宮 47514 1/10 RC遙控車 ENEOS X PRIME GR Supra (TT-02底盤)
尚有庫存
田宮 47514 電動RC車系列(特別企劃)No.514 1/10RC ENEOS X PRIME GR Supra(TT-02底盤)
【鮮烈配色的賽道焦點】
這是出戰2024年SUPER GT GT500級別、以橙色為主調的鮮烈塗裝、並於第3戰鈴鹿奪得亞軍的賽車——ENEOS X PRIME GR Supra的1/10電動RC組裝套件。與同場競逐的六台GR Supra相比,其配色份外搶眼,在RC賽道上同樣注目度十足。各部施以空力處理的複雜造型以聚碳酸酯充滿實感地重現。車身已噴塗分色:本體純橙色(Pure Orange)、車頂白色、車窗煙熏;而備受注目的車身拉花——引擎蓋的紅色部分、車體後部由金色/銀色/橙色組合而成的複雜圖案,以及尾翼面的金色等,均以大型貼紙呈現。輪拱切割與車身固定開孔加工亦已完成。底盤採用房車賽定番的傳動軸驅動4WD——TT-02,配上12輻輪圈與光頭胎。
【操控出色、設定樂趣豐富的傳動軸4WD——TT-02底盤】傳動軸驅動4WD的TT-02底盤,採用行駛用電池置於左側、馬達置於右側的縱置佈局,好平衡設計帶來出色的操控穩定性;懸掛臂與轉向節左右共通化,組裝容易;加上上下分割式齒輪盒等,維修保養性也十分出色。此外,透過零件重組等方式,軸距、車高、輪距均可各有2種選擇;馬達座可搭配出10種幅度的齒輪比,設定樂趣豐富。輪轂採用煞車碟風格設計,保險桿裝備以實車賽車為意象的保險桿支架,玩心十足。槍灰色金屬的12輻輪圈裝上中空橡膠製賽車光頭胎。
【基本規格】●全長466mm、全寬188mm、全高125mm ●軸距257mm ●輪胎寬/直徑=前後均為27/67mm ●車架=浴缸式 ●驅動方式=縱置馬達・傳動軸驅動4WD ●差速器=前後均為樹脂製4錐齒輪型 ●轉向=3段分割橫拉桿式 ●懸掛=4輪雙A臂 ●避震器=前後均為摩擦式 ●齒輪比=套件標準8.27:1(搭配另售的小齒輪,可選擇11.38:1〜7.28:1共10種齒輪比) ●馬達=540型 ●速度控制器=ESC規格(另售)
【模型要點】
- ★2024年SUPER GT GT500級別參戰、第3戰鈴鹿奪得亞軍的ENEOS X PRIME GR Supra,1/10電動RC組裝套件(TT-02底盤)。
- ★車身已噴塗分色:本體純橙色(Pure Orange)、車頂白色、車窗煙熏;輪拱切割與車身固定開孔已完成加工。
- ★引擎蓋紅色部分、車體後部金/銀/橙複雜圖案及尾翼面金色等注目拉花,以大型貼紙呈現。
- ★頭燈殼為黑色噴塗的獨立零件;下方兩片刀翼(Canard)為一體零件並以螺絲固定於車身;門鏡鏡面為聚碳酸酯獨立零件。
- ★車側重現稱為「Lateral Duct」的車門下部空力造型;車尾重現擴散器開口,尾燈以貼紙表現;鵝頸式支架與大型尾翼一體成形。
- ★槍灰色12輻輪圈+中空橡膠光頭胎;TT-02底盤10種齒輪比、軸距・車高・輪距各2種設定。
【A Vivid Livery That Steals the Show】
This is a 1/10 scale electric R/C assembly kit of the ENEOS X PRIME GR Supra — the car that contested the 2024 SUPER GT GT500 class in a vivid orange-based livery and finished second at Round 3 at Suzuka. Against the six GR Supras on the grid its colours stand out, and it draws just as much attention on an R/C circuit. The complex, aerodynamically sculpted form is realistically recreated in polycarbonate. The body is pre-painted: Pure Orange main colour, white roof and smoke-tinted windows, while the eye-catching graphics — the red bonnet section, the complex gold/silver/orange combination on the rear body and the gold wing surface — are supplied as large stickers. The wheel arches are cut and the body-mount holes drilled. The chassis is the touring-car staple, shaft-driven 4WD TT-02, fitted with 12-spoke wheels and slick tyres.
【Easy-to-Drive Shaft-Driven 4WD TT-02 Chassis with Tuning Fun】The shaft-driven 4WD TT-02 chassis features a well-balanced design — with the running battery mounted vertically on the left and the motor vertically on the right — for excellent driving stability, while suspension arms and uprights are shared between left and right for easy assembly, and the upper/lower split gearboxes ensure high maintainability. In addition, wheelbase, ride height and tread can each be selected from two settings via parts rearrangement, and the motor mount allows a wide selection of 10 gear ratios for plenty of tuning fun. The wheel hubs feature a brake-disc-inspired design, and the bumper is fitted with a bumper support evoking the full-size racing car. Gunmetal 12-spoke wheels are fitted with hollow rubber racing slick tyres.
【Basic Specifications】●Length 466mm, Width 188mm, Height 125mm ●Wheelbase 257mm ●Tyre Width/Diameter: 27/67mm front and rear ●Frame: Bathtub type ●Drivetrain: Vertically-mounted motor, shaft-driven 4WD ●Differentials: Resin 4-bevel type front and rear ●Steering: 3-piece split tie-rod type ●Suspension: 4-wheel double wishbone ●Dampers: Friction type front and rear ●Gear ratio: 8.27:1 kit standard (10 gear ratios from 11.38:1 to 7.28:1 selectable with separately sold pinions) ●Motor: Type 540 ●Speed controller: ESC specification (sold separately).
【Model Features】
- ★ The ENEOS X PRIME GR Supra of the 2024 SUPER GT GT500 class — second at Round 3, Suzuka — as a 1/10 electric R/C assembly kit on the TT-02 chassis.
- ★ Body pre-painted: Pure Orange main colour, white roof, smoke-tinted windows; wheel arches cut and body-mount holes drilled.
- ★ Standout graphics — red bonnet section, complex gold/silver/orange rear-body pattern and gold wing surface — supplied as large stickers.
- ★ Headlight cases are pre-painted black separate parts; the two lower canards are one-piece parts fixed with screws; mirror faces are separate polycarbonate parts.
- ★ The “lateral duct” aero shaping in the lower doors is reproduced, the rear diffuser opening is modelled and tail lights are stickers; the swan-neck mounts and large rear wing are a one-piece part.
- ★ Gunmetal 12-spoke wheels with hollow rubber slick tyres; TT-02 chassis with 10 gear ratios and two settings each for wheelbase, ride height and tread.
【圖片合集|ENEOS X PRIME GR Supra】Image Gallery

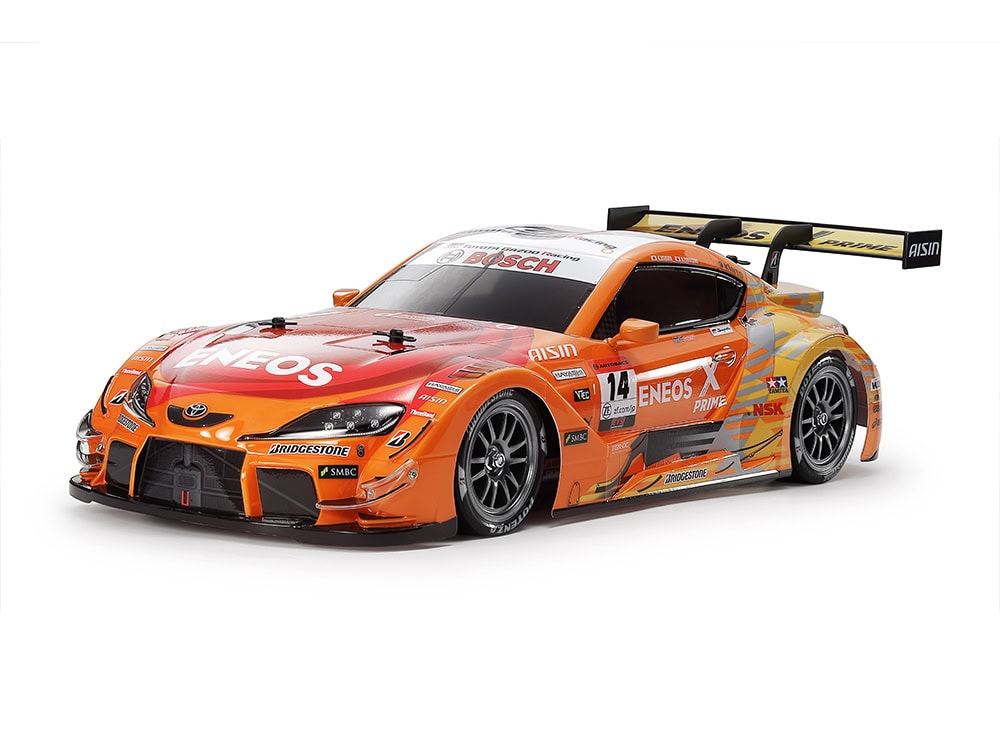

ENEOS X PRIME GR Supra(照片為組裝及噴塗完成的套件示例)
各部施以空力處理的賽車專有迫力造型,以聚碳酸酯充滿實感地重現
頭燈殼為黑色噴塗的獨立零件;下方兩片刀翼為一體零件、以螺絲固定於車身,收緊前臉表情
簡潔形狀的門鏡,鏡面以聚碳酸酯獨立零件構成
車身側面重現稱為「Lateral Duct」的車門下部空力造型
重現擴散器開口的車尾;尾燈以貼紙表現
鵝頸式支架與大型尾翼一體成形;翼面標誌等以貼紙呈現
槍灰色金屬的12輻輪圈,裝上中空橡膠製光頭胎
接頭部採用樹脂球頭連桿、動作順暢的轉向系統
輪轂以開槽碟盤煞車為意象
馬達蓋附可拆式冷卻風道(照片為拆下風道狀態)
配備摩擦避震器的雙A臂後懸吊【以下需另購】The Following Are Sold Separately
以下需另購(來源:日本田宮官網 tamiya.com / products/47514「別にお求めいただくもの」欄目)。本產品速度控制器(ESC)規格為另售,ESC包含於下方 Finespec 2.4G 電動RC驅動套裝之中。
- ★Finespec 2.4G 電動RC驅動套裝(Finespec 2.4G 電動RCドライブセット)
- ★發射機用AA電池×4
| 重量 | 4 公斤 |
|---|---|
| 遙控車底盤 | TT-02 |
| 品牌 | Toyota |
| 電變配置(ESC) | 已包含電變(ESC) |
