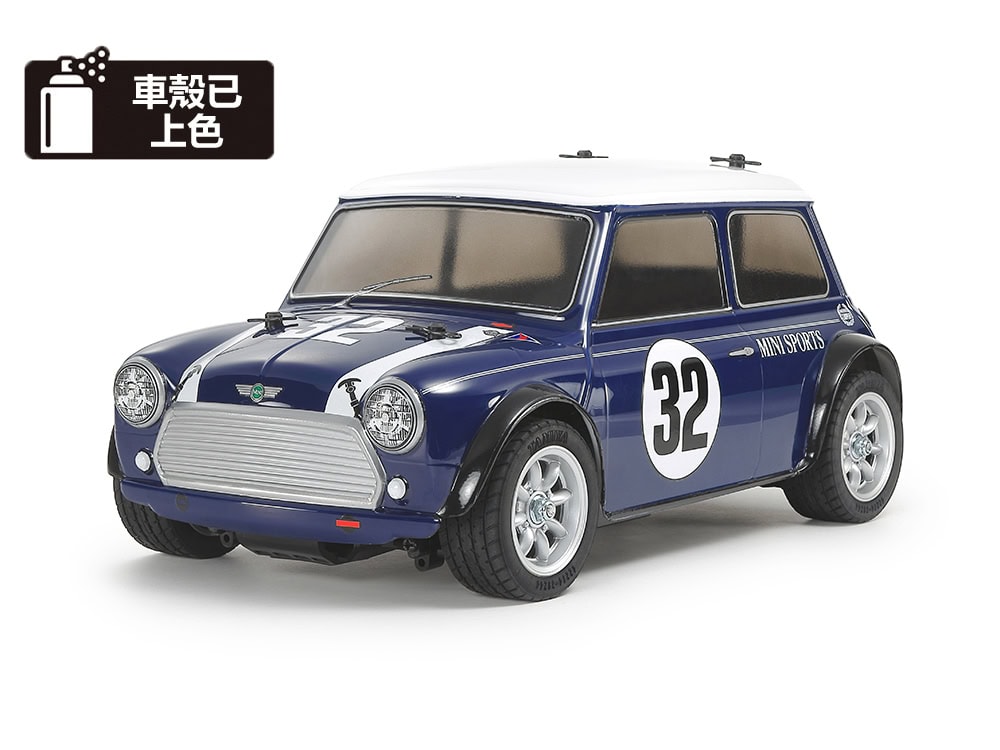

Tamiya 47515 1/10 RC Mini Cooper Racing (Blue Painted Body) (MB-01 Chassis)

田宮 47515 1/10 RC遙控車 迷你 Mini Cooper Racing (藍色已上色車殼) (MB-01底盤)

Tamiya welcomes this limited edition version of Item 58747 1/10 R/C Mini Cooper Racing (MB-01) (short wheelbase and front motor / front wheel drive (FF)) with the polycarbonate body pre-painted in Blue (PS4) with White (PS-1) roof and Smoke (PS-31) windows, with pre-cut wheel arches and pre-made body mount holes, which is great for not only beginners but also R/C veterans.

【Small, well-known car that’s fun to drive】

About 5.3 million units of the Mini were produced from 1959 until 2000 – remarkably without major model changes – and this legendary little car even achieved second place in the Car of the Century award for the best cars of the 20th century. Its front-wheel drive layout was rare for its time, and it featured ergonomic body structure with compact mechanics and maximum interior space, as well as frisky performance. In 1961, the sporty Mini Cooper joined the line-up and with great racing success, the car gained even greater popularity around the world. This assembly kit creates a radio control model assembly kit depicting the car, with stickers included for the bonnet stripes, body-side pinstripes and racing numbers. 8-spoke wheels are paired with 60D radial tires.

【MB-01 chassis】

The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

【2種驅動形式 × 3種軸距的MB-01底盤】

MB-01底盤提供前輪驅動和後輪驅動兩種驅動方式，同時可以再搭配3種不同的軸距，是一種多目的多功能的2WD緊湊形底盤。除了田宮遙控車一貫的輕鬆快捷的操作感之外，更可以選擇組成與實車同樣的驅動規格。底盤設計成前後左右對稱，並配上裝備摩擦式避震器的4輪獨立雙橫臂懸架系統。除此之外，「單元化摩打座」﹑「單元化終傳齒輪座」﹑「單元化懸架」等各種單元化構造亦為MB-01底盤帶來優秀的維護性。無須裝拆電池﹑摩打和裝有遙控裝置的中央底架，只需要把齒輪箱和轉向橋部分的方向倒轉，即可以由前輪驅動轉變為後輪驅動。後輪驅動時更可以選擇高或低兩種摩打安裝位置，令操作感有更大變化。

【Specifications】

• Length: 315mm, width: 167mm, height: 140mm
• Wheelbase: 210mm (Short)
• Tread: 140mm (front & rear)
• Tire width/diameter: 25/59mm (front and rear)
• Bathtub type chassis
• Front-wheel drive
• 4-bevel differential gear
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Friction dampers
• Gear ratio = 5.83:1 (using kit 29T pinion)
• Type 540 motor
• ESC included.

【基本規格】

• 全長 315mm, 闊 167mm, 高 140mm
• 軸距 210mm (短)
• 輪距 140mm (前&後)
• 輪胎闊 25mm / 直徑 59mm (前&後)
• 浴缸型底架
• 差速器：4錐齒輪型
• 轉向裝置：3分割鬆緊扣式
• 懸架系統：4輪雙橫臂懸架式
• 避震系統：摩擦式
• 齒輪比：標準配置5.83:1 (29T 摩打齒輪)
• 摩打：540型
• 速度控制：ESC電子變速器形式 (已附)

【Separately Required Items】

• 2-channel R/C system
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
