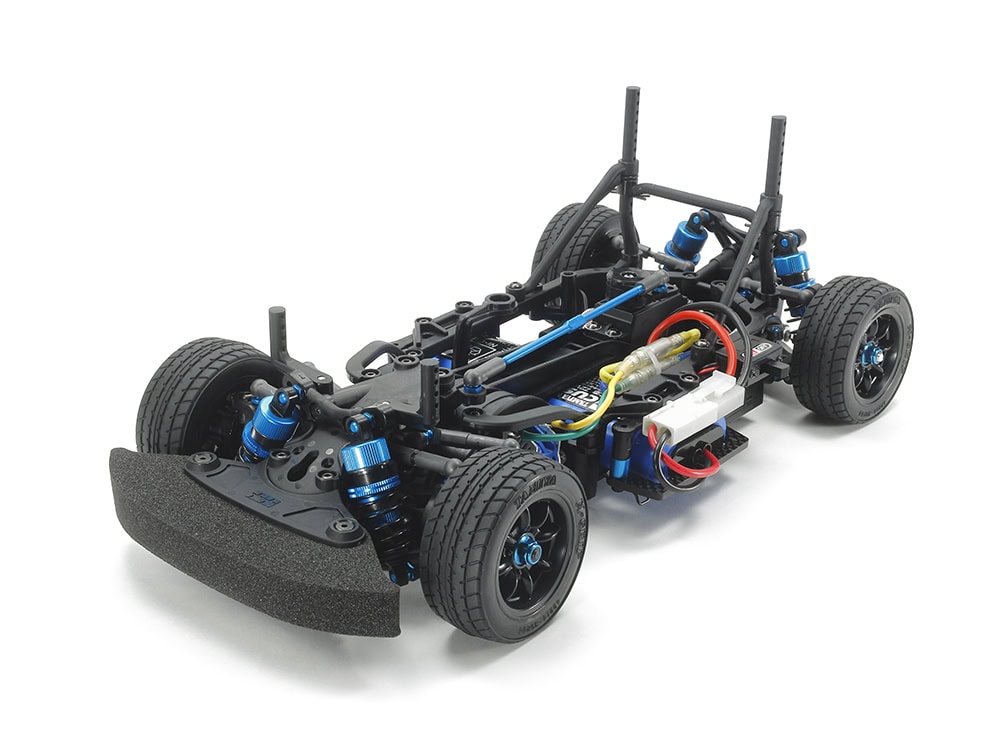

Tamiya 47520 1/10 RC M-07R Chassis Kit

田宮 47520 1/10 RC遙控車 M-07R 底盤套件

【The Hopped-Up M-07R】

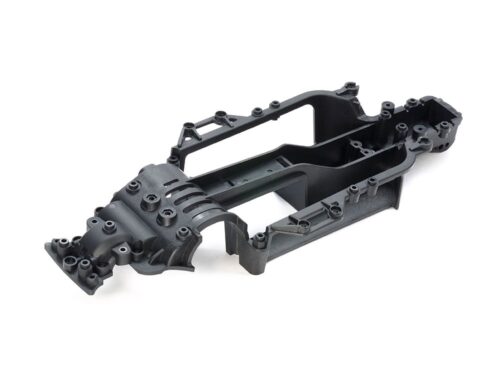

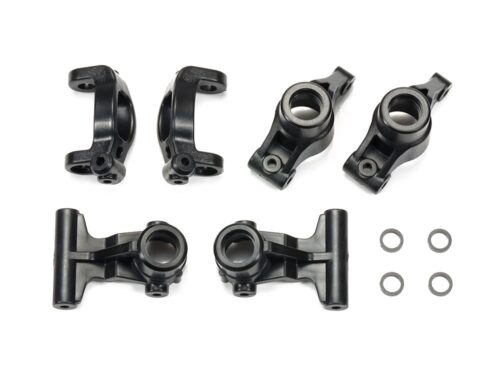

This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fiber battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer. The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminum cup joints, hard coated aluminum pinion gear and more.

※This chassis kit was previously sold as Item 84436 from 2019 until 2020

【Specifications】

• Length: 332mm (including bumper) Width: 164mm
• Wheelbase: 225mm or 239mm (Selectable)
• Monocoque Frame
• Front-Midship Motor, Front-Wheel Drive
• Oil-Filled Gear Differential
• 3-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• TRF Special Dampers
• Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 – 4.81:1 available with separately sold pinion gears)
• Requires an Electronic Speed Controller (sold separately)

【Separately Required Items】

• 2-channel R/C system w/ESC
• Type 540 motor
• Tires & Wheels
• Body
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置 & ESC電子變速器
• 540型摩打(推薦無刷摩打)
• 輪胎及輪圈
• 車殼
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
