田宮 56373 1/14 RC遙控貨櫃車 斯堪尼亞 770 S 6×4 (銀色版)
【Top-Grade Scania】
This R/C model assembly kit recreates the Scania 770 S 6×4, a double rear-axle drive trailer head equipped with a 16.4-liter V8 diesel turbo engine capable of 770hp added in 2020 to the Swedish manufacturer Scania’s top-grade S Series. The kit features a highly realistic body, plus a working chassis with numerous metal parts, and a transmission that can be operated via transmitter.
【Pre-Painted Body】

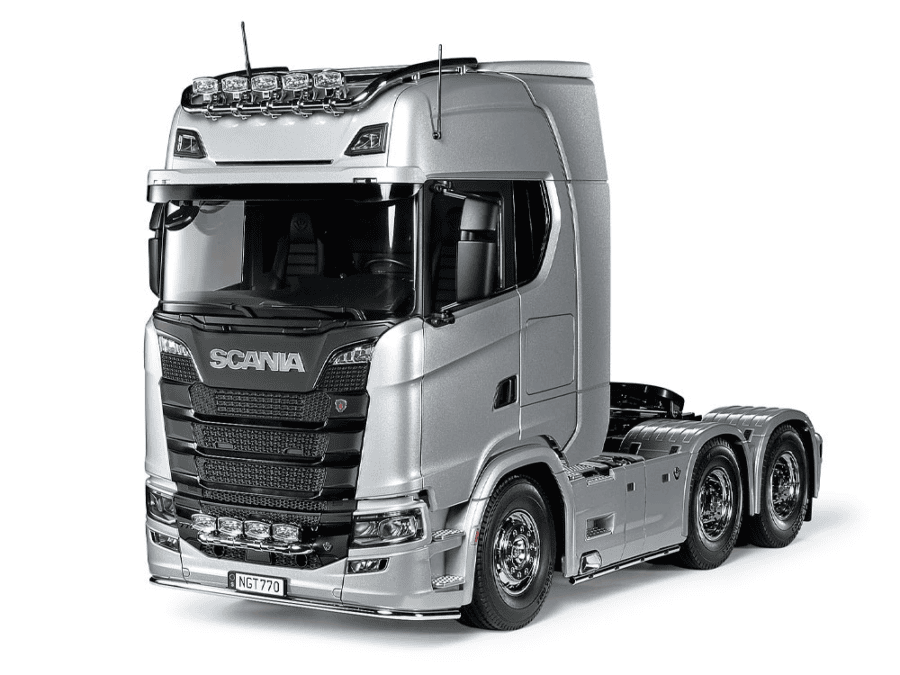

Cab, roof, spoiler, bumpers, side guards, front fenders and more have been painted in a stunning silver tone and given a clear topcoat. With that job off of the table, assemble the parts, brush paint areas such as window frames, and the body will be ready to put on your model.
【Specifications】
- Overall weight = approx. 4.0kg (with RC mechanism and battery installed)
- Wheelbase = 237+103mm
- Tread = 155mm front, 138mm rear (double tire tread)
- Chassis shape = (aluminum + polycarbonate resin) ladder frame Suspension = Leaf rigid front and rear
- Caster angle = 0°/ 0° front and rear
- Camber angle = 0° front and rear
- Toe angle = 0°
- Dampers = Aluminum dummy dampers front and rear
- Drive train = Rear wheel 2-axle drive
- Transmission = 3-stage, always engaged Gear ratio = 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
- Diff gearing = 3-bevel diff
- Motor = RS540 type
- Tire width/diameter = Front: 30/85mm, Rear: 22/83mm
【Separately Required Items】
- 4-channel R/C system
- ESC or Multi Function Control Unit (MFC)
- Servo motor for steering
- Servo motor for transmission
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
【以下需另購】
- 4ch 遙控裝置
- ESC電子變速器 或 多功能控制裝置(MFC)
- 轉向用伺服摩打
- 換檔用伺服摩打
- 發訊器用AA電池
- 遙控車用充電池及充電器
