Small yet perfectly formed

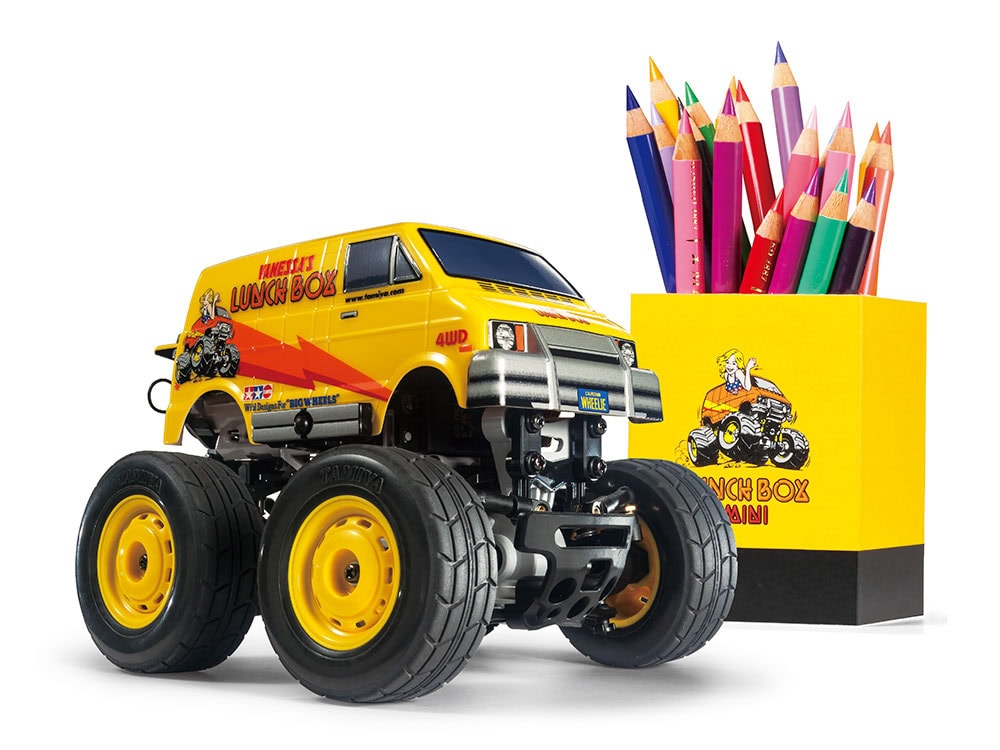

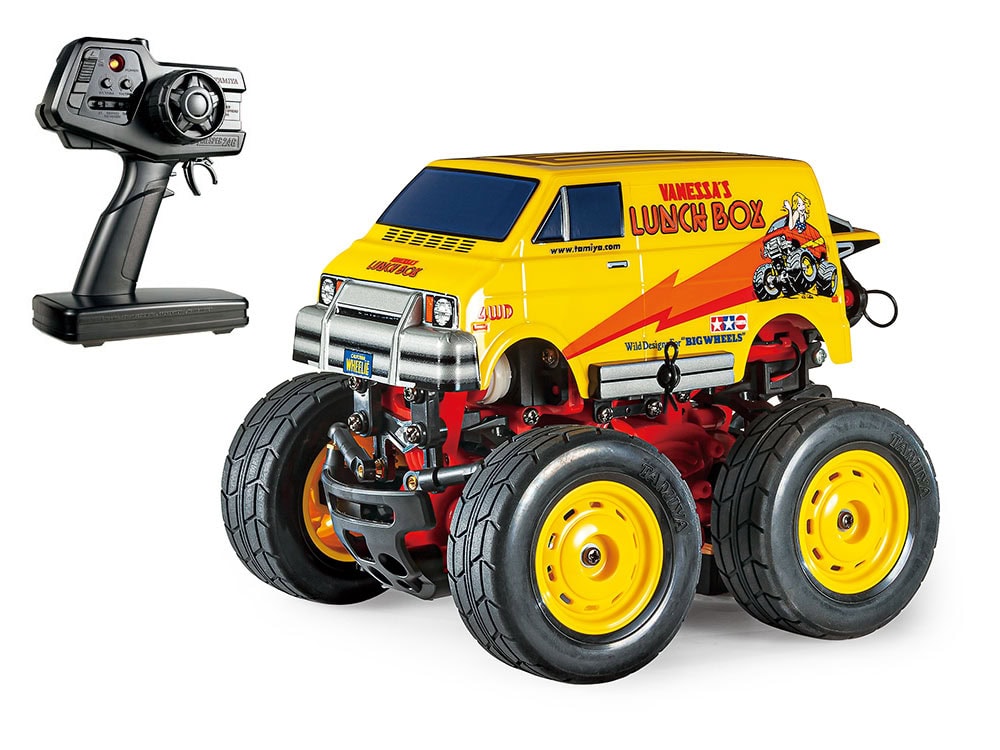

The Lunch Box is a famous name in Tamiya R/C and Mini 4WD, delighting many a hobbyist over the years. Now, it is here in brand new mini 1/24 form, as a fascinating R/C model assembly kit! While extremely compact, it is endowed with excellent mechanical design: gear driven 4WD, strut suspension and more!
SW-01: Super-Compact 4WD

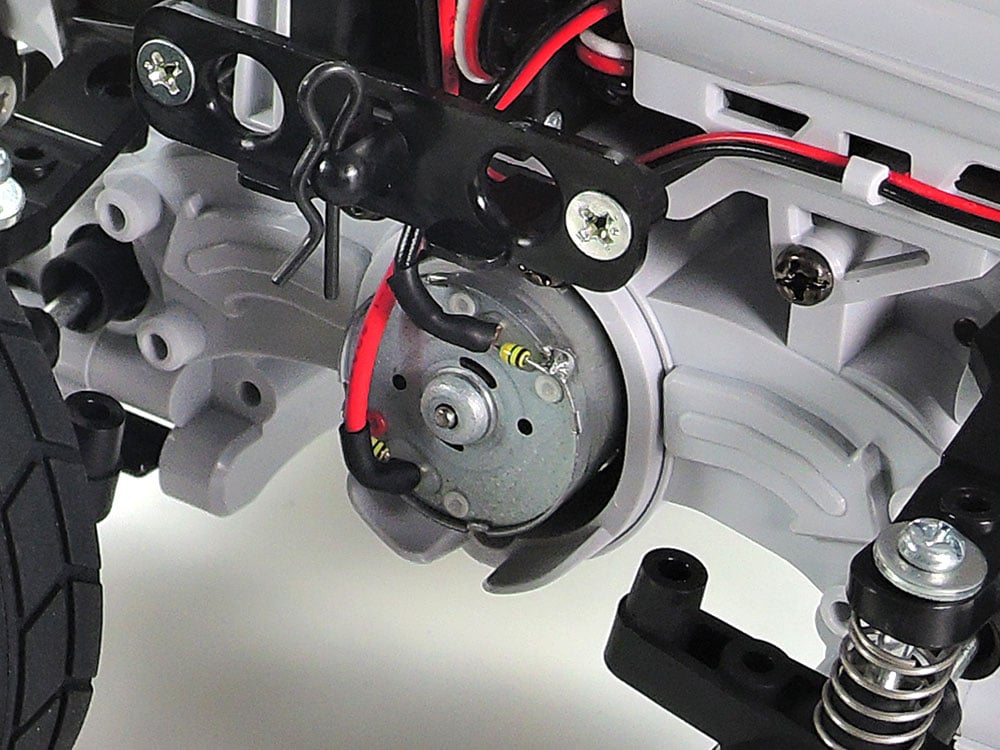

190mm long and 150mm wide, the SW-01 is a compact, highly fun 4WD chassis. A Type 370 motor is central in the slim monocoque frame, with gears transmitting its output to the front and rear of the model, where 70mm tires translate it into a powerful drive. The chassis power source is mounted in the top section to allow wild wheelies under acceleration. Strut type 4-wheel independent coil sprung suspension utilizes single piece upper arms to link left and right wheel steering motion, helping suppress roll during turns, and together with front and rear differentials realize a tight turning circle.

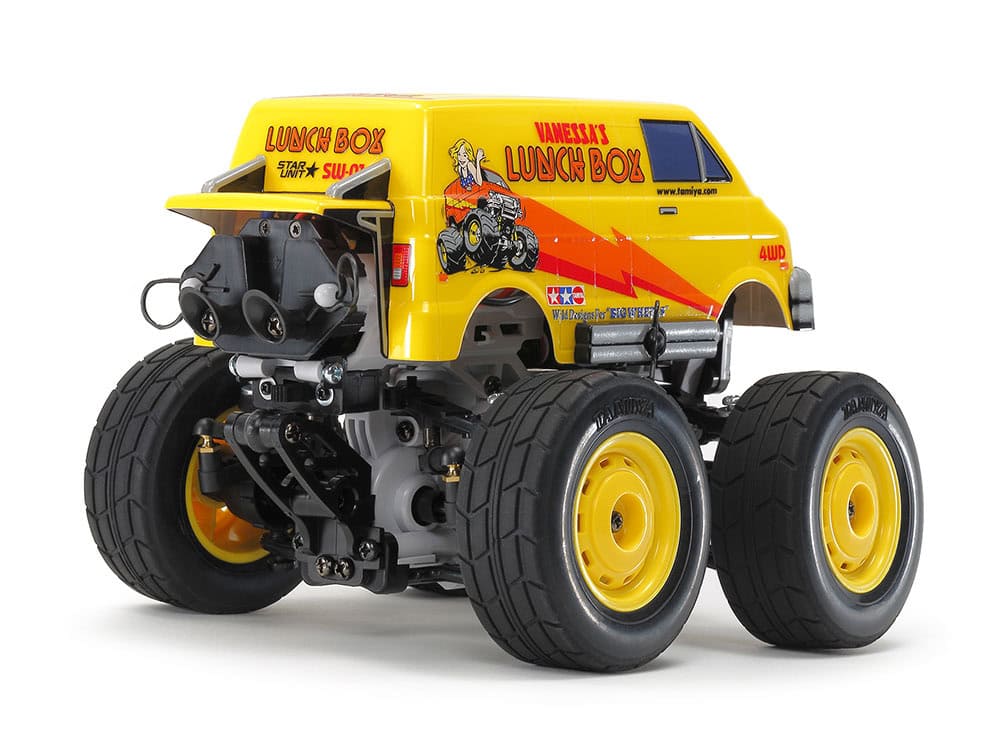

★The model’s power source is mounted on the top of the chassis, assisting with super exciting wheelies! |

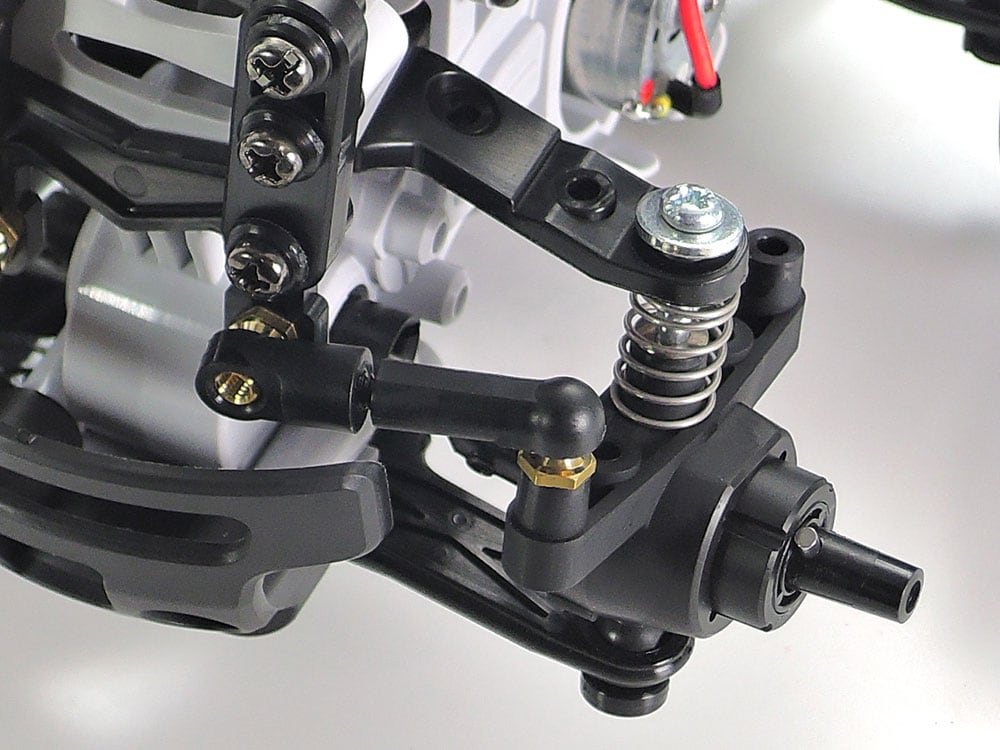

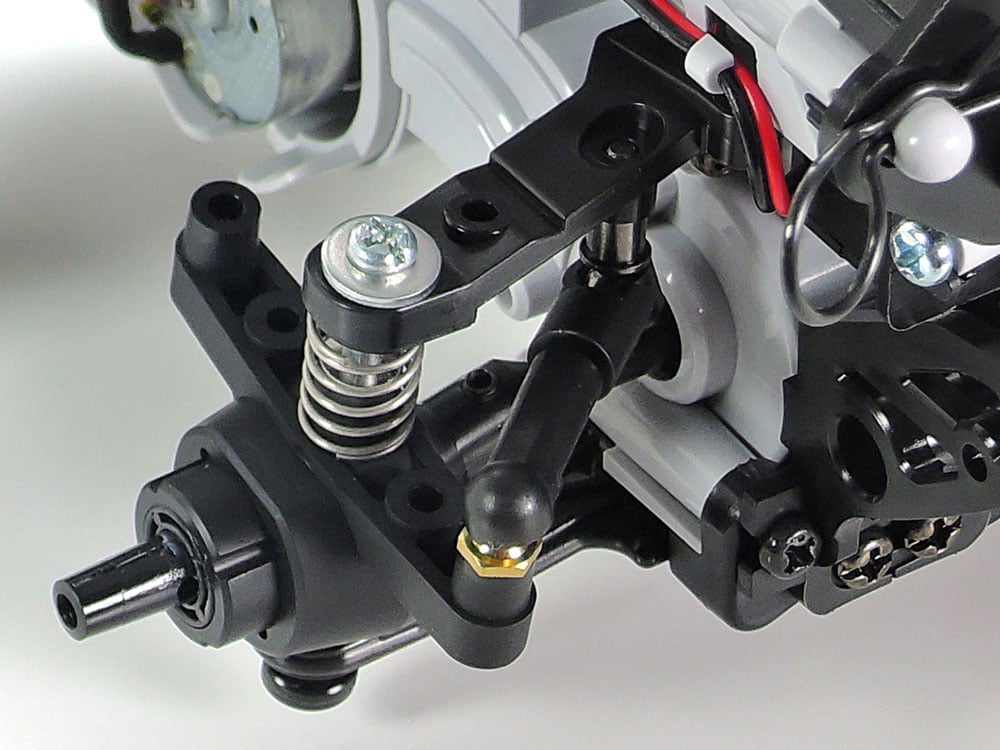

★A close-up of the steering. The one-piece front upper arm is attached to the steering linkage for lean. |
★Attach the separately sold?Item 54898 SW-01 Upper Arm Connectors?to enjoy crazy steered wheelies! |
Specifications ★Length: 190mm, Width: 150mm, Height: 140mm ★Wheelbase: 92mm ★Tread: 122mm (Front/Rear) ★Tire Width/Diameter: 28/70mm (Front/Rear) ★Monocoque Frame ★Gear-Driven 4WD ★Planetary Gear Differentials ★3-Piece Steering Tie-Rod ★Suspension: MacPherson Strut ★Gear Ratio = 21.88:1 ★Type 370 Motor? |
Separately Required Items ★R6/AA/UM3 batteries for transmitter ★Power source |
