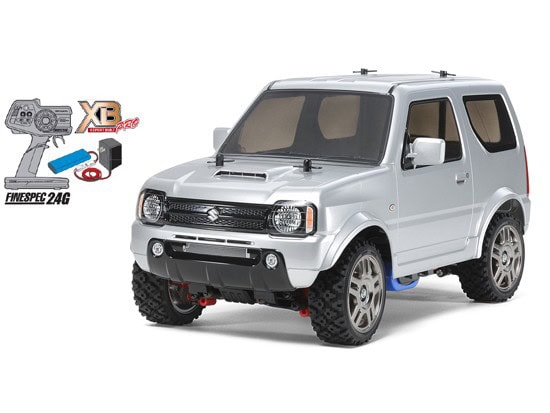

Name: Tamiya 57888 1/10 XB Suzuki Jimny (JB23) (MF-01X Chassis)
SKU: TA 57888
Availability: OutOfStock

描述

The Compact 4WD Model Ready to Steal Your Heart
The JB23 is a variant of the Suzuki Jimny, long-selling 4WD model in the Japanese ‘kei’ class of small cars. Released to coincide with new ‘kei’ regulations effective October 1998, it inherited the Jimny’s trademark tough ladder frame and rigid suspension setup, combining it with a new rounded body. This factory finished R/C model accurately captures the JB23 form with a durable pre-painted silver polycarbonate body plus side mirrors, with stickers applied depicting front grille and lights.

★Left: Power from the rear mounted motor is transmitted via gear to the rear wheels, and propeller shaft to the front differential.
★Right: Smooth damping is provided by the 4-wheel independent double wishbone suspension in tandem with friction dampers.

★Left: The monocoque frame is divided into 3 pieces. Change the central spacer block and fit a separately-sold prop shaft for S (210mm), M (225mm) or L (239mm) wheelbases.

★Right: Rally Block tires are supplied with the kit, to give the model excellent grip and performance on flat dirt surfaces.

MF-01X – Compact 4WD At Home on a Range of Surfaces
Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Rally Block tires with width/diameter of 27/69mm are also included.

2.4GHz Transmitter Included
In addition to the painted body, this item also includes a wheel-type transmitter, battery pack and charger to allow instant enjoyment of driving. (*Battery pack and charger are included for Japan market only.) The 2.4GHz transmitter eliminates the need for frequency crystals, and is factory-paired with the receiver in the model to ensure that the receiver communicates with that transmitter only. Transmitter features detachable grip covers to match your hand size as well as a throttle trigger cover to increase the size of the throttle trigger for easier operation.

Specifications
★Length: 347mm, Width: 170mm, Height: 215mm ★Wheelbase: 225mm (M) ★Tire Width/Diameter (Front & Rear): 27/69mm ★Tread (Front & Rear): 138mm ★Monocoque Frame ★Shaft-Driven 4WD ★3-Bevel Differential Gears ★3-Piece Steering Tie-Rod ★4-Wheel Double Wishbone Suspension ★Front & Rear Friction Dampers ★Gear Ratio = 9.5:1 ★Type 540 Motor ★Electronic Speed Controller (Forward/Reverse Type)

Separately Required Items
●R6/AA/UM3 batteries for transmitter

額外資訊

重量	8 公斤
品牌	Suzuki
遙控車底盤	MF-01X
