Name: Tamiya 58548 1/10 R/C Subaru BRZ R&D Sport (TA06 Chassis)
SKU: TA 58548
Availability: OutOfStock

描述

GT1-Spec BRZ
This is an R/C assembly kit of the Subaru BRZ R&D Sport which entered the GT300 class during the 2012 Super GT season and even took 4th place in the Autopolis GT, the seventh race of the season. The polycarbonate body reproduces the car’s aggressive, low form with wide front and rear fenders, the rear diffuser and a large rear wing. The model boasts advanced aerodynamics. Side mirrors depicted with separate parts for enhanced realism. The car numbers, sponsor markings and logos can be depicted with included stickers.

Dual-Drive 4WD System

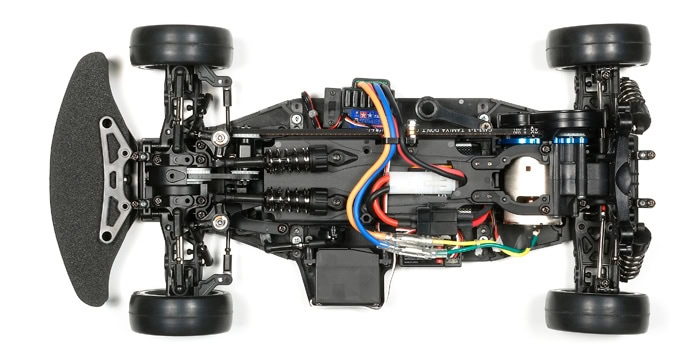

The 4WD TA06 chassis features an excellent balance and its layout positions the motor and battery pack along the centerline of the chassis. It is powered via a distinctive Dual-Drive System with belt-driven front and gear-driven rear wheels. 4-wheel double wishbone suspension features a refined Inboard Front Suspension setup with short reversible suspension arms. The front and rear gearboxes are both equipped with gear differential units to provide superb traction and acceleration. In addition, it comes equipped with 24mm width racing slick tires mounted on mesh wheels.

Refined Inboard Front Suspension setup has been optimized for short reversible suspension arms.

Belt-driven front wheels. Front dampers are positioned longitudinally to enable narrow chassis layout.

Gear-driven rear wheels. Motor is positioned along the centerline of the chassis for optimum balance.

Reversible rear suspension arms. Choose from two rear upper arm attachment positions.

Aluminum motor plate ensures precision motor attachment. Spur gear is equipped with dust cover.

Belt tensioner also serves as a cable holder to prevent contact with drive belt.

Front/rear gearboxes are equipped with gear diff units, the settings of which can be fine-tuned by using oils of different viscosities.

Battery pack is positioned longitundinally. Battery hatch is secured with 4 screws which help increase chassis rigidity.

Standard outboard suspension setup is also possible with kit-included damper stay parts.

Specifications
●Length: 431mm, Width: 190mm, Height: 125mm ●Wheelbase: 257mm ●Tread (F/R): 165mm ●Monocoque Frame Chassis　 ●Front Belt-Driven and Rear Gear-Driven 4WD ●F/R Gear Differential Units ●3-Piece Steering Tie-Rod ●4-Wheel Double Wishbone Suspension ●CVA Shock Units　●Gear Ratio＝6.41:1 (when used with 68T spur and 23T pinion gears) ●Full Ball Bearings ●Motor not included ●Requires an Electronic Speed Controller (sold separately)

Separately Required Items
●2-Channel R/C Units with ESC　●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter　●Motor

額外資訊

重量	2.5 公斤
品牌	Subaru
遙控車底盤	TA06
