Name: Tamiya 58609 1/10 R/C Mercedes-Benz Unimog 425 (CC-01 Chassis)
SKU: TA 58609
Availability: OutOfStock

描述

The 425 – It’s No Square

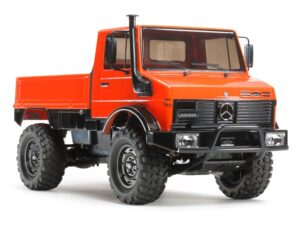

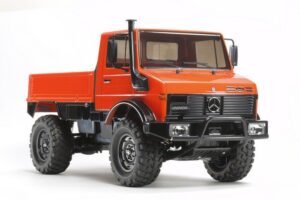

This is an R/C model assembly kit of the multi-purpose 425, a vehicle in the famed and long-running Mercedes-Benz Unimog series. The polycarbonate body captures with great accuracy the squared lines of the 425, including the boxy cabin and square headlights. This kit also includes separate parts to depict side mirrors and snorkel, plus metal-plated parts capturing the light cases and emblems with aplomb. The all-terrain CC-01 chassis is a perfect choice to accompany this rugged all-rounder, and is matched with block tires for great performance on- and off-road.

The All-Terrain CC-01 Chassis
The CC-01’s highly reliable and efficient full-time 4WD system features a longitudinally-positioned motor, which transmits power to the front wheels via the gearbox and to the rear wheels via propeller shaft. Front and rear differentials enable smooth cornering, and for even greater off-road performance on rough terrain, the rear differential may be locked during assembly. The chassis suspension employs double-wishbone front upper single links and lower H-shaped arms plus rear rigid suspension. With four CVA oil dampers in total fitted to the front and rear, there’s enough cushion to take on even the roughest surfaces. It also looks the part, with cool black dish-type wheels, plus 94mm-diameter block tread pattern tires.

★Metal-plated headlight cases (usable with separately-sold LEDs) and emblem.

★Side mirrors and snorkel recreated accurately using separate parts.

★Rear light cases allow depiction of taillights via separately-sold LEDs.

★Left: Double-wishbone front suspension utilizes CVA oil dampers.

★Right: Power is transmitted to the model’s rear wheels via propeller shaft.

Specifications
●Length: 419mm ●Width: 196mm ●Height: 227mm ●Wheelbase: 242mm ●Tread (F/R): 163mm ●Tire Width/Diameter (Front & Rear): 36/94mm ●Ladder Frame Bathtub Type Chassis ●Longitudinally-Placed Motor & Shaft-Driven Full-Time 4WD ●Front and Rear 3-Bevel Differential Gears ●Front Suspension: Double Wishbone ●Rear Suspension: 4-Link Rigid ●Front and Rear CVA Oil Dampers ●Gear Ratio = 1:14.67 ●Requires an Electronic Speed Controller (sold separately) ●Type 540 Motor included

Separately Required Items
●2-Channel R/C System w/ESC ●R6/AA/UM3 batteries for transmitter ●Battery Pack & Charger

額外資訊

重量	5.5 公斤
尺寸	59.5 × 40 × 16.5 公分
品牌	Mercedes-Benz
遙控車底盤	CC-01
