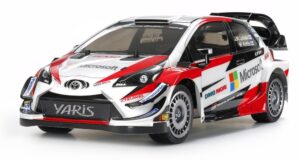

Tamiya 58659 1/10 R/C TOYOTA Gazoo Racing WRT/Yaris WRC (TT-02 Chassis)

描述

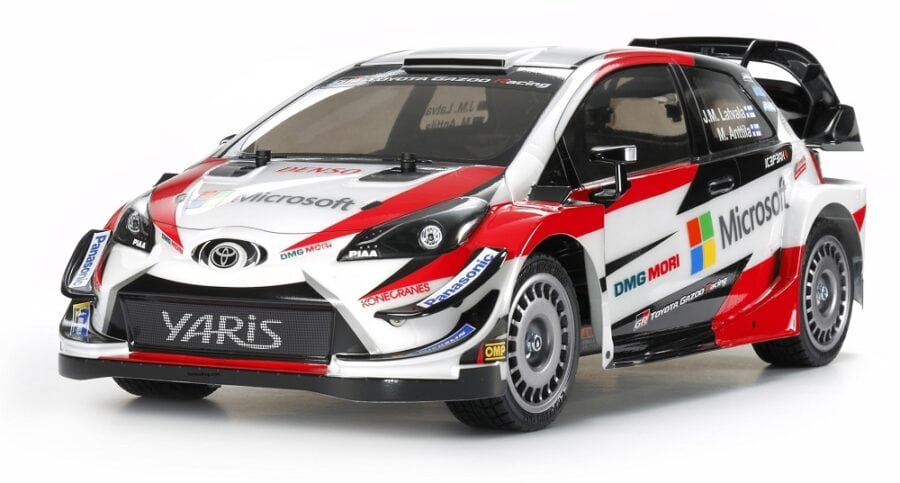

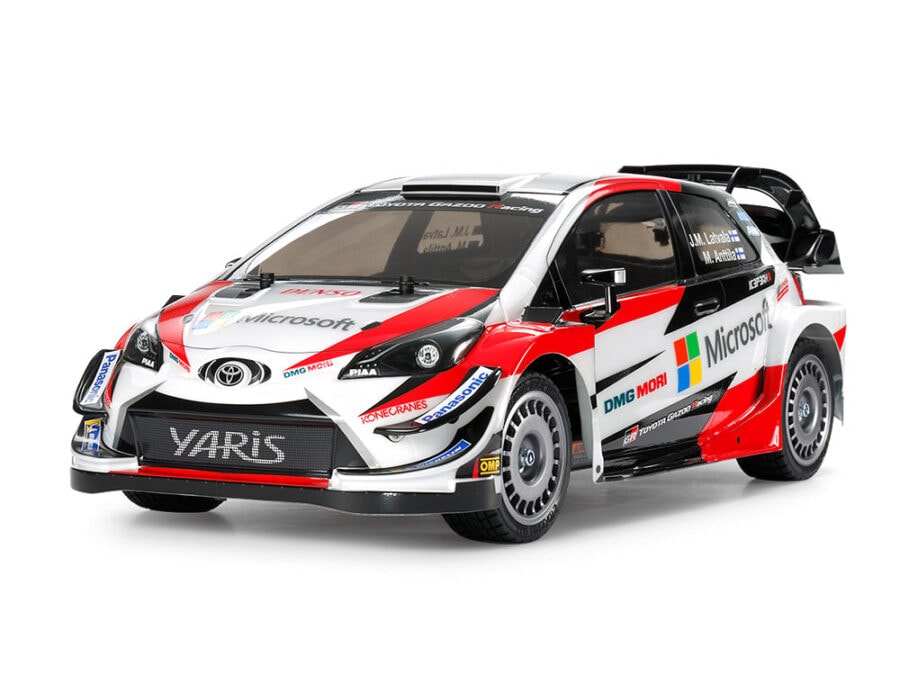

A 2018 Rally Star
Developed to race in the WRC, the car boasts a 380PS, 1.6-liter 4-cylinder turbo engine and 4-wheel drive with active center differential. Thanks to features such as a 2-level wing, diffuser, front canards and prominent fenders, the aerodynamically honed body really catches the eye. This R/C model assembly kit features a lightweight polycarbonate body with multiple polycarbonate and plastic parts; stickers are included in the kit to recreate the red and black sections of the livery, as well as the numerous markings on the car.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color dish wheels and tread-pattern tires make for a racy finish.

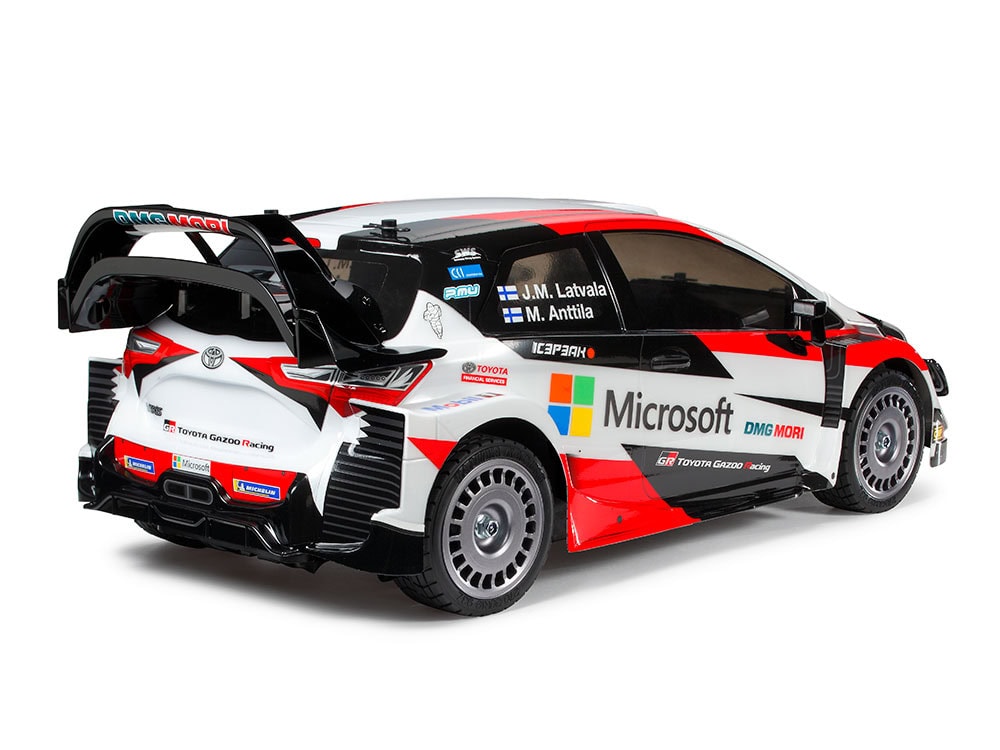

★The complex 2-level rear wing is recreated using separate top and bottom sections for a realistic finish.

★Gearbox cover can be removed simply with the loosening of screws on the frame.

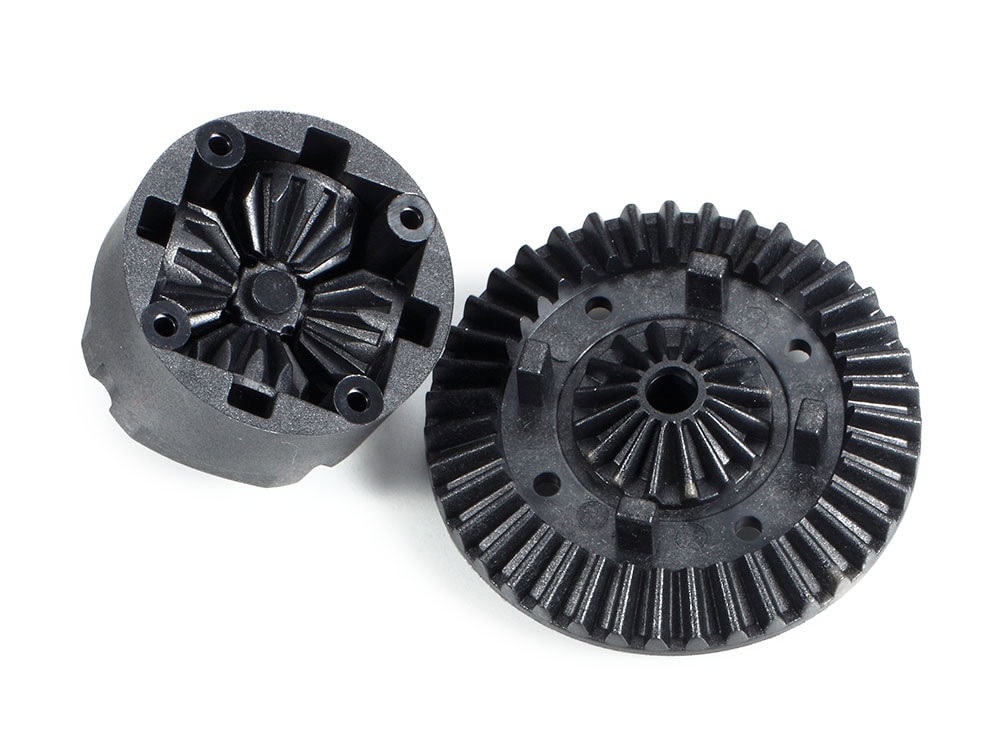

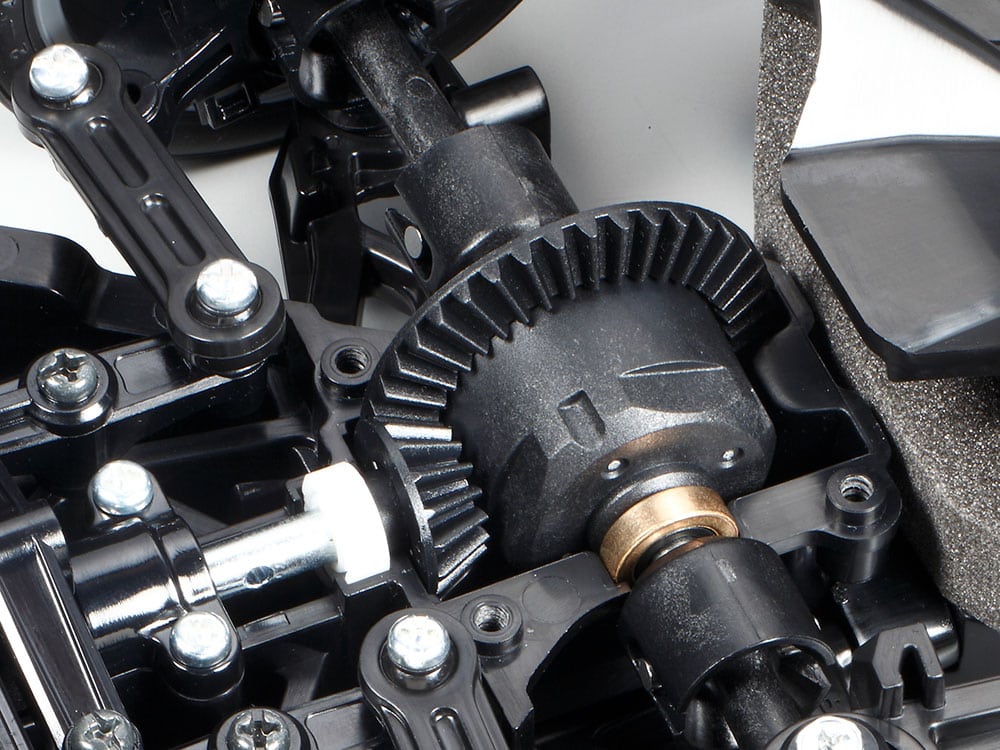

★Molded 4-bevel differential gears ensure that the model offers smooth drive and cornering.

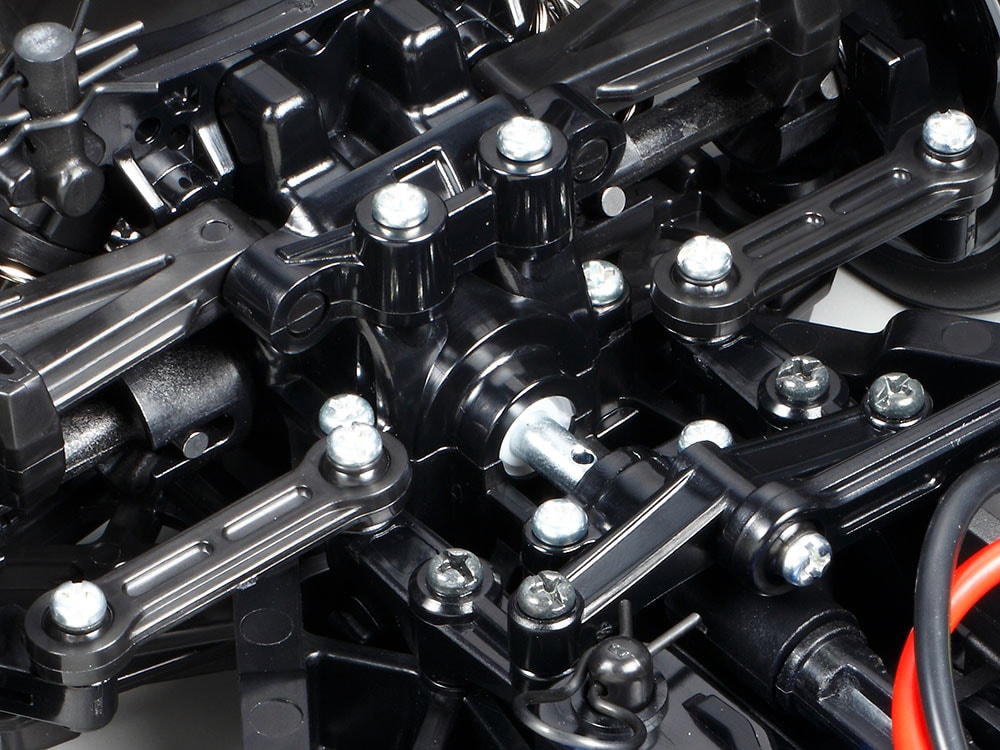

★Resin ball links in the steering linkage joints make for smooth, comfortable motion.

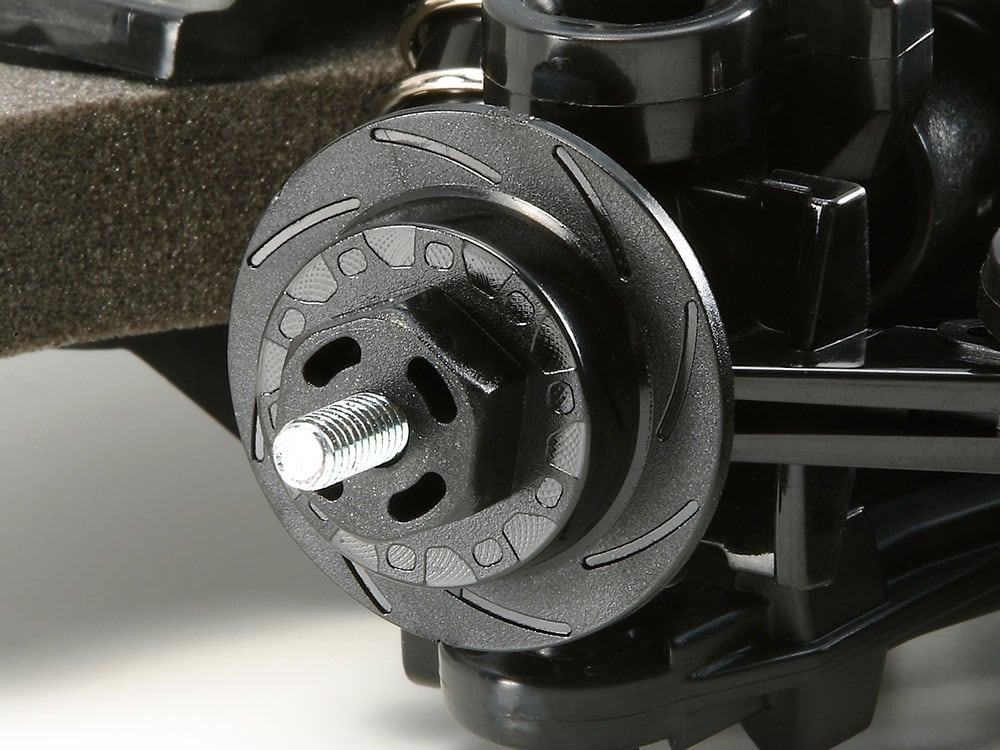

★Wheel hubs are designed to look like brake discs for a realistic and stylish appearance.

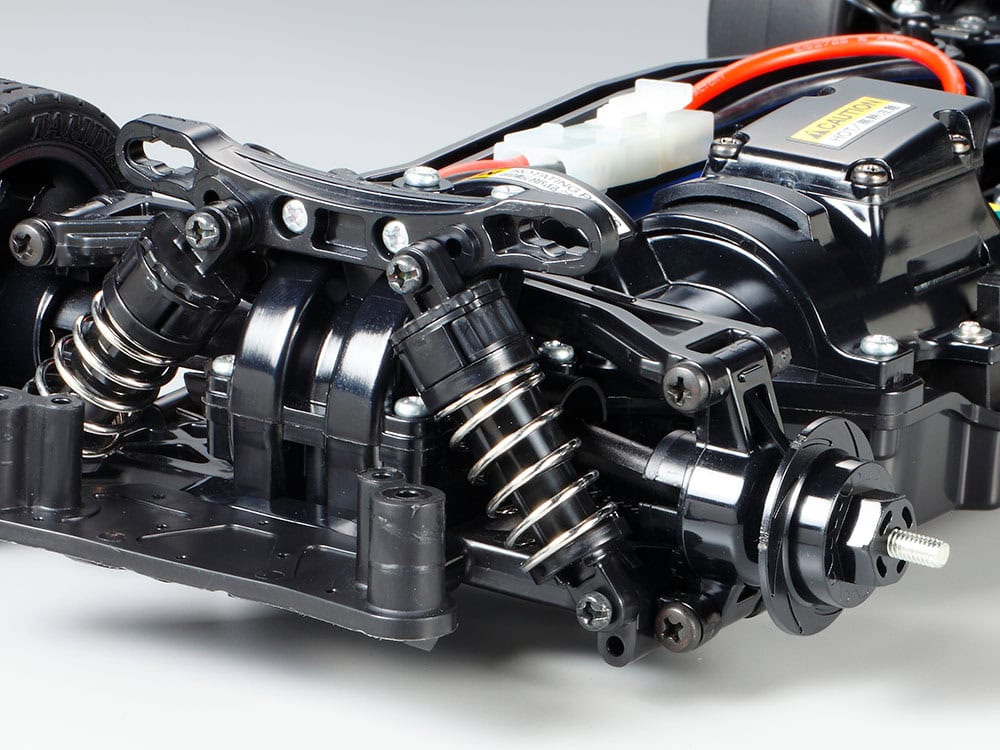

★4-wheel double wishbone suspension utilizes friction dampers for a controllable ride.

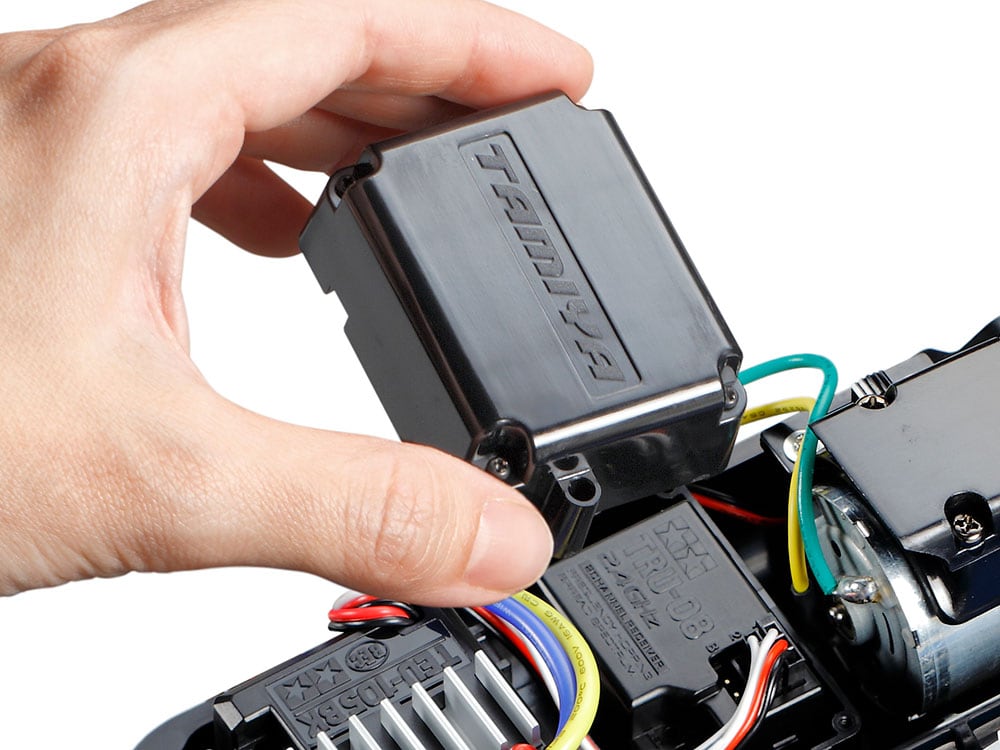

★Left: A case is included to keep the all-important receiver protected from dust and dirt.

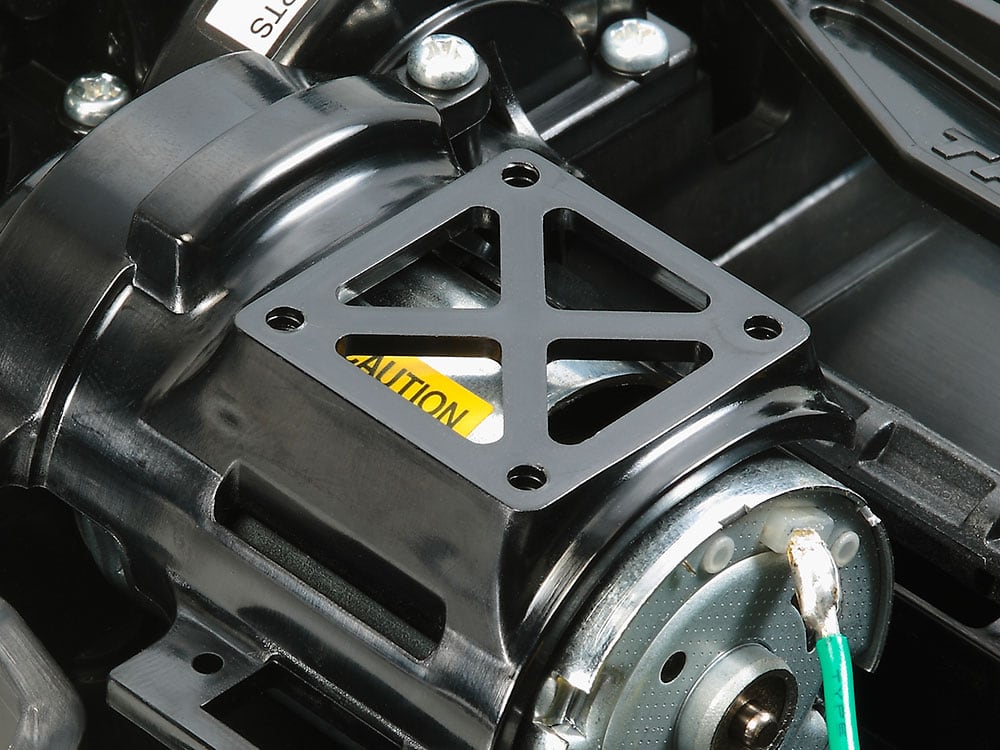

★Right: Motor cover includes removable cooling duct (not attached in above image).

Specifications
★Length: 416mm, Width: 188mm, Height: 146mm ★Wheelbase: 257mm　★Tire Width/Diameter: 27/67mm (Front & Rear) ★Bathtub-type Frame ★Shaft-Driven 4WD ★Front/Rear 4-Bevel Resin Differentials ★3-Piece Steering Tie-Rod ★4-Wheel Double Wishbone Suspension ★Front/Rear Friction Dampers ★Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 Motor ★Electronic Speed Controller (ESC) is sold separately.

Separately Required Items
★2-Channel R/C Unit with ESC ★Battery Pack & Charger ★R6/AA/UM3 batteries for transmitter

額外資訊

重量	4 公斤
尺寸	51 × 25 × 17.5 公分
品牌	Toyota
遙控車底盤	TT-02
