Tamiya 58660 1/18 R/C Dynahead 6×6 (G6-01TR)

田宮 58660 1/18 RC遙控車 Dynahead 6×6 (G6-01TR底盤)

Happy Trials…

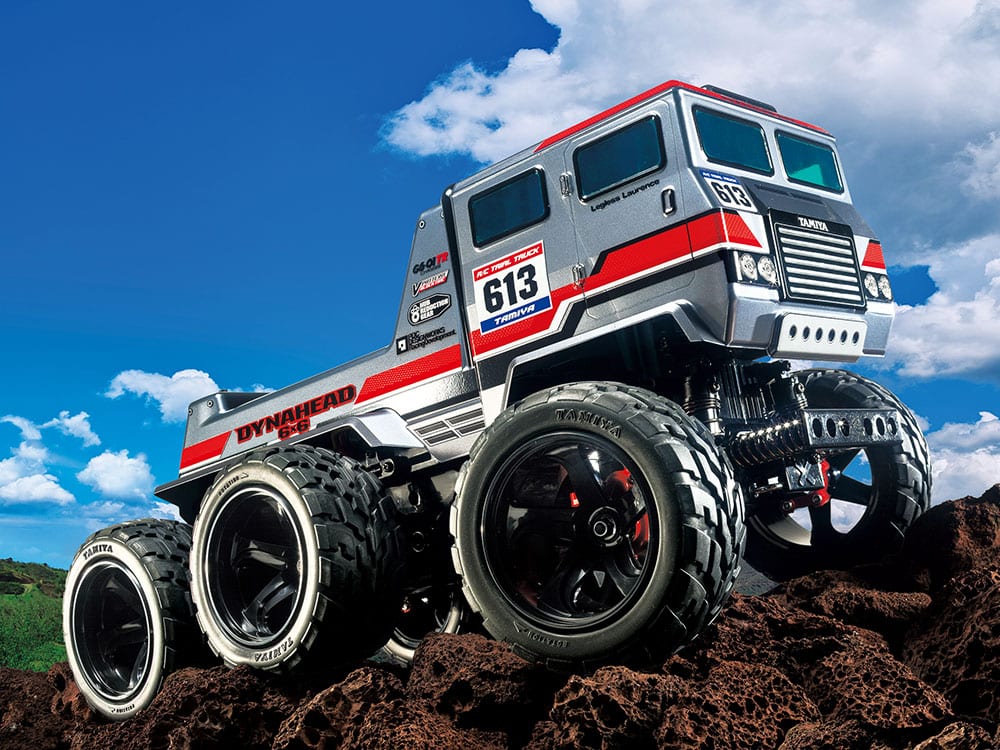

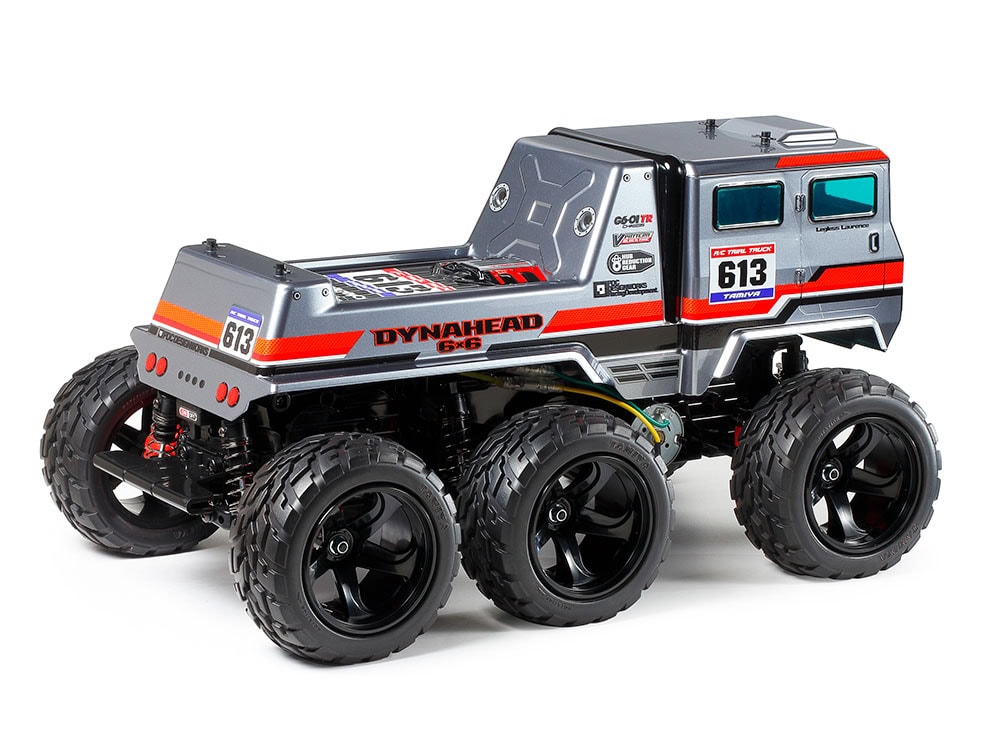

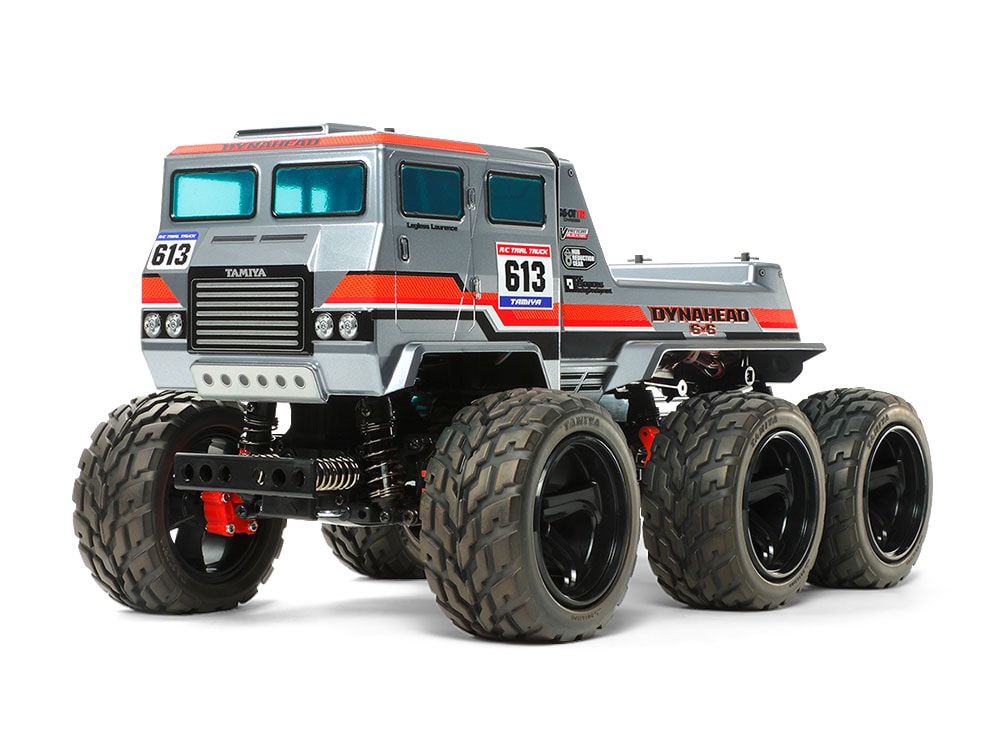

This R/C model assembly kit creates the Dynahead 6×6. Its polycarbonate body is inspired by a cabover trial trucks particularly popular on the European scene, and designed by Takayuki Yamazaki. The boxy design features rear-hinged door motifs and has a wild look perfectly suited to the off-road. The model is based upon the 6-wheel drive G6-01TR, which offers extreme performance on tough surfaces, and thanks to its long wheelbase can even negotiate slopes of up to 40 degrees.

G6-01TR Chassis: Immense Traction

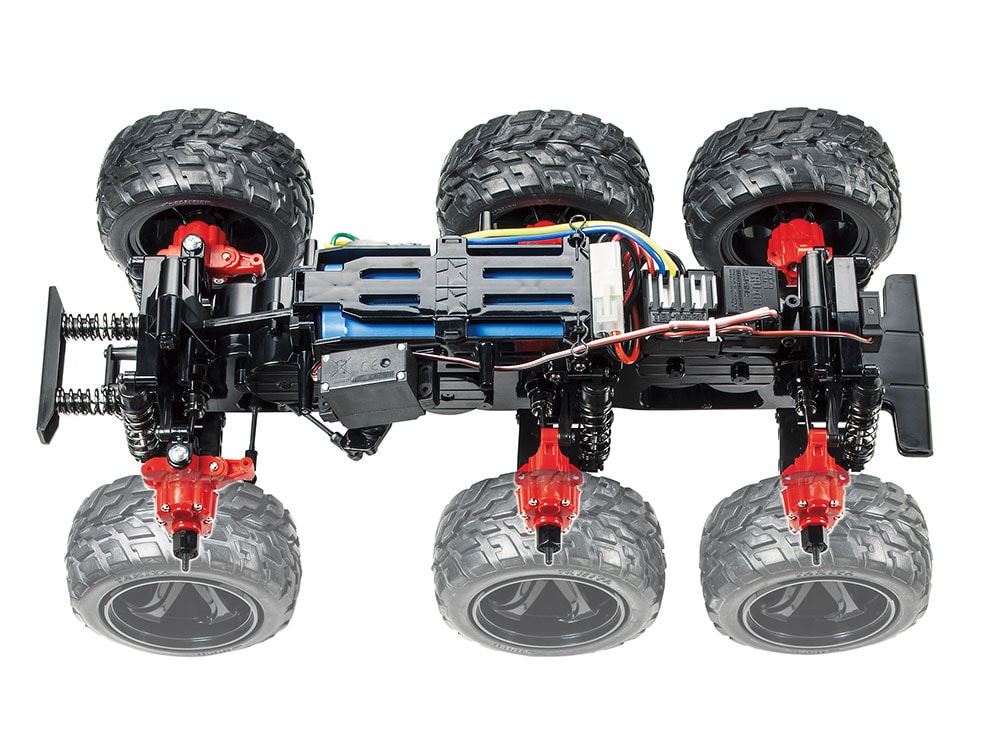

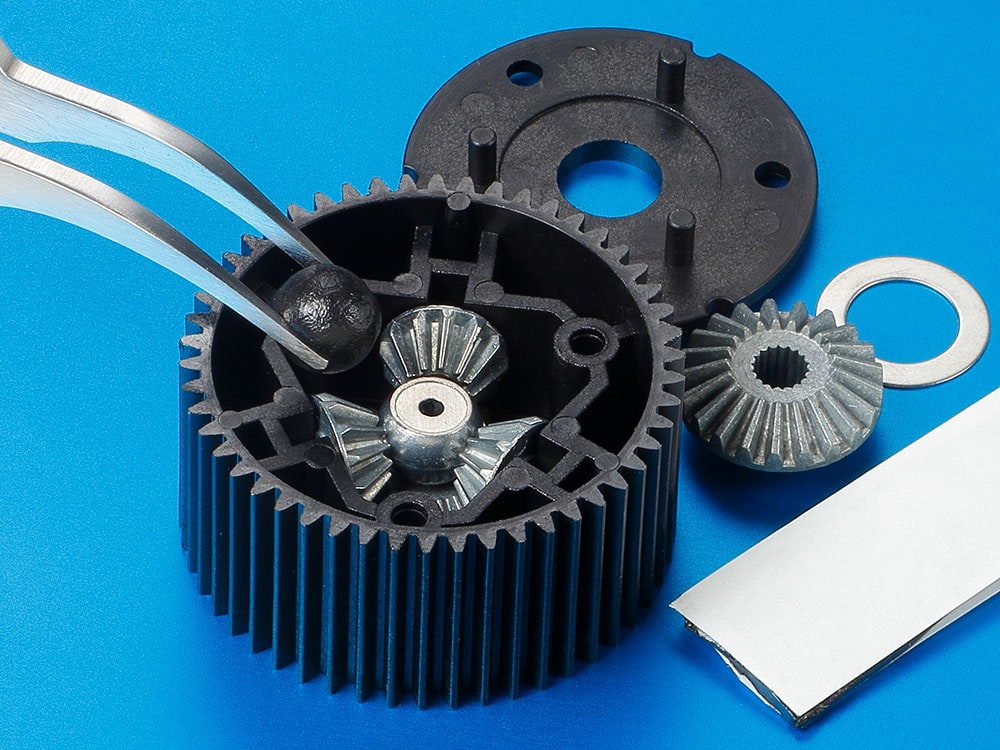

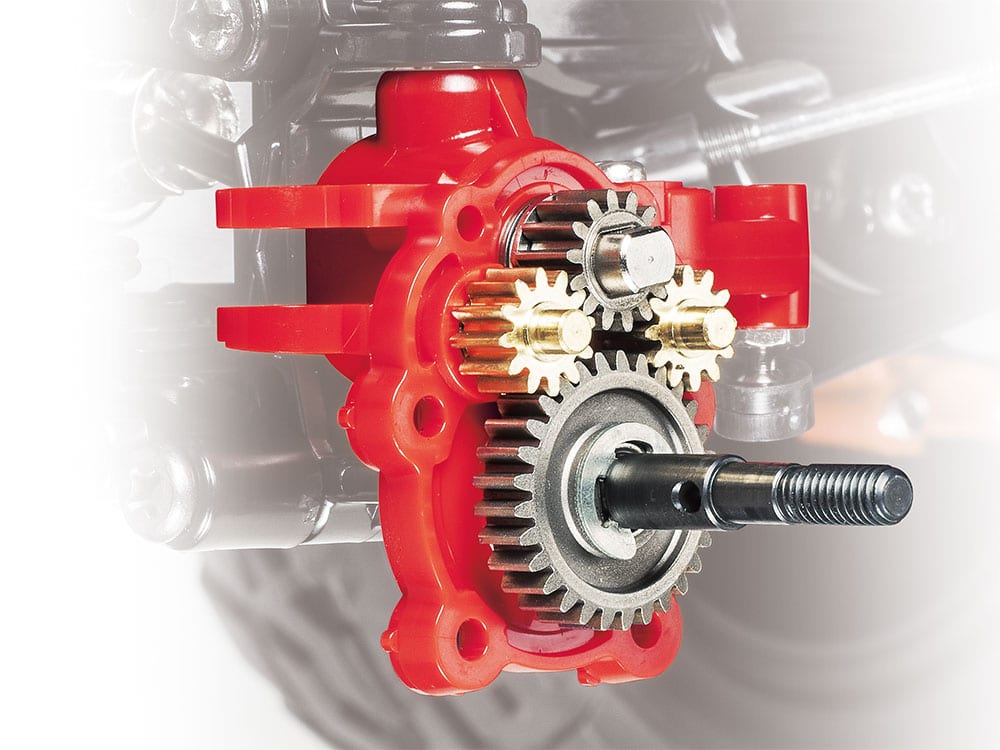

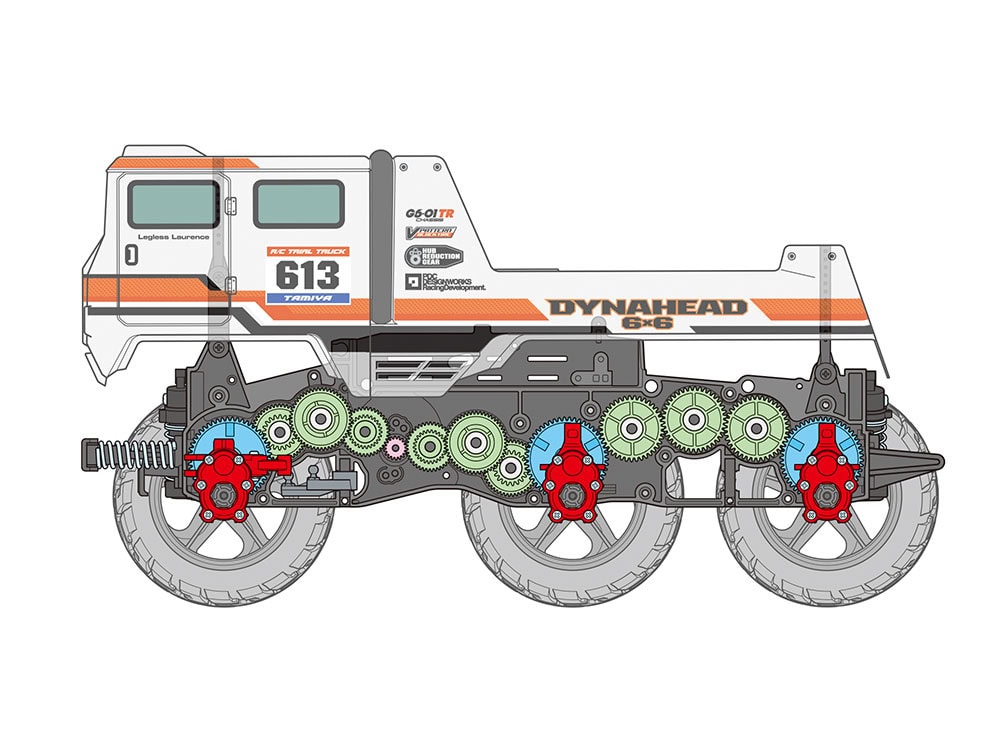

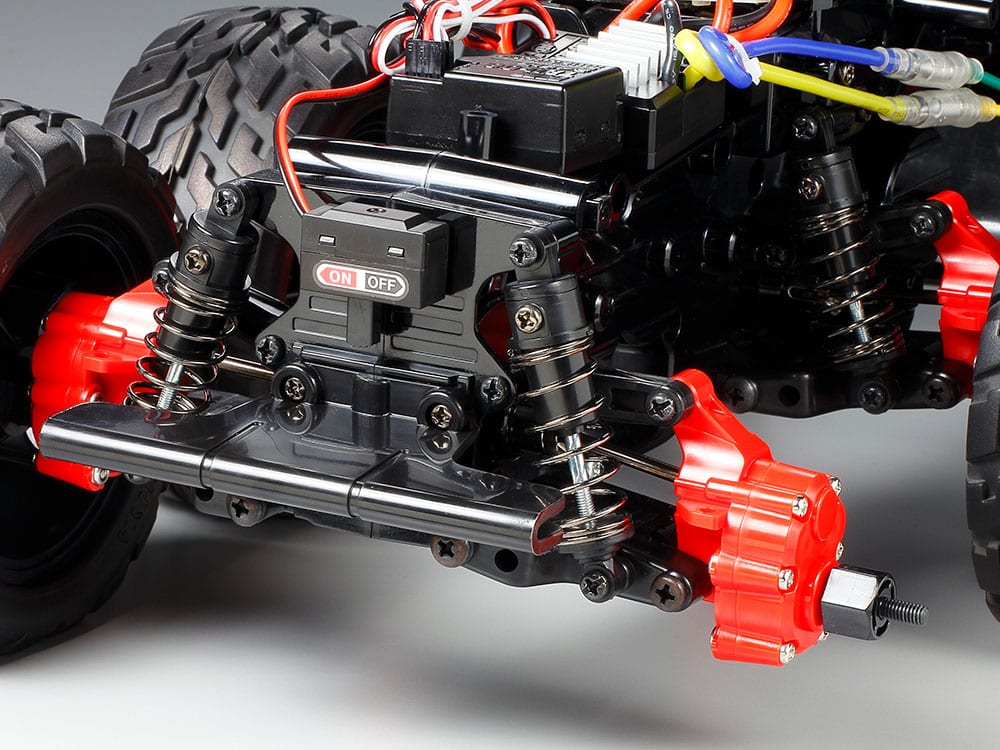

Reduction gears on each axle slow drive shaft rotation to give the 6-wheel drive G6-01TR chassis an overall gear ratio of 37.35:1, for immense traction, which along with its great ground clearance gives the ability to take on tough off-road terrain. It is based around a tough, slimline monocoque frame. Power is provided by a motor behind the front wheels, and transmitted to front, center and rear wheels via gears. The gearbox is sealed to protect from dust and debris, and integrated into the frame; it has built-in front, center and rear differential gears that provide superb traction and durability with the use of included diff putty. Double wishbone suspension is fitted with friction dampers, while black 5-spoke wheels are paired with 110mm diameter V-pattern block tires. With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable.

Specifications

• Length: 428mm, Width: 256mm, Height: 222mm
• Wheelbase: 173mm + 126mm
• Tread: 209mm (Front, Center and Rear)
• Tire Width/Diameter: 50mm/110mm
• Monocoque Frame ★Gear-Driven 6WD
• 3-Bevel Differential Gears
• 2-Piece Steering Tie-Rod
• 6-Wheel Independent Double Wishbone Suspension
• Gear Ratio = 37.35:1
• Type 540 Motor
• Requires an Electronic Speed Controller (sold separately)

Separately Required Items

• 2-Channel R/C Unit with ESC
• Battery Pack & Charger
• R6/AA/UM3 batteries for transmitter
