[Big attention to the body and chassis that tell a new era! ]

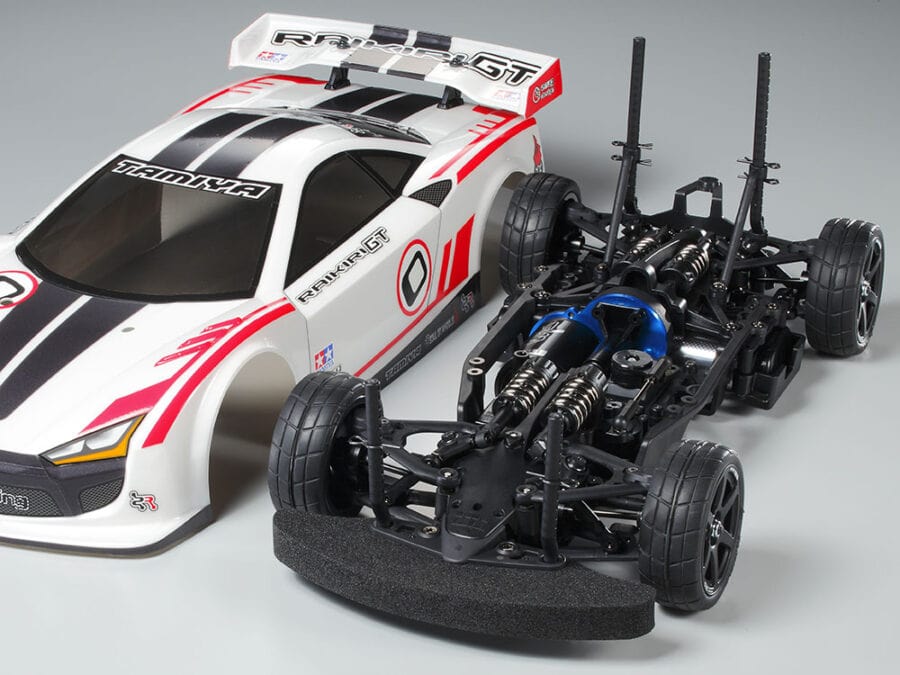

[Adopting shaft drive 4WD chassis with inboard suspension, TC-01]
The chassis adopts TC-01, a shaft drive 4WD with inboard suspension, to match the low vehicle height. A motor is mounted on the center of a monocoque frame with high rigidity and the propeller shaft transmits power back and forth. Equipped with an oil-filled gear diff. 4-wheel independent double wishbone suspension with long arm specifications. An inboard type that operates a horizontal oil damper vertically with a push rod and rocker arm. By adjusting the amount of spacers, you can set the camber angle, caster angle, and toe angle. In addition, the suspension arms / uprights use common parts on the front, back, left, and right to provide high maintainability.
