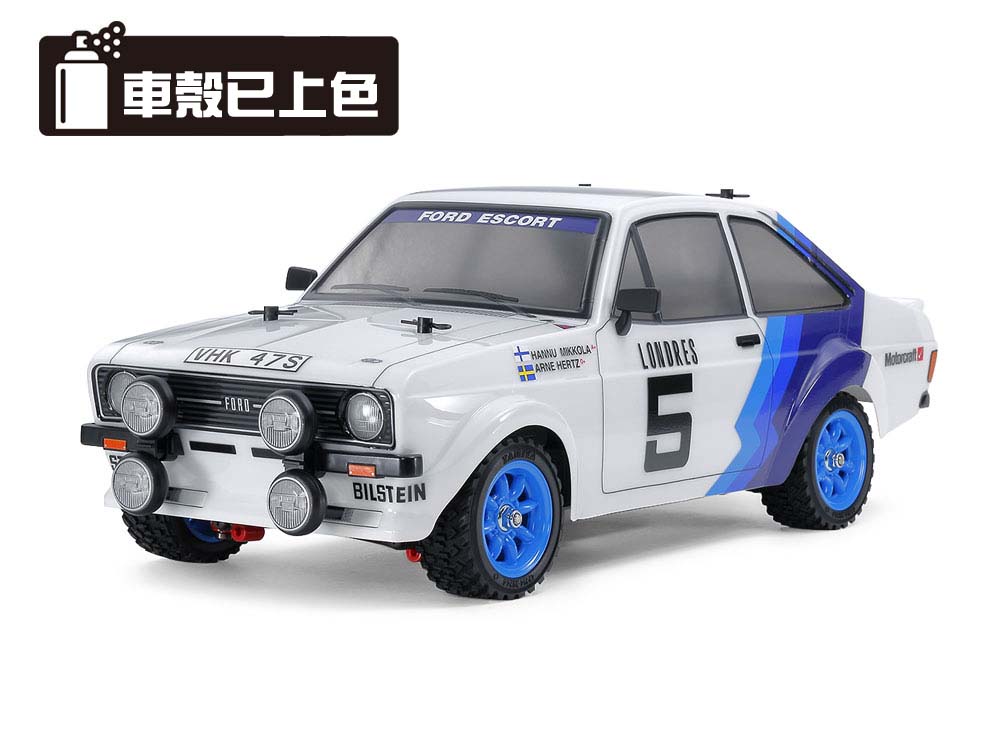

Tamiya 58687 1/10 RC Ford Escort MK.II Rally (Painted Body) (MF-01X Chassis)

田宮 58687 1/10 RC 福特 Escort MK.II Rally (已上色車殼版) (MF-01X底盤)

【Drive an Icon!】

The iconic Escort was manufactured between 1968 and 2004 by Ford Europe. The Mk.II was produced from 1975 to 1980, a front-engine, rear-wheel drive car with a classic boxy body. The RS1800 was fitted with a high performance DOHC 4-cylinder engine and became the base for a successful works team rally car that secured Manufacturers’ and Drivers’ championships in 1979. Now, this rally legend is recreated in an R/C model assembly kit, with a polycarbonate body accurately capturing the ageless style. Based upon the versatile MF-01X chassis, it will provide plenty of fun on both road and dirt surfaces.

【MF-01X – Compact 4WD At Home on a Range of Surfaces】

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Off-road capable M-05Ra chassis uprights and hub carriers are also included, and 8-spoke wheels are paired with rally block tires.

【Specifications】

• Length: 414mm, Width: 172mm, Height: 135mm
• Wheelbase: 239mm (L)
• Tire Width/Diameter (Front & Rear): 26/60mm
• Tread (Front & Rear): 138mm
• Monocoque Frame
• Shaft-Driven 4WD
• 3-Bevel Differential Gears
• 2-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front & Rear Friction Dampers
• Gear Ratio = 9.5:1
• Type 540 Motor
• Electronic Speed Controller (sold separately)

【Separately Required Items】

• 2-channel R/C system w/ESC
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置 & ESC電子變速器
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
