Tamiya 58688 1/10 RC Toyota Land Cruiser 300 (CC-02 Chassis)

田宮 58688 1/10 RC遙控車 豐田 Land Cruiser 300 (CC-02底盤)

【Inheritance and evolution, easy to drive and difficult to tire】

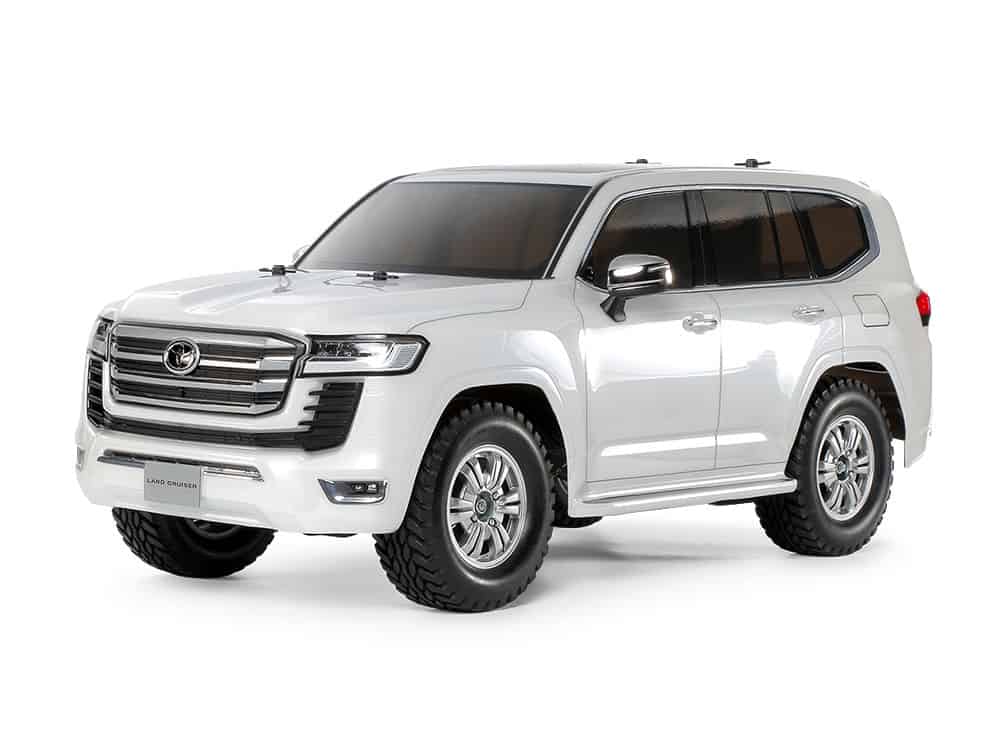

Since the first generation model release in 1951, the Toyota Land Cruiser has been one of the most famous 4WD vehicles in the world. This R/C model assembly kit recreates the Land Cruiser 300 series announced in 2021. The polycarbonate body realistically depicts the eye-catching, dignified form with separate parts to capture the distinctive large front grille’s horizontal fins and metal-plated sections. Light case and door mirror components are metal-plated, and door handles and shark fin antenna on roof are rendered by separate parts for more realism. Silver color 12-spoke wheels are paired with block pattern tires.

【CC-02 chassis】

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. 20 gear ratios between 11.09:1 and 29.28:1 are possible. 4-link rigid suspension is employed front and rear, with CVA oil dampers.

【Specifications】

• Length: 472mm, width: 200mm, height: 192mm
• Wheelbase: 267mm
• Tread: 160mm(front), 163mm(rear)
• Tire width/diameter: 33/90mm (front & rear)
• Ladder-type frame
• Shaft-driven 4WD
• Front/rear 3-bevel plastic differentials
• Front/rear 4-link type suspension
• Front/rear CVA oil dampers
• Gear ratio =17.33:1 (with kit standard 16T pinion)
• RS540 motor
• Electronic Speed Controller (ESC) is sold separately.

【Separately Required Items】

• 2-channel R/C system w/ESC
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
