Tamiya 58717 1/10 RC TT-02BR Chassis Kit

田宮 58717 1/10 RC遙控車 TT-02BR 底盤套裝

【獻給越野比賽挑戰者的升級底盤】

本型號是把4WD越野車底盤 – TT-02B搭載多種強化零件的改造升級底盤。驅動系統用上了可以藉著更換不同硬度矽油來調節性能的XV-02注油性齒輪差速器，使用了樹脂關節抑制摩耗的驅動軸，前後使用萬向傳動軸並全車滾珠軸承化。避震器支架換上了專用的3mm厚碳纖維支架，比原版擴大了設置幅度，同時令尾翼的角度可變。懸掛系統用上了長型的鬆緊扣軸，增加對杯頭的扭入度，減少行車引發的螺紋鬆弛。是比TT-02B更專注於越野比賽，能夠帶來改造和越野風馳樂趣的遙控車底盤。

【Race-Oriented Buggy Chassis】

This chassis assembly kit is an upgraded version of the 4WD off-road TT-02B chassis kit with a wealth of extra parts. The drivetrain uses XV-02 oil gear differential units to adjust the effectiveness of gear differential, propeller joints with internal plastic parts to limit wear, front and rear universal drive shafts, and full ball bearings. Its suspension features new 3mm thickness carbon fiber damper stays to give more setup options, while the angle of rear wing high downforce is adjustable. Longer turnbuckle shafts help prevent plastic adjuster sections from deforming.

【基本規格】

• 全長 388mm, 闊 183mm
• 軸距 258mm

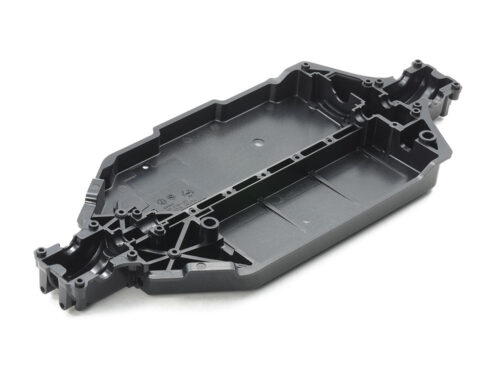

• 浴缸型底架
• 驅動方式：軸驅動4WD
• 差速器：注油式齒輪型 (前&後)
• 轉向裝置：3分割鬆緊扣式
• 懸架系統：4輪雙橫臂懸架式
• 避震系統：鋁管注油式避震器 (前&後)
• 齒輪比：標準配置10.71:1
• 摩打：540型 (需另購)
• 速度控制：ESC電子變速器形式 (需另購)

【Specifications】

• Length: 388mm, width: 183mm
• Wheelbase: 258mm
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear oil gear differentials (with dedicated diff joints)
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Oil dampers with aluminum cylinders
• Gear ratio = 10.71:1 (with kit standard pinion)
• Type 540 motor (sold separately)
• Electronic Speed Controller (ESC) is sold separately.

【專屬特點】

• 注油式差速器可依據不同情況使用不同黏度的矽油。
• 新式專用前後避震器底架提供多樣不同設置選項。
• 驅動軸裝上樹脂部件減少摩耗。
• 附有2款尾翼︰Neo Scorcher 尾翼及 ITEM 54211 TRF201尾翼。TRF201尾翼包括兩款不同設計大型尾翼及固定器和墊片可用作調整尾翼角度。
• 懸掛系統使用比一般長4~6mm的加長型鬆緊扣減少塑膠轉接頭的變形及確保動作穩定。
• 轉向系統換掉原版的3×18階梯螺絲，改用法蘭管及六角頭螺絲與螺母延長了產品壽命。
• 全滾珠軸承化
• 附有TT-02BR專用便擁箱。
• 附帶 Neo Scorcher 車殼(透明，不連原裝貼紙)
• 摩打﹑伺服摩打﹑ESC及遙控裝置需另購。

【Special Features】

• The transmission uses the oil bath gear differential to be able to adjust the traction simply by using different viscosities of oils.
• New front and rear shock mounts offer more oil filled shock and upper link configuration options.

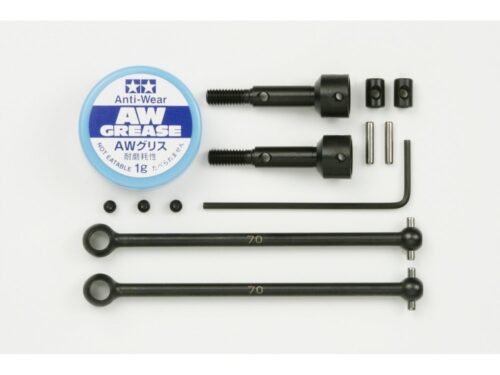

• The use of front and rear homokinetics ensures stable transmission regardless of suspension travel.
• The central axle and joints have plastic parts to limit wear on the joint.

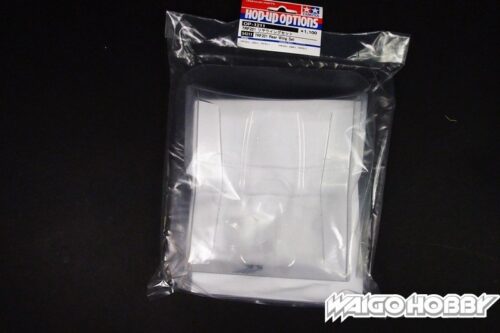

• Includes two rear wings: a standard Neo Scorcher kit (clear) and the TRF201 part no. 54211 wing. The TRF201 wing includes two large design wings to adjust downforce to track surface conditions and are included also wing holder spacers to adjust the rear wing angle.
• The upper adjustable arms are longer than 4 ~ 6mm and help prevent deformation of the plastic adjustment sections and ensure improved suspension movement.
• The connection of the steering with flanged tubes is characterized by a longer life thanks to the fixing with hexagonal head screws and lock nuts compared to the fixing with 3 × 18 stepped screws.
• Features ball bearings.
• Comes with a dedicated carrying case for the TT-02BR chassis.
• Includes Neo Scorcher bodywork (clear). * Please note that Neo Scorcher stickers are not included.
• Engine and R / C system. they are sold separately.

及以下新零件 And the following new parts︰

• 鋁合金驅動軸 Aluminum transmission shaft
• 碳纖維避震器底架 Carbon shock absorber supports
