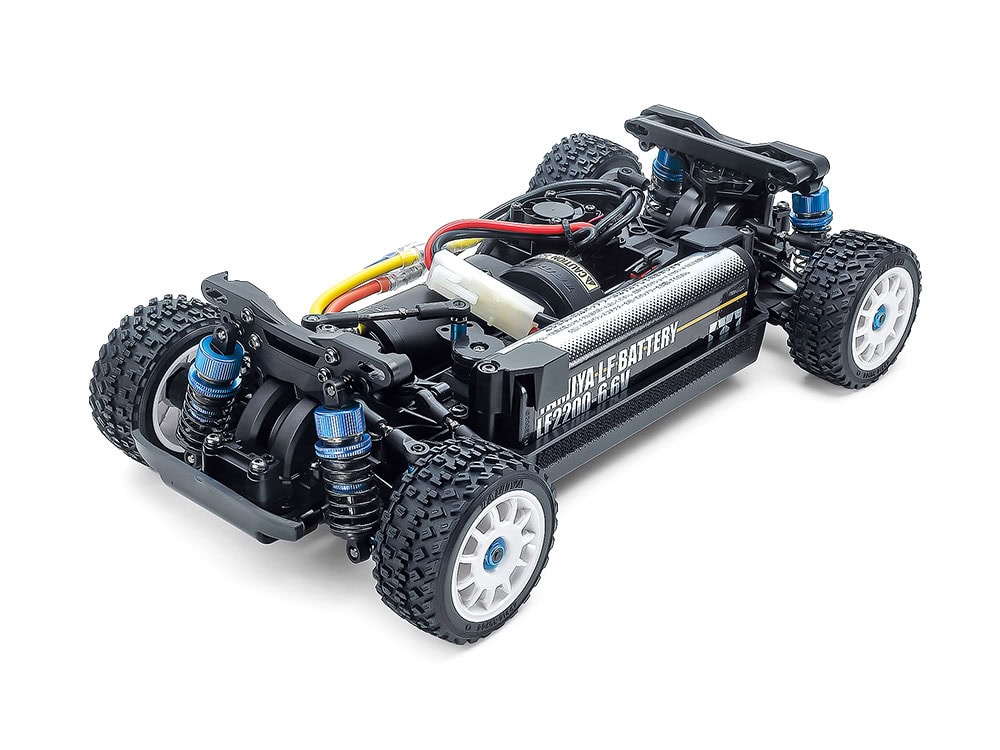

田宮 58738 1/10 RC遙控車 XM-01 PRO 底盤套件
【Front Motor 4WD for Rally Fun!】
This compact shaft-driven 4WD chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via front and rear propeller shafts. A longitudinal upright battery pack is positioned in the left side, contributing to optimum balance. Changing the rear section allows a choice from three wheelbases. The 4-wheel independent double wishbone suspension has aluminum-cylinder oil dampers. Front caster angle is 5 degrees, and hub carriers and uprights allow two types of ground clearance, while the front bumper skid angle reduces surface contact.
【Featured Components】
- Drivetrain:
- Front & rear oil-filled gear differentials (two 39T and one 40T included)
- Front & rear universal drive shafts
- Full ball bearings
- Suspension:
- Aluminum oil dampers (blue caps)
- 5-degree caster suspension mounts
- Turnbuckle upper arms
- Chassis:
- Polycarbonate chassis cover
- Front bumper with skid angle
- Hi-torque servo saver
【Specifications】
- Length: 308mm (with 225mm wheelbase) Width: 165mm
- Choice of 210mm, 225mm and 239mm wheelbases
- Bathtub frame
- Front midship motor, shaft-driven 4WD
- Front/rear oil filled gear differentials
- 3-piece steering tie-rod
- 4-wheel independent double wishbone suspension
- Aluminum cylinder oil dampers
- Gear ratio = 8.27:1 (with kit 22T pinion; 13 ratios between 10.71 and 6.28:1 are possible with separately sold pinions)
【Separately Required Items】
- 2-channel R/C system w/ESC
- Servo motor for steering (Low-profile servo is recommended.)
- Body
- Type-540 Motor
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
【以下需另購】
- 2ch 遙控裝置 & ESC電子變速器
- 轉向用伺服摩打 (推薦使用矮身伺服摩打)
- 車殼
- 540型摩打
- 發訊器用AA電池
- 遙控車用充電池及充電器
