Tamiya 58744 1/10 RC Audi 90 quattro Racing (TT-02 Chassis)

田宮 58744 1/10 RC遙控車 奧迪 90 quattro Racing (TT-02底盤)

 【4WD racing machine that showed speed in U.S. 1989】

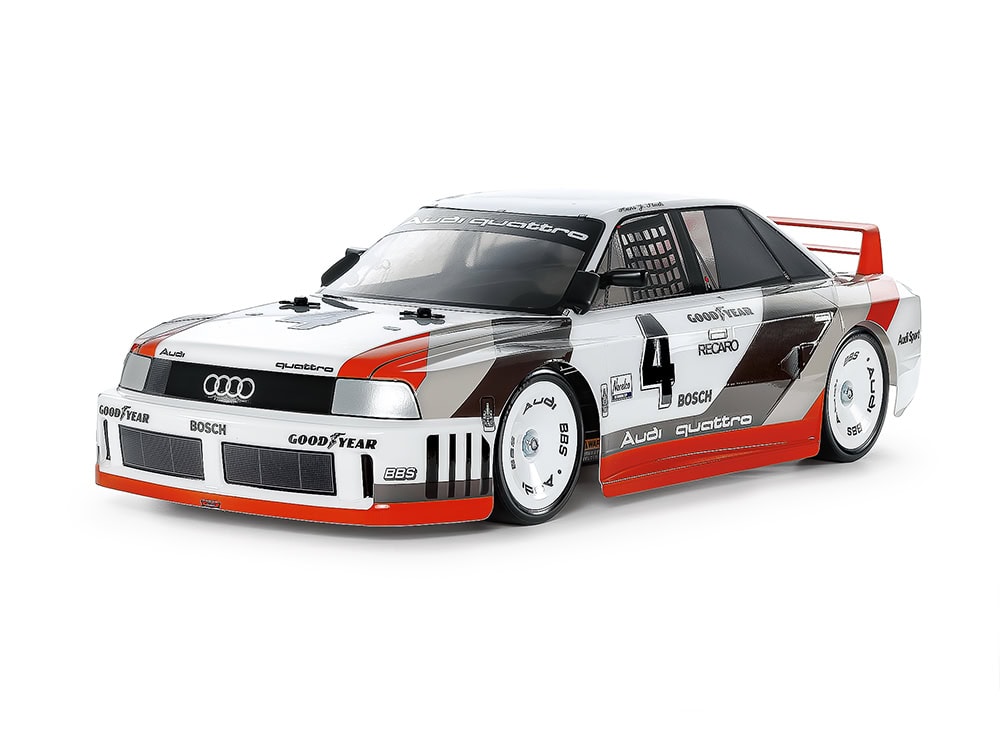

This R/C model assembly kit recreates the Audi 90 quattro Racing, a car which flourished at American races in 1989. Wider than the road car, its muscular form is recreated by a polycarbonate body, with stickers included to recreate sponsor logos, red/silver/black livery sections and more. Separately molded parts for the A pillar ducts, side mirrors and rear wing give an extra level of detail. The shaft-driven 4WD TT-02 chassis employs a 251mm wheelbase, and dedicated flat dish wheels have a +4mm offset to go with the wide body.

【TT-02: Adaptable, balanced shaft driven 4WD】

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

【擁有優異操控性能和易於整備的軸驅動4WD – TT-02底盤】

本品採用了軸驅動4WD的TT-02底盤。把電池放於左側﹑摩打放於右側的間隔設計令車體易於平衡﹑便於操控。同時懸掛臂和轉向杯的左右共通設計亦令組裝容易上手，上下分割式的齒輪箱提高了整備性。除此之外﹑只需簡單地把零件互換組合就可以組成各2種類的軸距﹑車高和輪距﹑再加上多達10種類的齒輪比組合，可以選擇最適合自己的配置。

【Specifications】

• Length: 446mm, width: 192mm, height: 127mm
• Wheelbase: 251mm
• Tire width/diameter: 26/66mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel plastic differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 motor
• Electronic Speed Controller (ESC) is included.

【基本規格】

• 全長 446mm, 闊 192mm, 高 127mm
• 軸距 251mm
• 輪胎闊 26mm / 直徑 67mm (前&後)
• 浴缸型底架
• 驅動方式：直置摩打．軸驅動4WD
• 差速器：樹脂製4錐齒輪型 (前&後)
• 轉向裝置：3分割鬆緊扣式
• 懸架系統：4輪雙橫臂懸架式
• 避震系統：摩擦式 (前&後)
• 齒輪比：標準配置8.27:1 (與另購的摩打齒輪組合可選擇11.38:1~7.28:1共10種齒輪比)
• 摩打：540型
• 速度控制：ESC電子變速器形式 (內附)

【Separately Required Items】

• 2-channel R/C system
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
