Tamiya 58746 1/10 RC Peugeot 306 Maxi (BT-01 Chassis)

田宮 58746 1/10 RC遙控車 標緻 306 Maxi (BT-01底盤)

【FF rocket that made the 1990s rally scene exciting】

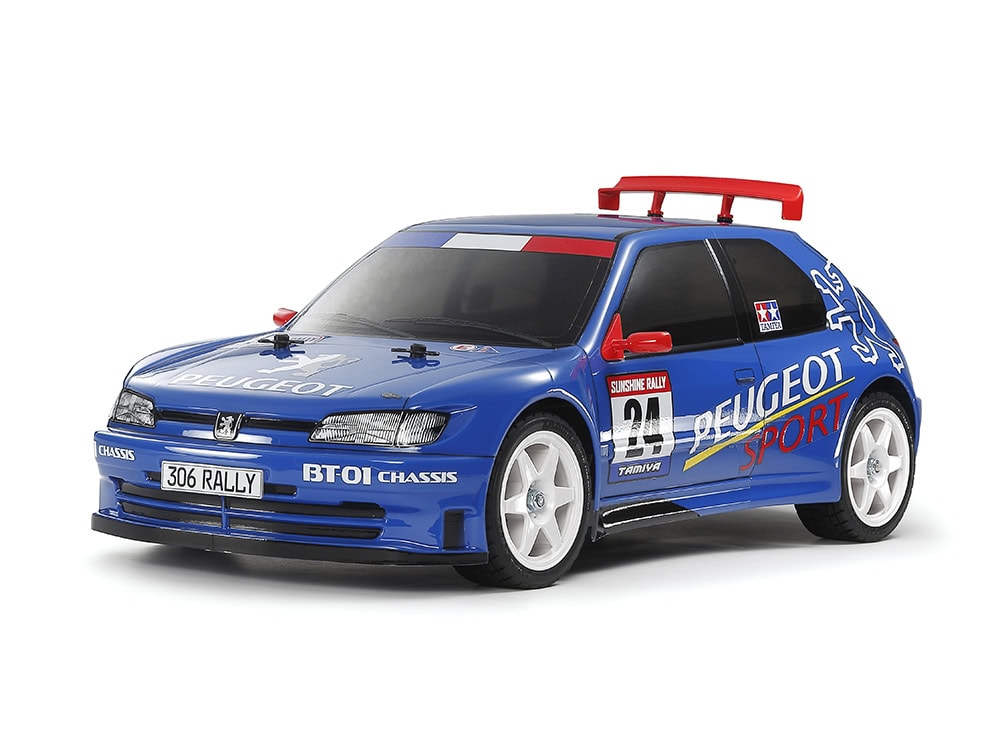

Based upon the FF hatchback Peugeot 306, the Peugeot 306 Maxi was developed with dedicated components for rallying. A 2.0-liter naturally-aspirated engine in front was capable of 280hp, and the car had enlarged fenders, roof spoiler, and a lightened body. Including the victories in 1996 and 1997 rally races in France, this car achieved many racing successes such as the class championship in the 1996 rally in Monte Carlo and third place in the 5th and 6th races on the 1997 global rally circuit. This R/C model assembly kit is inspired by such rally champions. The car’s silhouette is recreated by a polycarbonate body, with stickers included to add an original livery.

【Options Galore: the 2WD BT-01 Chassis】

The 2WD BT-01 chassis gives a choice of two types of wheelbase, and front- or rear-wheel drive system. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; front (FR) or midship rear (MR) motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

【千變萬化: 2WD BT-01底盤】

容易上手的2WD BT-01底盤提供兩種不同的軸距，並且可以選擇前驅或後驅式系統，令模型更加接近真車。無需拆除電池﹑摩打和遙控組件即可透過更動終傳齒輪和轉向橋轉換成前輪驅動或後輪驅動，後輪驅動時亦可以再選擇前置(FR)或後置(MR)兩種摩打位置。裝配摩擦式避震器的4輪雙橫臂懸架系統有著前後左右對稱的設計。「摩打座組件」﹑「終傳齒輪組件」﹑「懸架組件」等各部分的組件化設計令組裝更方便，整備性亦得以提升。

驅動系統設置︰

A front-wheel drive setup is recommended for this model.

標緻 306 Maxi 探用前輪驅動設置。

【Specifications】

• Length: 404mm, width: 187mm, height: 155mm
• Wheelbase: 257mm (standard)
• Tread: 157mm (front and rear)
• Tire width/diameter: 27mm/67mm (front and rear)
• Bathtub frame
• Front-wheel drive
• Plastic 4-bevel differential gear
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Friction dampers (front and rear)
• Gear ratio = 8.27:1 (with kit standard 22T pinion)
• Type 540 motor
• ESC included.

【基本規格】

• 全長 404mm, 闊 187mm, 高 155mm
• 軸距 257mm
• 輪距 157mm (前&後)
• 輪胎闊 27mm / 直徑 67mm (前&後)
• 浴缸型底架
• 驅動方式：前輪驅動
• 差速器：樹脂製4錐齒輪型
• 轉向裝置：3分割鬆緊扣式
• 懸架系統：4輪雙橫臂懸架式
• 避震系統：摩擦式 (前&後)
• 齒輪比：標準配置8.27:1 (使用附屬的22T摩打齒輪)
• 摩打：540型
• 速度控制：ESC電子變速器形式 (內附)

【Separately Required Items】

• 2-channel R/C system
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
