Name: Tamiya 69922 - CAM-Program Robot (Gun Metal/Orange)
SKU: TA 69922
Availability: OutOfStock

Tamiya 69922 – CAM-Program Robot (Gun Metal/Orange)

$280.00

這款田宮STEM科普教育模型 – Cam Program Robot 履帶式邏輯編程機器人憑著簡易入門設計，讓學生更容易學習編程，加上曾獲得日本Good Design Award 設計大獎，是入門編程首選 ! 這套件有別一般的編程機器人，不需要通過電腦編寫程式，而是透過組合及編序控制桿部件來移動向前及左右轉向，讓學生了解電腦編程裡二進制的基本理念。只要經過簡單組裝，手動編程後可以自由移動，設置編程欄，插入機器人中心即可。內部齒輪將讀取編程欄裡的程序並向下推動底部的轉向腿，通過履帶傳動來改變機器人移動方向。

已售完

貨號: TA 69922 分類: 編程機械人

Get with the Program!

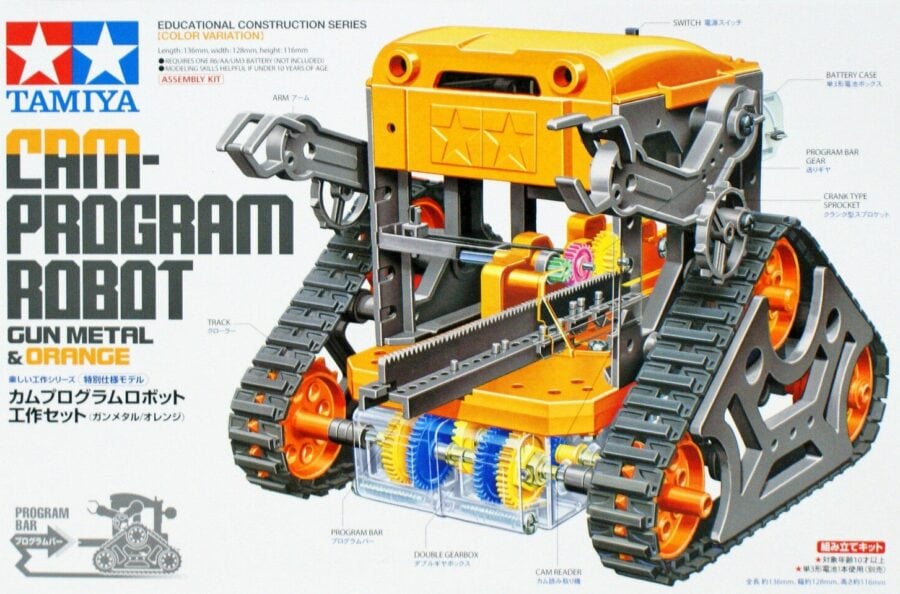

This assembly kit creates a robot whose movement can be programmed by the use of cam parts. The dual motors power triangular tracks and left/right arms in unison. Cams are inserted into the central program bar, and as it is pushed through the model by the program bar gear, the position of the cams is translated to the steering legs, which are lifted off the surface and cause the robot’s motion to change. Different assembly patterns create 2 different types of motion. Program bars give approximately 35 seconds of movement each, and can be joined together for longer patterns. Includes everything needed for easy snap-fit/screw-together assembly. This special version features parts molded in gun metal and orange

★Use the 3 different cam types in the program bar to control just how the robot moves!

★Once the bar is in the robot, cam positions are read and translated into movement of steering legs.

★This gun metal and orange version meets its cousin (Item 70227) in blue and white!

Choose from 2 different types!
Cams are translated into movement as they push down the steering legs on either side, which raises that side’s track off the ground. The model offers 2 different types of movement: the first (Type A) has the robot move forward when no cam is present, turn in that direction when there is a cam on one side only, and stop when there are cams on both sides. Type B sees the robot turn left when no cam is present, move forwards or backwards when there is a cam on one side, and stop when there are cams on both sides. Changing between the two types involves changing the motor wiring and adding/removing steering leg boots. The set also includes 3 different lengths of cam that in turn give different lengths of command. This model also has space for a universal plate, which can be used to host a microcomputer to give the robot commands (plate, microcomputer sold separately).

Specifications
★Dimensions (approx): 136mm length, 128mm width, 116mm height ★Two Type 130 motors included ★Easy snap-fit/screw-together assembly

Separately Required Items
★R6/AA/UM3 battery x1
