Tamiya 70227 Cam-Program Robot

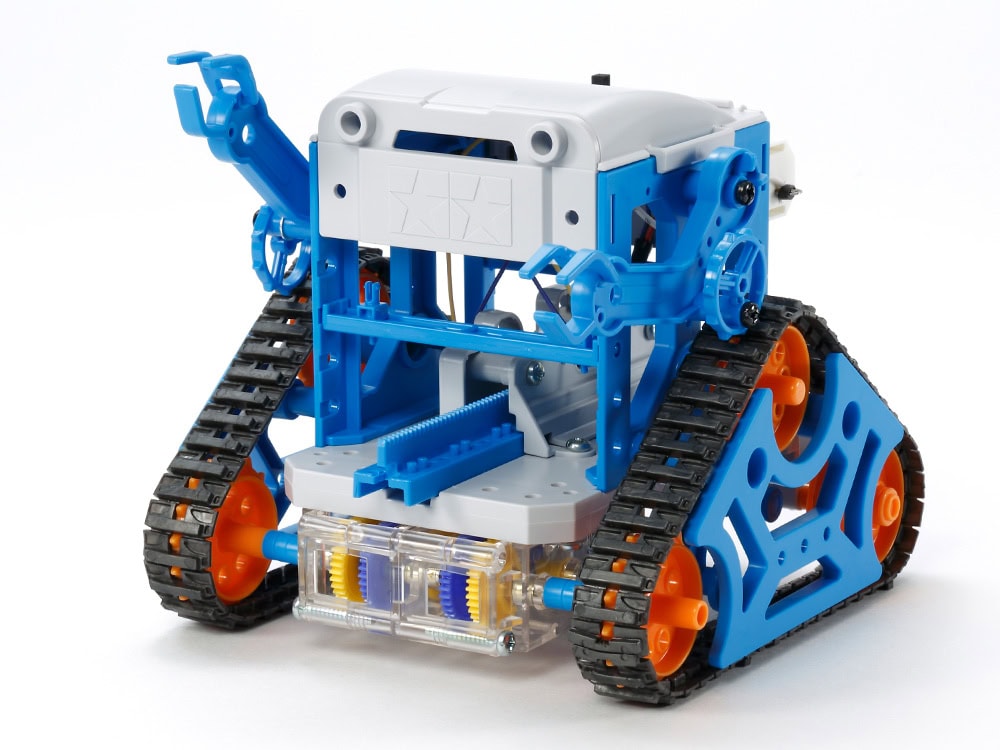

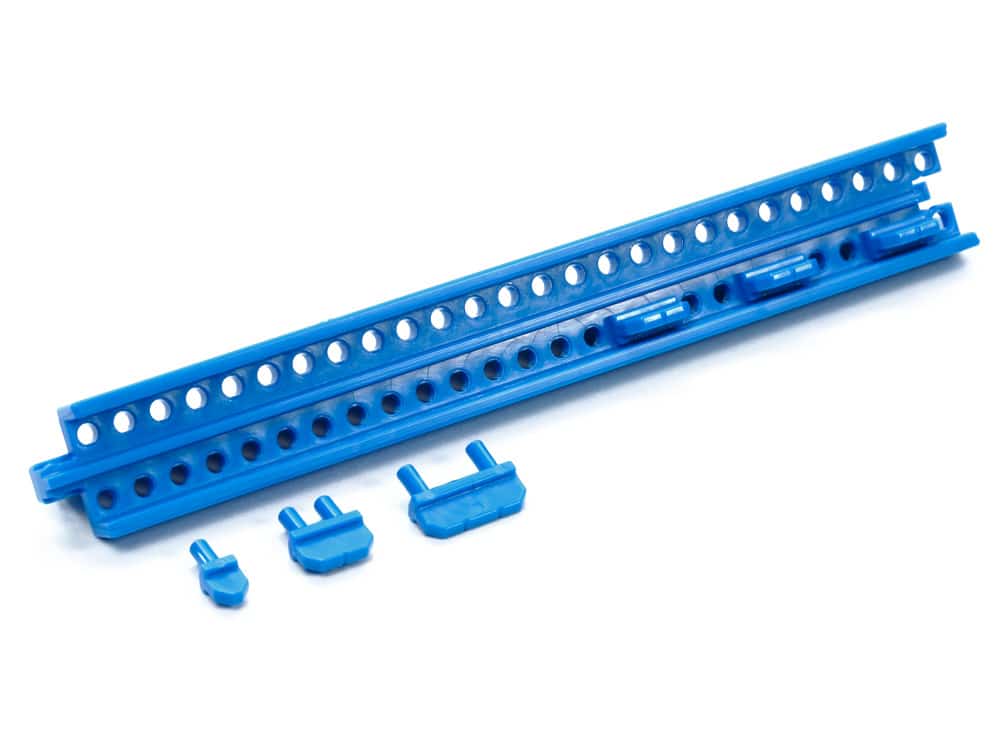

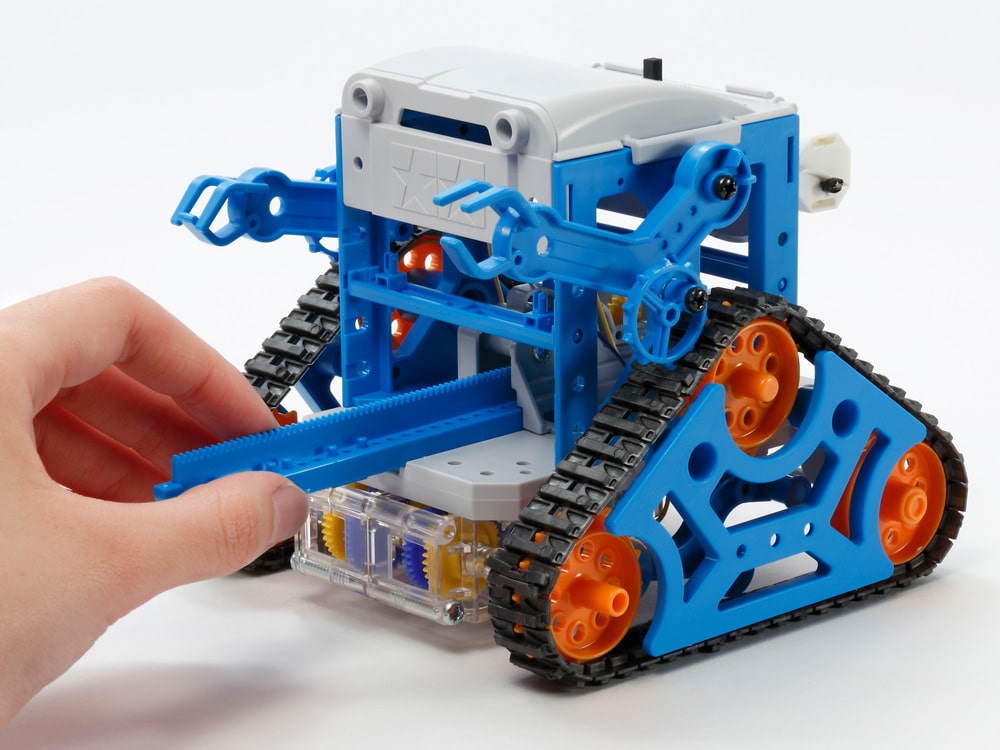

This is an assembly kit for robot work that can be programmed using a freely settable cam.?Set the power gearbox equipped with two motors under the main unit, proceed with a triangular crawler (crawler track), and move the left and right arms.?Set the program bar with the cam inserted in the center of the robot.?By moving the bar with the program bar gear case, the cam arrangement is read mechanically, the steering leg under the vehicle is pushed down, and the movement is changed by lifting the crawler.?A single program bar can control about 35 seconds, and can be connected to extend the control time.?All necessary parts are set and completed only by screwing and fitting.

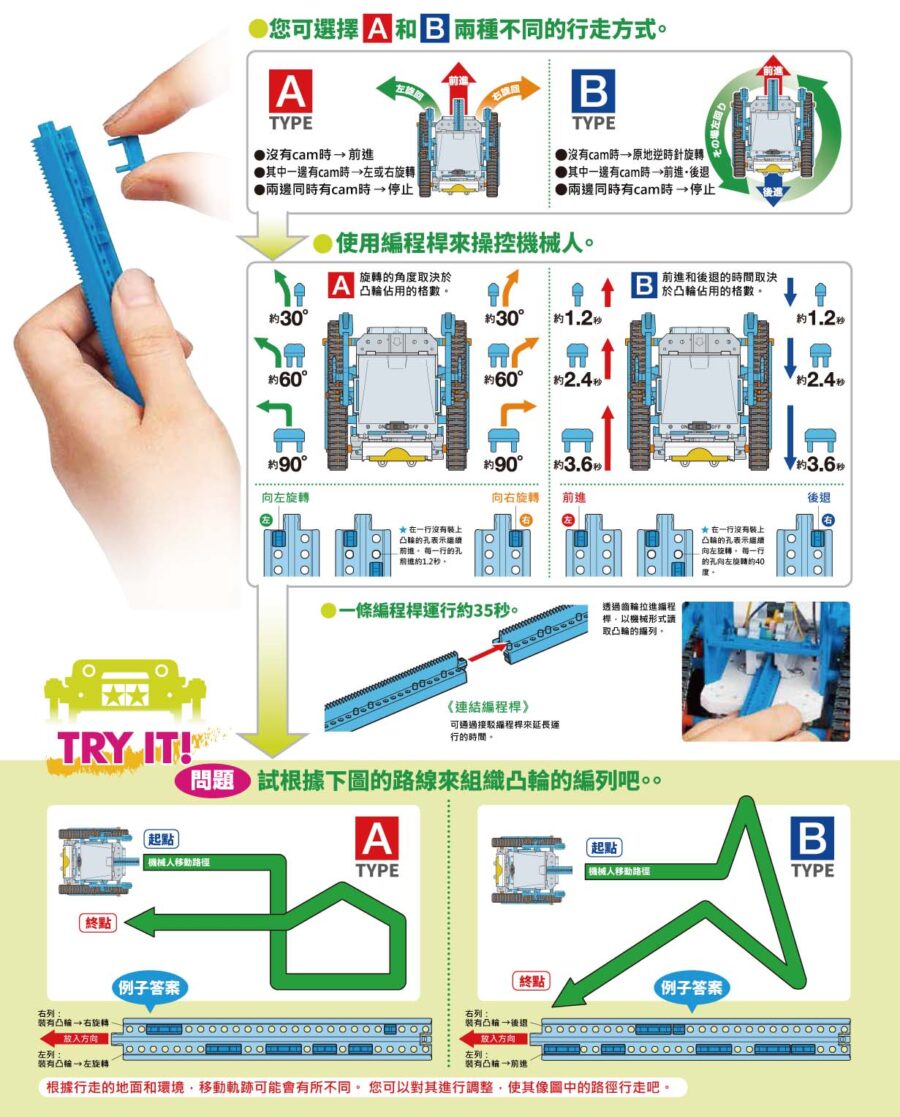

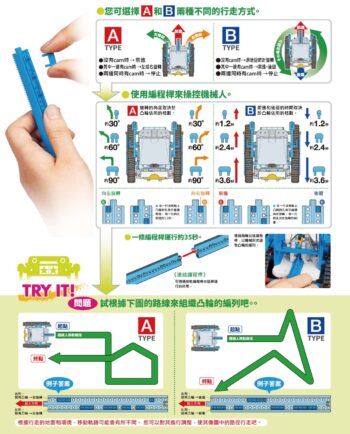

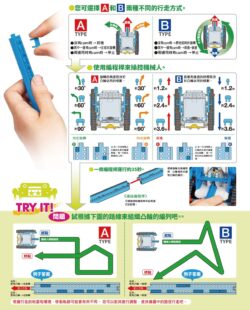

The mechanism of movement is that the cam pushes down the steering leg attached under the main body and lifts the crawler to change the movement.?There are two basic movement patterns.?The A type moves forward without a cam, turns when there is a cam on one side (turns left when there is a cam on the left), and stops when there is a cam on both sides.?The B type turns to the left without a cam, moves forward and backward when there is a cam on one side (forward when there is a cam on the left, reverse when there is a cam on the right), and stops when there is a cam on both sides .?The change of the pattern can be done by changing the wiring of the motor and the boot parts of the steering leg.?Also, you can prepare three kinds of cams and change the time to push down the leg.?Furthermore, a gear box can be added by attaching a universal plate, and the movement can be controlled by mounting a commercially available microcomputer board or board.

● 136mm long, 128mm wide, 116mm high when completed

● Includes two 130 motors.

● It can be assembled easily just by screwing and fitting without using adhesive.

● One AA battery

? Cam program robot work set won the 2017 Good Design Award?(October 4, 2017)
