描述
田宮 72005 6段速齒輪箱HE

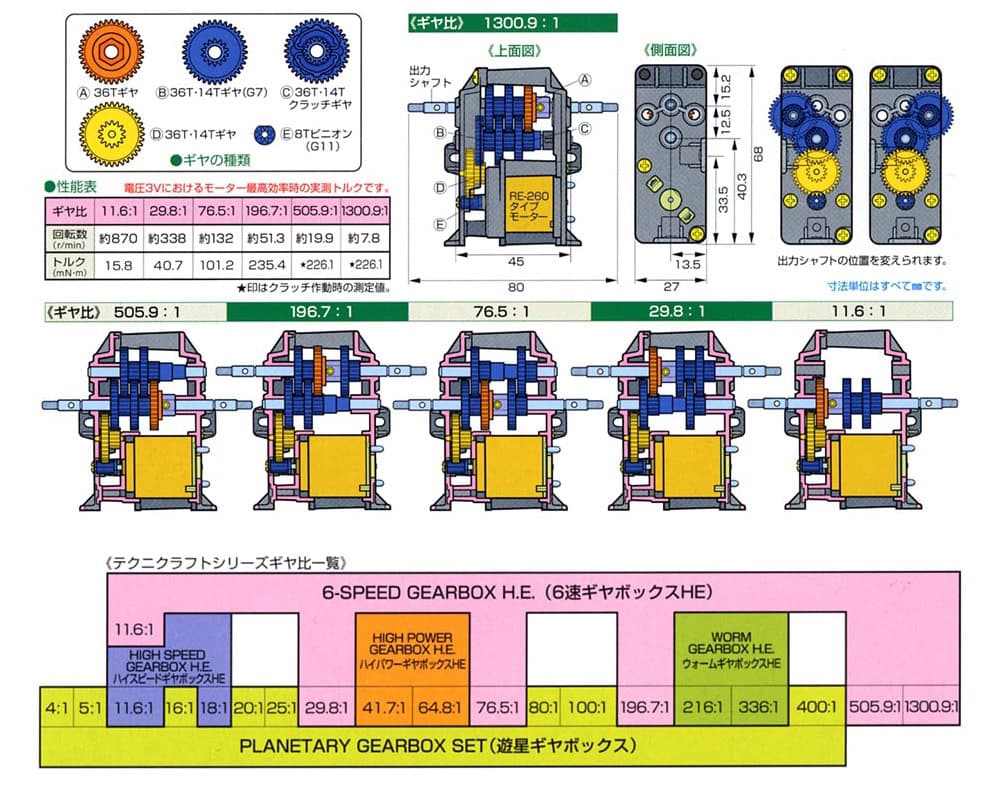

齒輪比 11.6:1/29.8:1/76.5:1/196.7:1/505.9:1/1300.9:1
可以選擇組裝六種齒輪比的組合,並且可以垂直或水平放置。內含爪式齒輪以防止其他齒輪嚙合不足。配備三種不同的曲軸臂,使用途更加廣泛。配有RE-260型摩打。
Tamiya 72005 6-Spd Gearbox High Efficiency Kit, 72005
This is a 6-Speed Plastic Gearbox H.E. Assembly Kit. It’s from Tamiya for very experienced model builders.
Features:
- Gearbox can be assembled for six different gear ratio. Select one according to application before assembling.
- Gear ratio can be altered from 11.6:1 to 1300.9:1 by gear combinations.
- 3V RE-260 motor.

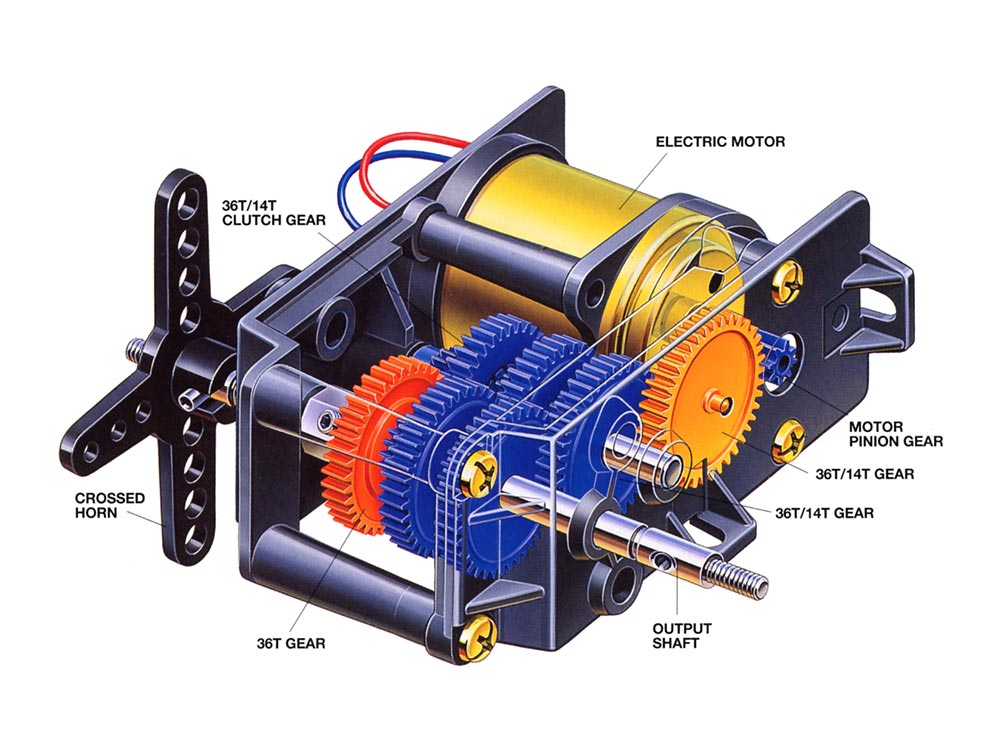

- Gear types include 8T, 36/14T, and a clutch.
- Gear box accepts 130 or 140 motor types.

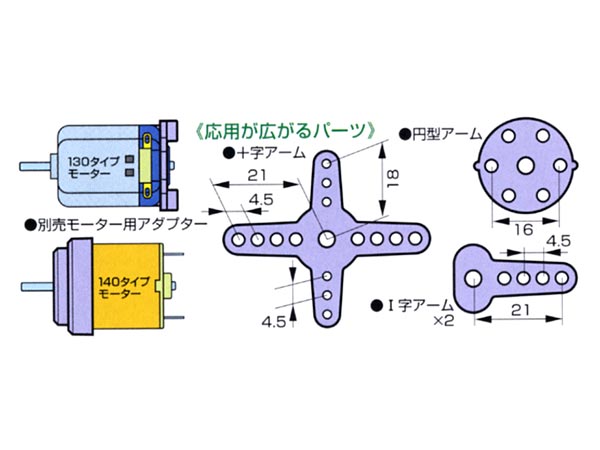

- Other parts include a crossed horn and output shaft.
- Use cam for vertical movement or change to rectilinear movement.
- Grease included for lubrication, plus a hex wrench and small phillips screws.
- Pictorial instructions included.
Includes: - One 6-Speed Gearbox H.E.
Requires: - Assembly
- Small Phillips Screwdriver
- Modeling Knife
- Sprue Cutters
- Long Nose Pliers
Specs: - Motor: Length: 1-1/2″ (3.7cm)
