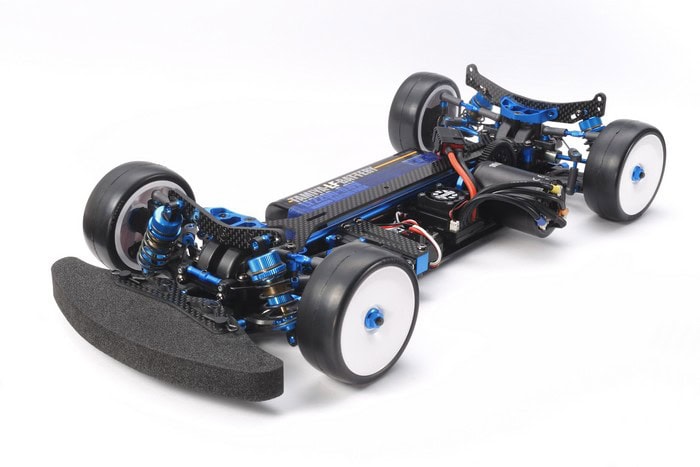

Length: 370mm. Image shows assembled and painted kit.
¡°Body, motor, wheels & tires, R/C equipment, battery pack and charger are sold separately
Get a Grip on Hi-Traction Circuits!
This high performance shaft-driven 4WD chassis has 2mm-thick aluminum lower and carbon fiber upper decks, its double-deck frame giving controlled chassis flex on high-grip surfaces such as carpet. The motor has a left-side mounting point, with a newly-designed aluminum center bulkhead that ensures spur and miter gears give long-lasting, smooth rotation. It is also loaded with high spec parts such as tried and trusted TRF418 suspension arms, big bore TRF short dampers, a 20% lighter aluminum propeller shaft, plus the easy-to-adjust TRF419 single piece stabilizer stopper. |
Featured Components
¡´2mm-thick Aluminum Lower Deck ¡´2mm-thick Carbon Fiber Upper Deck ¡´Aluminum Center Bulkhead ¡´Aluminum Propeller Shaft ¡´Aluminum Bearing Holder ¡´Aluminum Spur Gear Holder ¡´Aluminum Damper Stay Mounts ¡´TRF419 Stabilizer Stopper ¡´Aluminum Short Dampers (Big Bore) ¡´44mm Double Cardan Joint Shaft (2pcs.) ¡´Aluminum Rear Universal Shafts (2pcs.) ¡´TRF418 Suspension Arms ¡´Carbon Damper Stays (F/R) for Short Dampers ¡´TRF Short Dampers (Big Bore) ¡´TB-04 Front Direct Coupling ¡´F/R Stabilizers ¡´Aluminum Suspension Mounts ¡´Front Direct Drive Unit ¡´Rear Gear Differential ¡´Full Ball Bearings
Specifications
¡´Length: 370mm, Width: 185mm ¡´Wheelbase: 257mm¡@¡´Double-Deck Frame: 2mm-thick Aluminum Lower Deck & 2mm-thick Carbon Fiber Upper Deck ¡´Shaft-Driven 4WD w/Transverse Motor ¡´Front Direct Drive & Rear Gear Differential ¡´3-Piece Steering Tie-Rod ¡´4-Wheel Double Wishbone Suspension ¡´Front/Rear TRF Short Dampers (Big Bore) ¡´Gear Ratio = 8.25:1 – 5.50:1 (11 total ratios possible with kit-included 66T spur gear. Pinion gear sold separately) ¡´Requires Type 540 Motor and Electronic Speed Controller (sold separately) |
Separately Required Items
¡´2-Channel R/C Unit with ESC¡@¡´Type 540 Motor ¡´Battery Pack & Charger ¡´R6/AA/UM3 Batteries for transmitter ¡´Body, tires, wheels, pinion gear |
|
