Tamiya 47481 1/10 RC Super Avante (Painted Body) (TD4 Chassis)

田宮 47481 1/10 RC遙控車 Super Avante (已上色版) (TD4底盤)

Special Super Avante

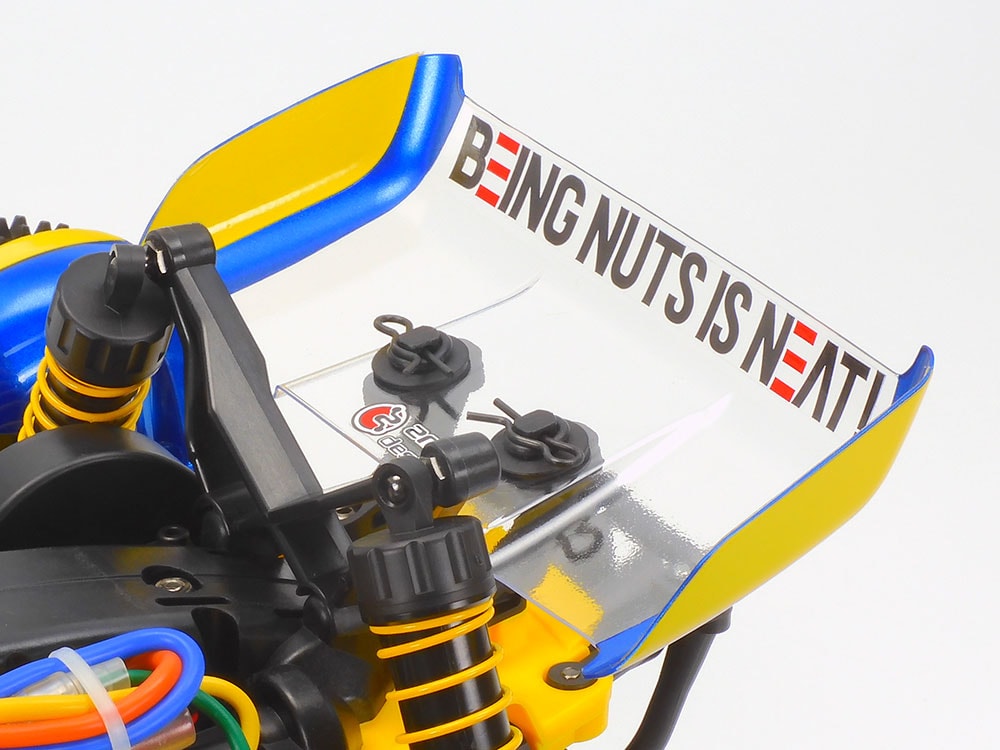

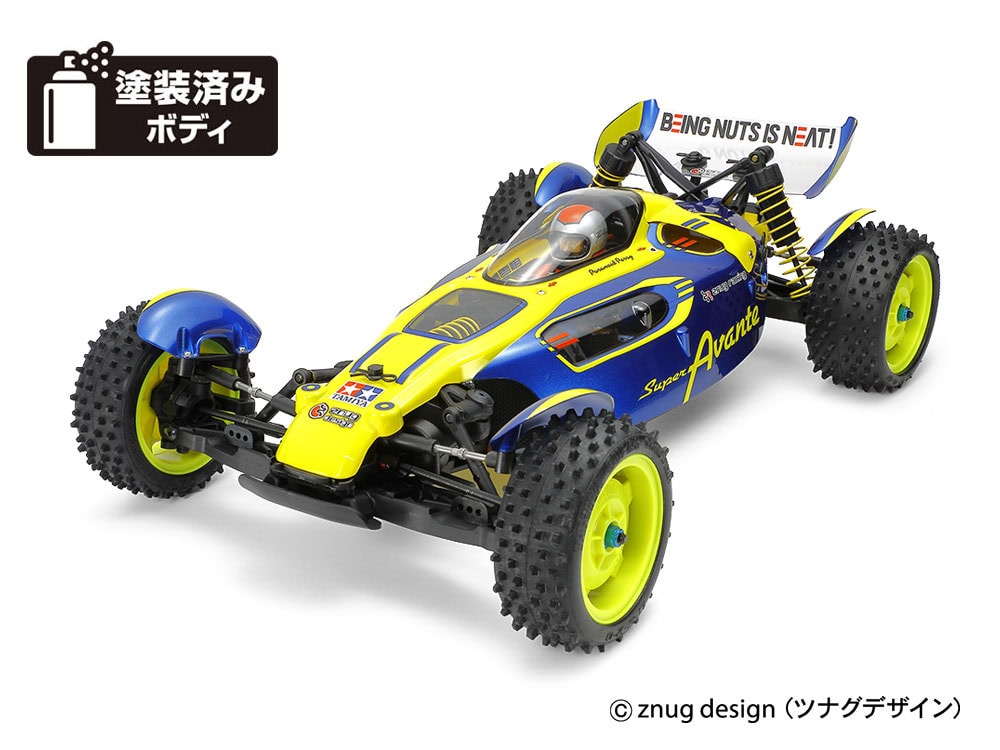

This assembly kit creates a special version of the stylish Super Avante 4WD R/C buggy, the (znug design) Kota Nezu-designed polycarbonate body pre-painted in metallic blue and yellow, and pre-cut for convenience. Its fenders are likewise pre-cut and pre-painted in metallic blue, just requiring application of yellow stickers, while the rear wing is also already cut. A further splash of color is provided by yellow main frame and damper spring components.

TD4 – Low Profile, High Performance

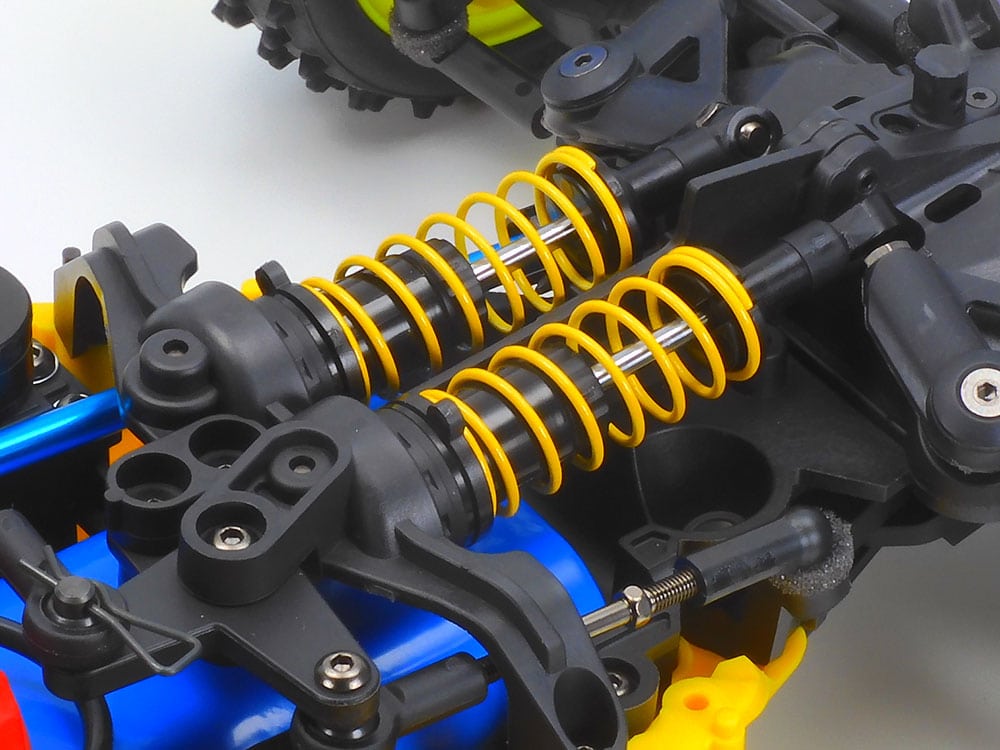

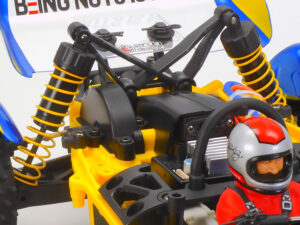

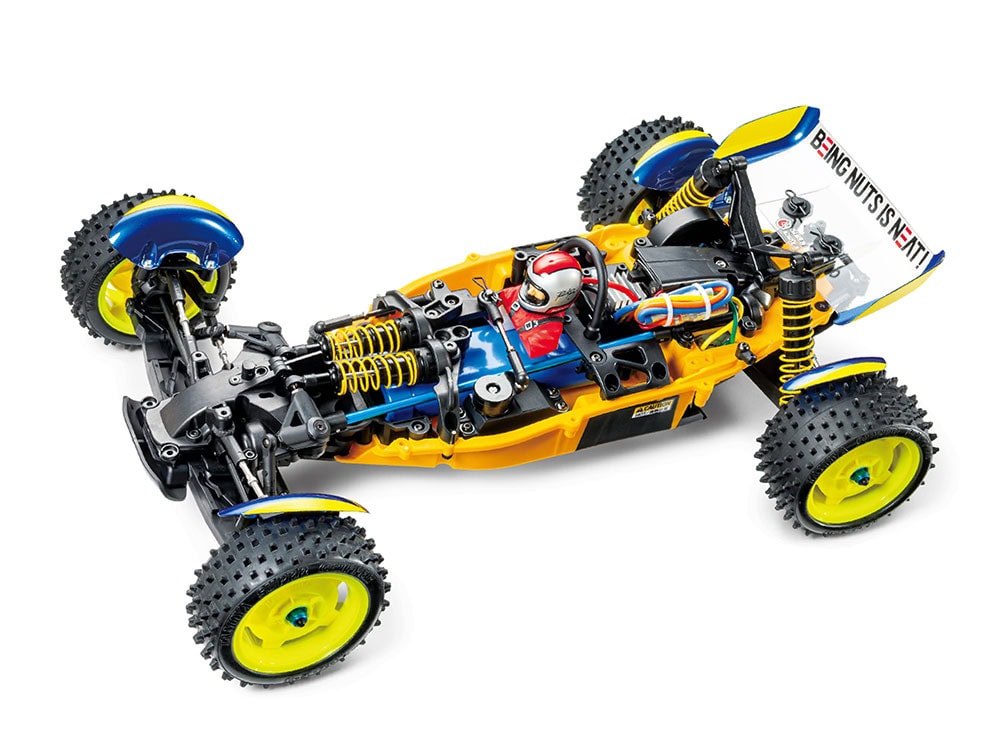

The TD4 is a shaft-driven 4WD buggy chassis which employs front inboard suspension for slim, low-profile form. It features a longitudinal battery pack position in the center and a midship transverse motor for optimum balance and improved performance. The drivetrain uses full bearings, and sealed front/rear gearboxes have built-in ball differentials. Two link rods and crank arm transmit movement of the left-side servo to the three-piece steering arm setup. 4-wheel independent double wishbone suspension utilizes CVA oil dampers. Turnbuckle shaft upper arms facilitate camber angle adjustment. Two types (high/low) of wing stays are included and star dish wheels are paired with square spike tires which offer superlative grip off-road.

Specifications

• Length: 387mm, width: 246mm, height: 117mm (with low wing stays employed)
• Wheelbase: 283mm
• Tread: 214mm (front), 205mm (rear)
• Plastic bathtub frame
• Shaft-driven 4WD
• Front & rear ball differentials
• 3-piece steering tie-rod
• 4- wheel double wishbone suspension
• Tire width/diameter: 32/82mm (front), 41/82mm (rear)
• CVA oil dampers
• Gear ratio = 10.71:1
• Full ball bearings
• Type 540 motor & Electronic Speed Controller (ESC) sold separately.

Separately Required Items

• Type 540 motor
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
