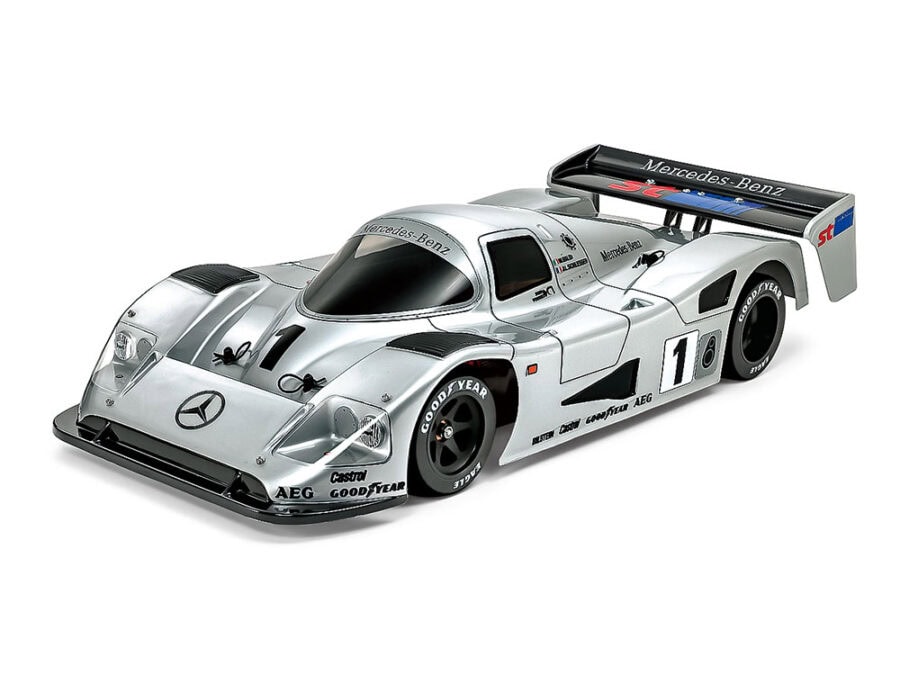

Tamiya 47484 1/10 RC 1990 Mercedes-Benz C 11

田宮 47484 1/10 RC遙控車 1990 梅斯特斯-平治 C 11

【C is for Class】

With seven wins in just eight appearances during the 1990 World Sports Prototype Championship (WSPC), the Mercedes-Benz C 11 was clearly the class of the field – Boasting a carbon fiber monocoque chassis and powerful 5-liter V8 twin turbo engine, it had an unrivalled pairing of speed and reliability. This assembly kit recreates that car in 1/10 scale, with the honed body depicted in polycarbonate, plus stickers included to recreate one of two cars.

【Direct-Drive 2WD Chassis】

Based around an ABS plastic bathtub, with space frames front and rear and FRP plates, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive drive. At the front, it has an independent coil-sprung king pin suspension setup, while the rear rigid suspension is a 3-point design with a 1.5mm thickness FRP T-bar and CVA oil damper; teamed up with sponge tires front and rear, they ensure superb road holding. Additionally, use of spacers allows two different front and three rear ground clearance setups.

【Specifications】

• Length: 490mm, width: 206mm, height: 110mm
• Wheelbase: 280mm
• Tread: 172m (front), 152mm (rear)
• Tire width/diameter: 28/64mm (front), 45/68mm (rear)
• Bathtub frame with space frame and FRP plates
• Transverse motor direct drive 2WD
• Ball differential
• 2-piece steering tie-rod
• 3-point suspension with CVA oil damper
• Gear ratio = 5.00:1
• Sport-Tuned motor
• Electronic speed controller (ESC) is sold separately.

【Separately Required Items】

• 2-channel R/C system w/ESC
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置 & ESC電子變速器
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
