Tamiya 47492 1/10 RC Fiat Abarth 1000TCR Berlina Corse (Blue-grey Painted Body) (MB-01 Chassis)

田宮 47492 1/10 RC遙控車 快意 Abarth 1000TCR Berlina Corse  (藍灰色已上色車殼版) (MB-01底盤)

【Great Things Come in Small Packages】

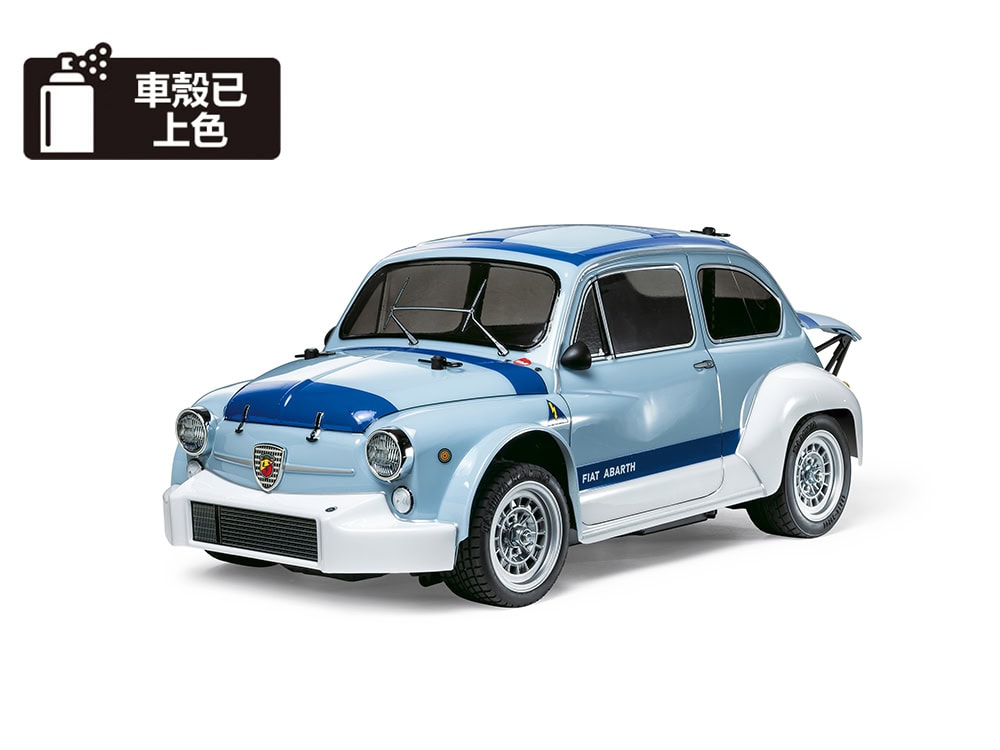

The Fiat Abarth 1000 TCR Berlina Corse became European Touring Car Championship class champion in 1968 and 1969. Based upon the compact 2-door Fiat 600, it was tuned by Abarth for races. The muscular form had front and rear over fenders, a large radiator cover integrated with the front bumper, and horizontally-opened engine hood. A 982cc inline-4 engine capable of over 110hp underpinned its powerful performance. This R/C model assembly kit depicts the small but mighty silhouette of the car elegantly using a polycarbonate body and plenty of separately molded plastic parts, the whole package being based upon the new MB-01 chassis.

【MB-01 chassis】

The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

【2種驅動形式 × 3種軸距的MB-01底盤】

MB-01底盤提供前輪驅動和後輪驅動兩種驅動方式，同時可以再搭配3種不同的軸距，是一種多目的多功能的2WD緊湊形底盤。除了田宮遙控車一貫的輕鬆快捷的操作感之外，更可以選擇組成與實車同樣的驅動規格。底盤設計成前後左右對稱，並配上裝備摩擦式避震器的4輪獨立雙橫臂懸架系統。除此之外，「單元化摩打座」﹑「單元化終傳齒輪座」﹑「單元化懸架」等各種單元化構造亦為MB-01底盤帶來優秀的維護性。無須裝拆電池﹑摩打和裝有遙控裝置的中央底架，只需要把齒輪箱和轉向橋部分的方向倒轉，即可以由前輪驅動轉變為後輪驅動。後輪驅動時更可以選擇高或低兩種摩打安裝位置，令操作感有更大變化。

【Short wheelbase × MR | 短軸距 × 後輪驅動】

【Specifications】

• Length: 374mm, width: 168mm, height: 140mm
• Wheelbase: 210mm (Short)
• Tread: 140mm (front & rear)
• Tire width/diameter: 25/55mm (front), 25/59mm (rear)
• Bathtub type chassis
• Midship motor, rear-wheel drive
• 4-bevel differential gear
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Friction dampers
• Gear ratio = 5.83:1 (using kit 29T pinion)
• Type 540 motor
• Electronic speed controller (ESC) is sold separately.

【Separately Required Items】

• 2-channel R/C system w/ESC
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置 & ESC電子變速器
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
