Tamiya 47516 1/10 RC Volkswagen Golf II GTI 16V (Red Painted Body) (MB-01 Chassis)

田宮 47516 1/10 RC遙控車 福士 Golf II GTI 16V (紅色已上色車殼版) (MB-01底盤)

【 The second generation sports type of the world standard car that never fades away】

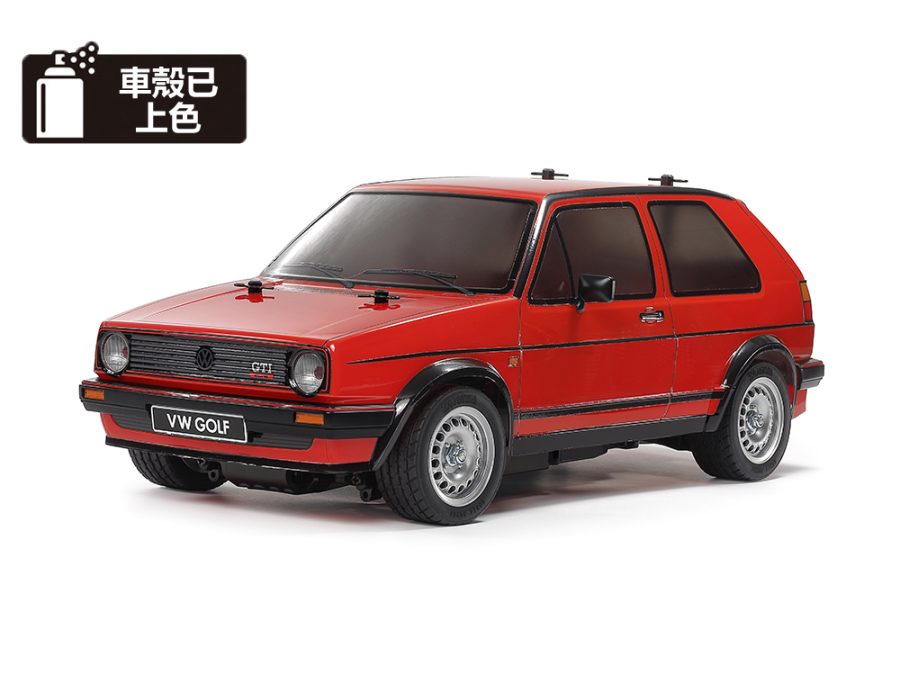

The FF drivetrain Golf is one of Volkswagen’s most iconic cars. From its first appearance in 1974, the Volkswagen Golf has continued to develop and lead the worldwide compact car class. In 1986, the Golf II GTI 16V was added to the second-generation model Golf II lineup which had made its debut in 1983. With a 1,781cc inline-4 DOHC 16-valve engine, a tuned car took part in global rally races, in 1986 becoming class champion. This R/C model assembly kit recreates that car, with the iconic form captured by a polycarbonate body and separate parts for headlight cases plus side mirrors. Stickers are included to add further detail to the body.

【MB-01 chassis】

The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

【2種驅動形式 × 3種軸距的MB-01底盤】

MB-01底盤提供前輪驅動和後輪驅動兩種驅動方式，同時可以再搭配3種不同的軸距，是一種多目的多功能的2WD緊湊形底盤。除了田宮遙控車一貫的輕鬆快捷的操作感之外，更可以選擇組成與實車同樣的驅動規格。底盤設計成前後左右對稱，並配上裝備摩擦式避震器的4輪獨立雙橫臂懸架系統。除此之外，「單元化摩打座」﹑「單元化終傳齒輪座」﹑「單元化懸架」等各種單元化構造亦為MB-01底盤帶來優秀的維護性。無須裝拆電池﹑摩打和裝有遙控裝置的中央底架，只需要把齒輪箱和轉向橋部分的方向倒轉，即可以由前輪驅動轉變為後輪驅動。後輪驅動時更可以選擇高或低兩種摩打安裝位置，令操作感有更大變化。

【Specifications】

• Length: 383mm, width: 170mm, height: 138mm
• Wheelbase: 239mm (long)
• Tread: 140mm (front & rear)
• Tire width/diameter: 25/59mm (front & rear)
• Bathtub-type frame
• Front-wheel drive
• 4-bevel plastic differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear ratio = 5.83:1 (using kit 29T pinion)
• Type 540 motor
• Electronic Speed Controller (ESC) is included

【基本規格】

• 全長 383mm, 闊 170mm, 高 138mm
• 軸距 239mm (long)
• 輪距 140mm (前&後)
• 輪胎闊 25mm / 直徑 59mm (前&後)
• 浴缸型底架
• 驅動方式：直置摩打．前輪驅動
• 差速器：樹脂製4錐齒輪型
• 轉向裝置：3分割鬆緊扣式
• 懸架系統：4輪雙橫臂懸架式
• 避震系統：摩擦式 (前&後)
• 齒輪比：標準配置5.83:1 (使用模型標準配備29T摩打齒輪)
• 摩打：540型
• 速度控制：ESC電子變速器形式 (已附屬)

【Separately Required Items】

• 2-channel R/C system
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
