Tamiya 58705 1/10 RC Ford Bronco 2021 (CC-02 Chassis)

田宮 58705 1/10 RC遙控車 福特汽車 Bronco 2021 (CC-02底盤)

【Mine’s a Bronco!】

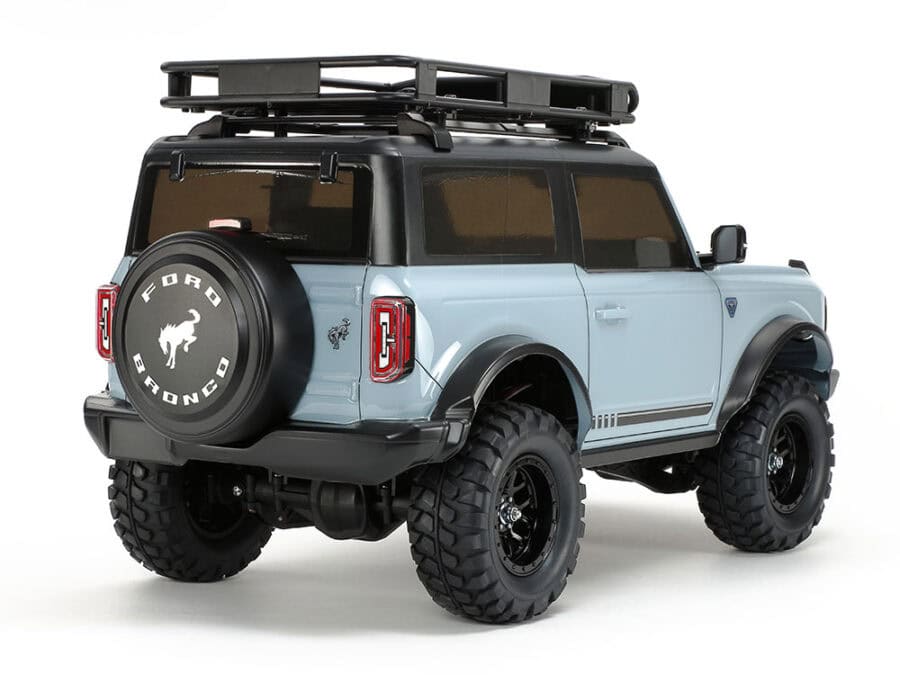

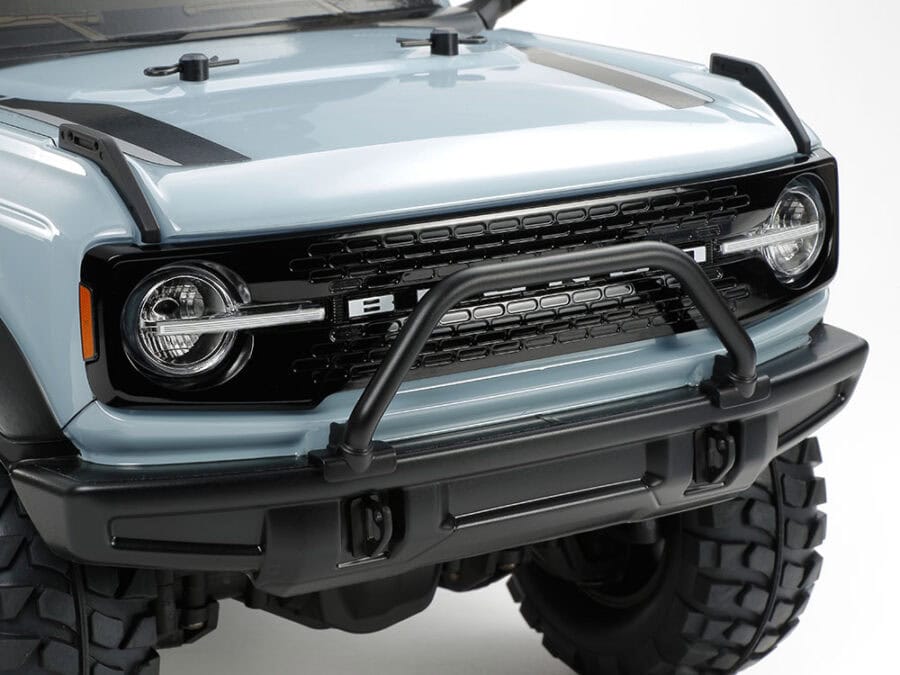

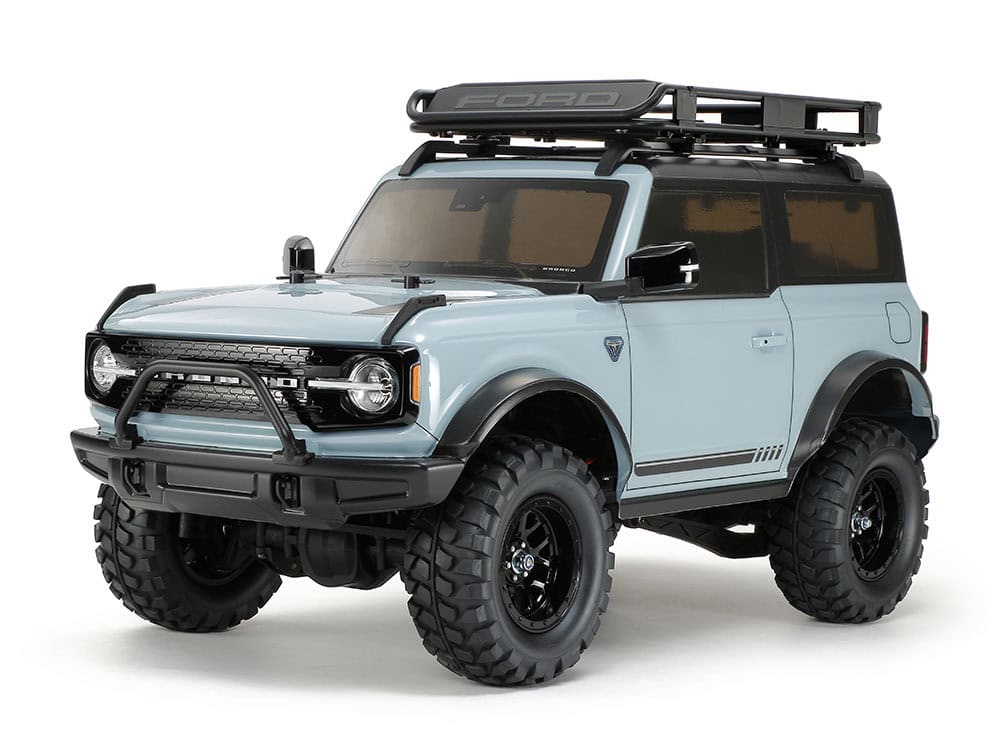

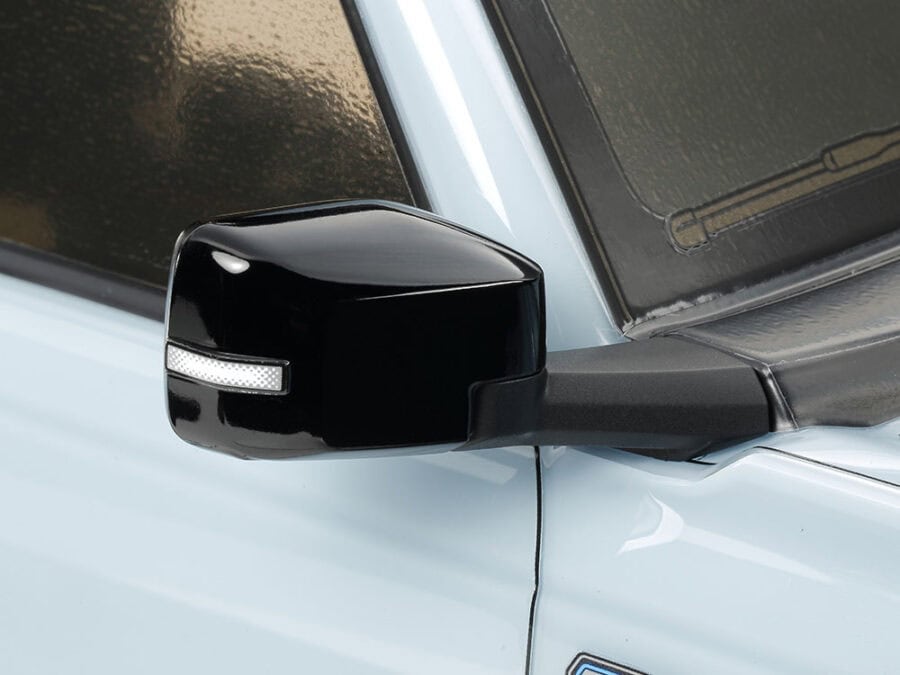

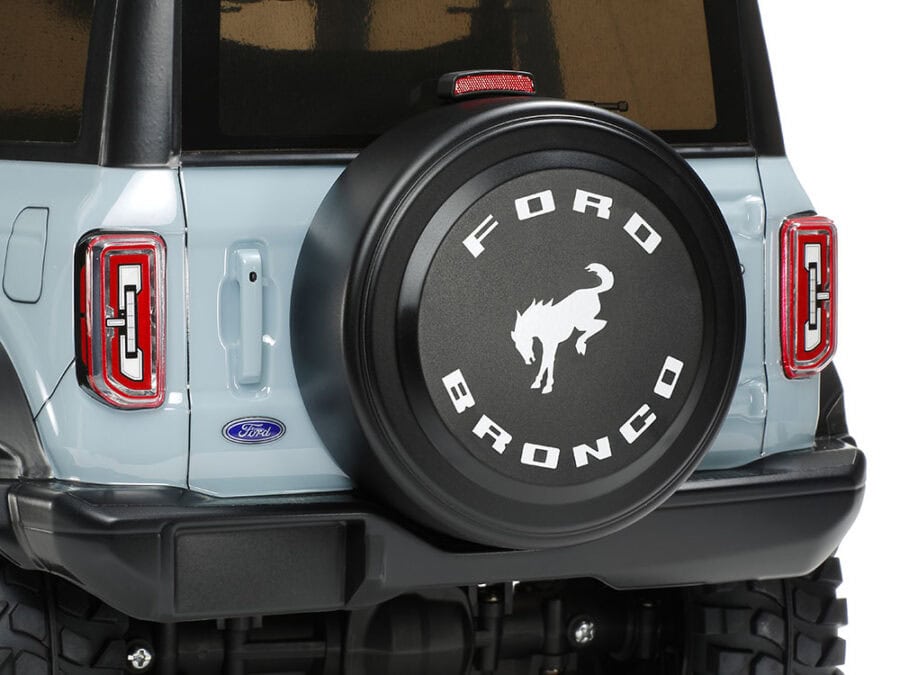

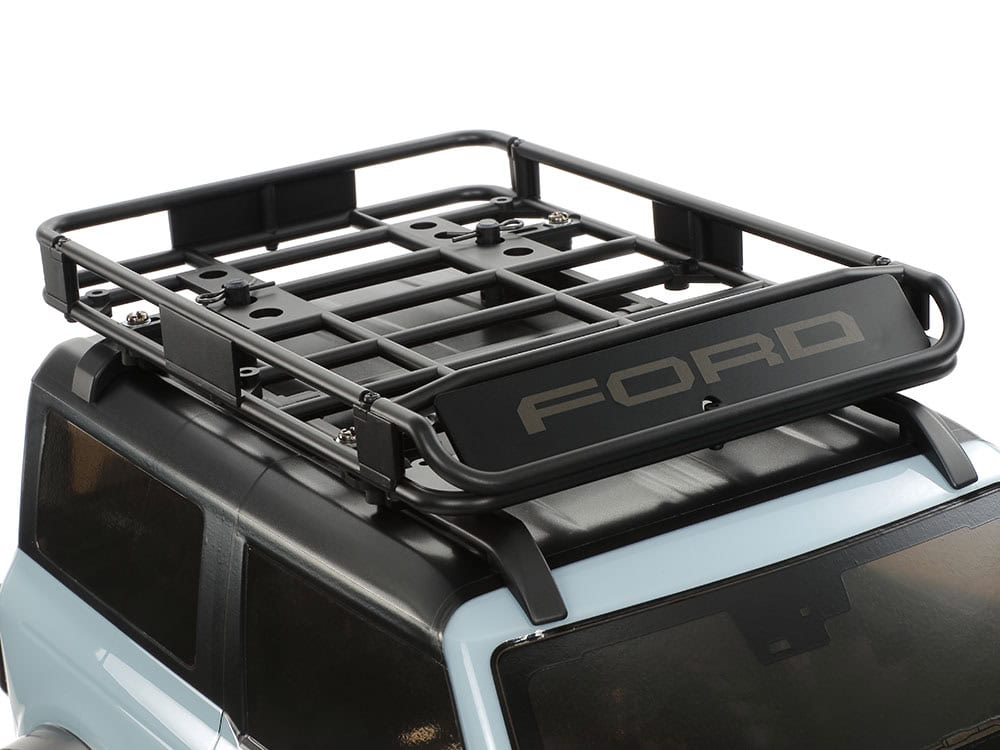

This R/C model assembly kit depicts a 2-door model of the Ford Bronco 2021, and features a realistic polycarbonate body that artfully depicts the car, with classic Bronco features such as the rounded headlights, oblong taillights and front fender-top indentations. Also included are separate parts for recreating a roof rack, the front grille, mirrors, spare tire covers and more. Front and rear light cases are plated parts, and can be fitted with separately sold LEDs.

【CC-02 Chassis – Off Road, Evolved】

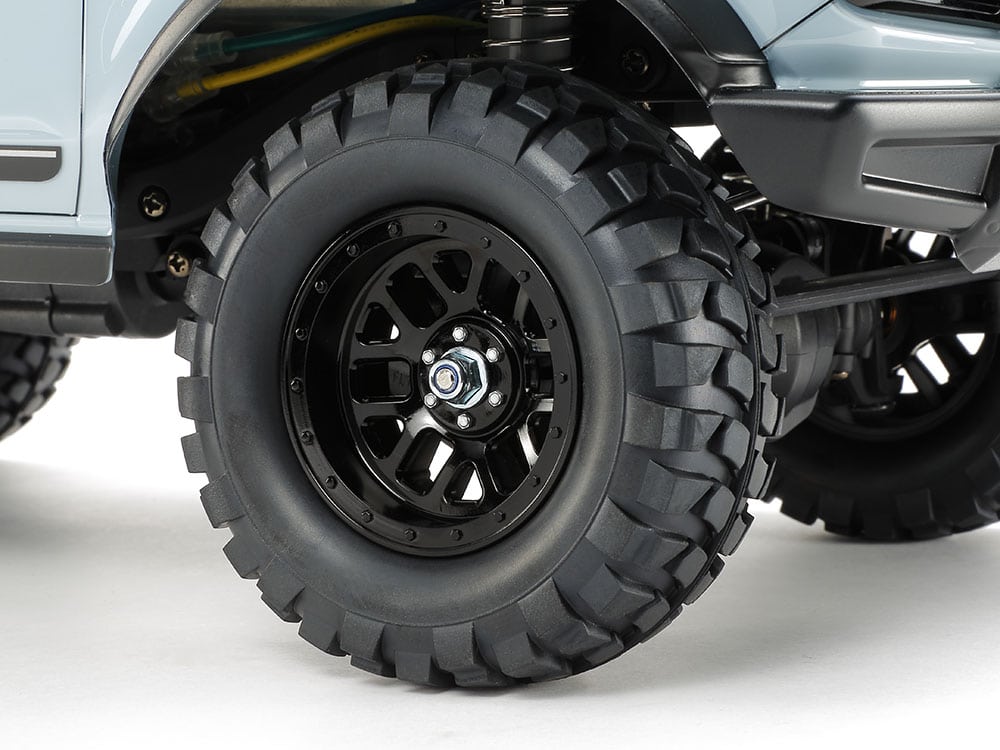

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with black six-spoke wheels and grippy block pattern tires.

【Specifications】

• Length: 447mm, width: 204mm, height: 233mm
• Wheelbase: 252mm
• Tread: 164mm (front), 167mm (rear)
• Tire width/diameter: 36/94mm (front & rear)
• Ladder frame
• Longitudinal motor, shaft-driven 4WD ★3-bevel differential gears
• 4-link rigid suspension (front & rear)
• Gear ratio = 17.33:1 (using kit-standard 16T pinion)
• Type 540 motor
• Electronic Speed Controller (ESC) is sold separately.

【Separately Required Items】

• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
