田宮 58706 1/10 RC遙控車 Thunder Shot (2022)

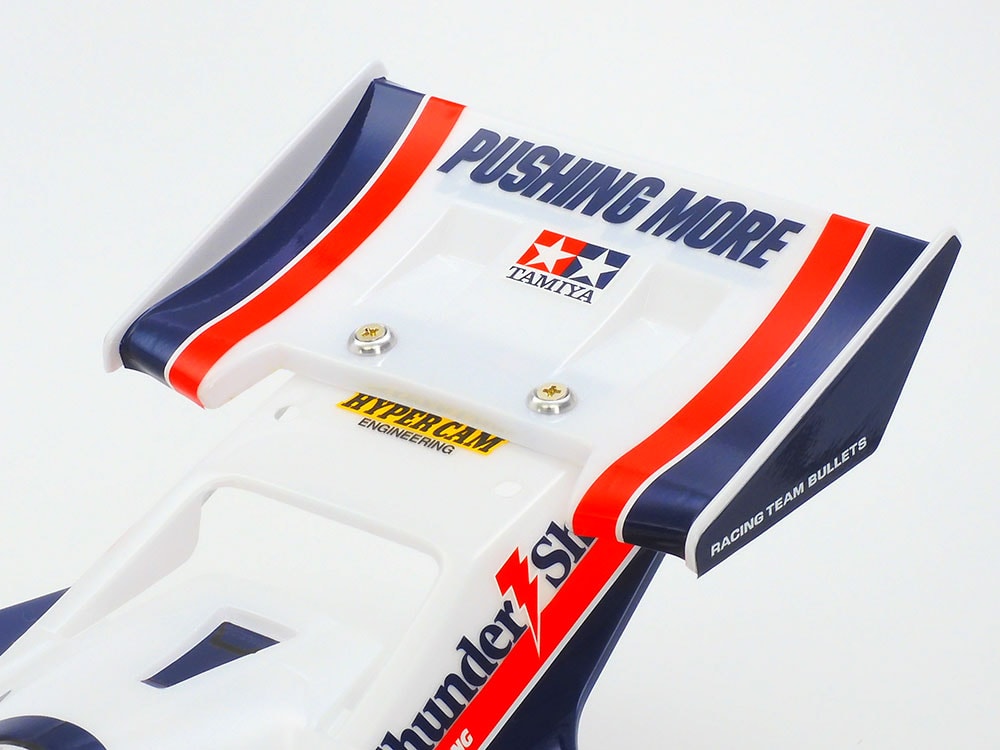

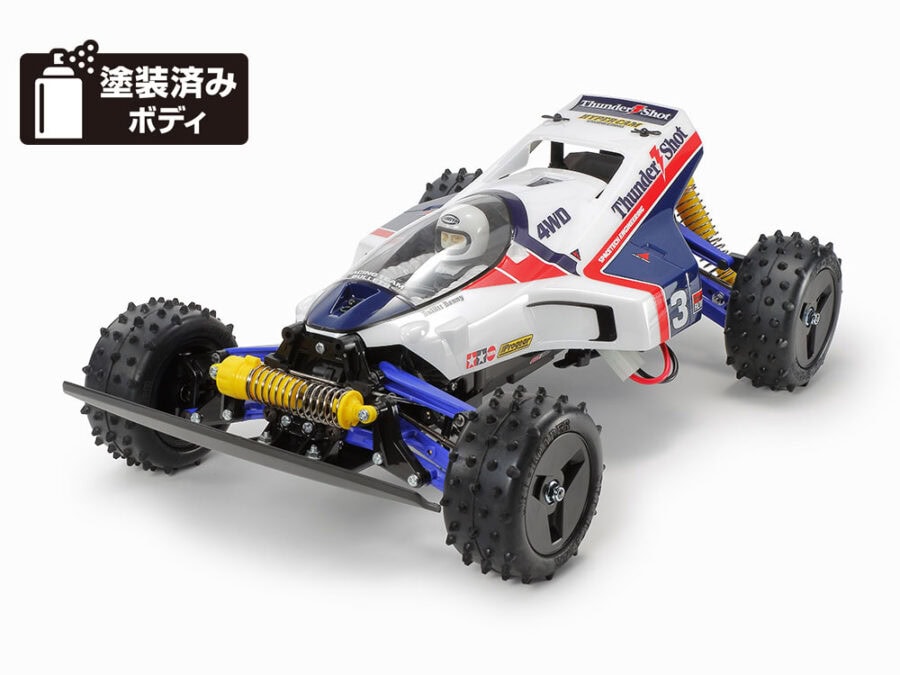

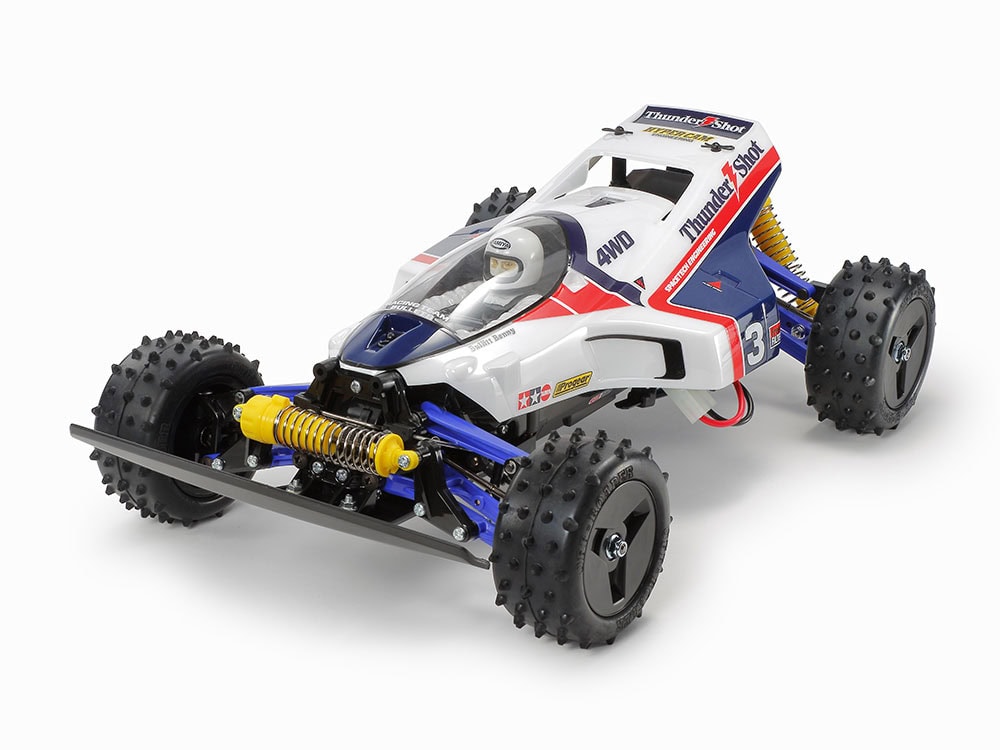

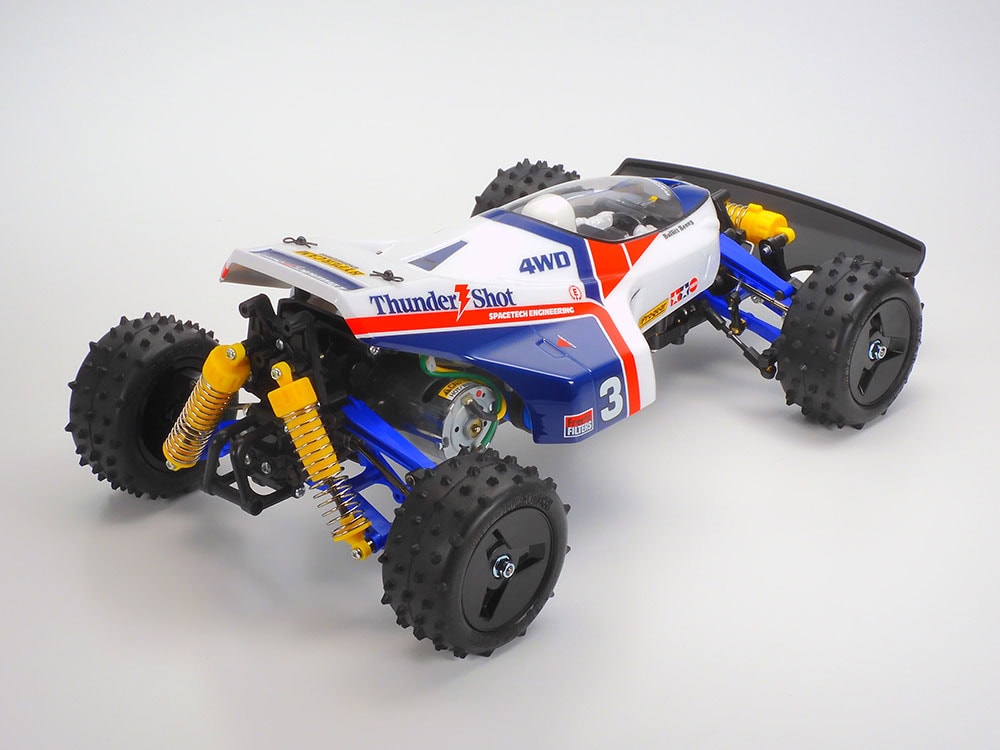

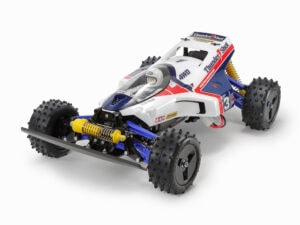

This R/C model assembly kit is a re-released and updated version of Thunder Shot, the original of which was first released in 1987. It features a stylish body molded in polycarbonate, which is pre-cut and pre-painted in white and blue, with a transparent canopy. An optional rear wing is also included to let you fine-tune the Thunder Shot (2022), also pre-painted and pre-cut.
【Smooth Shaft-Driven 4WD】

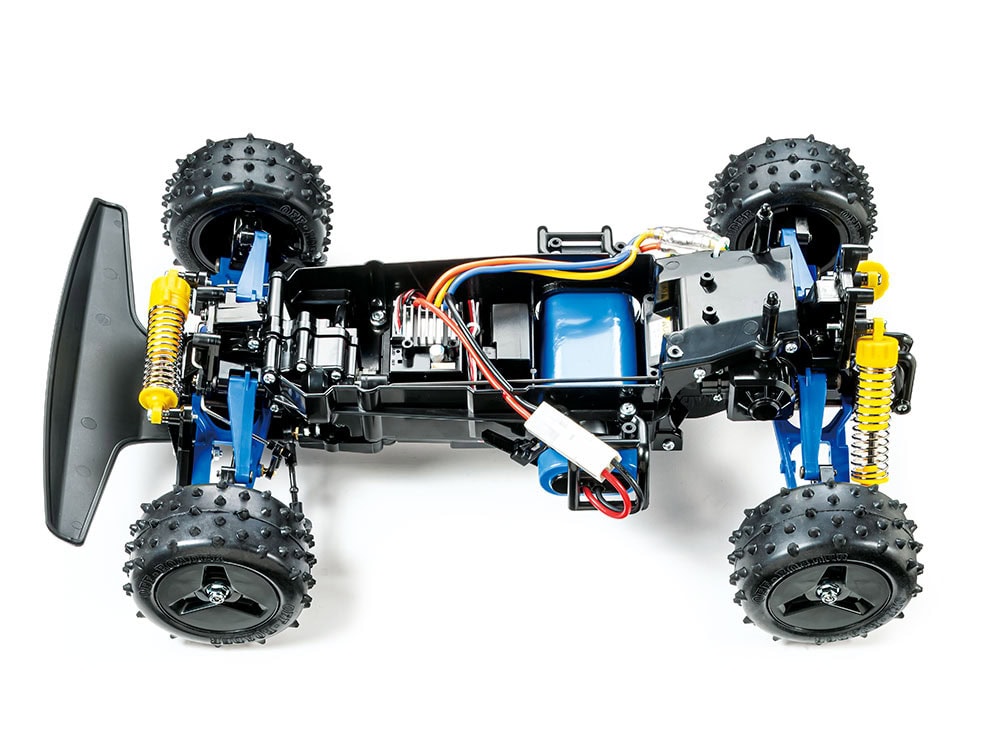

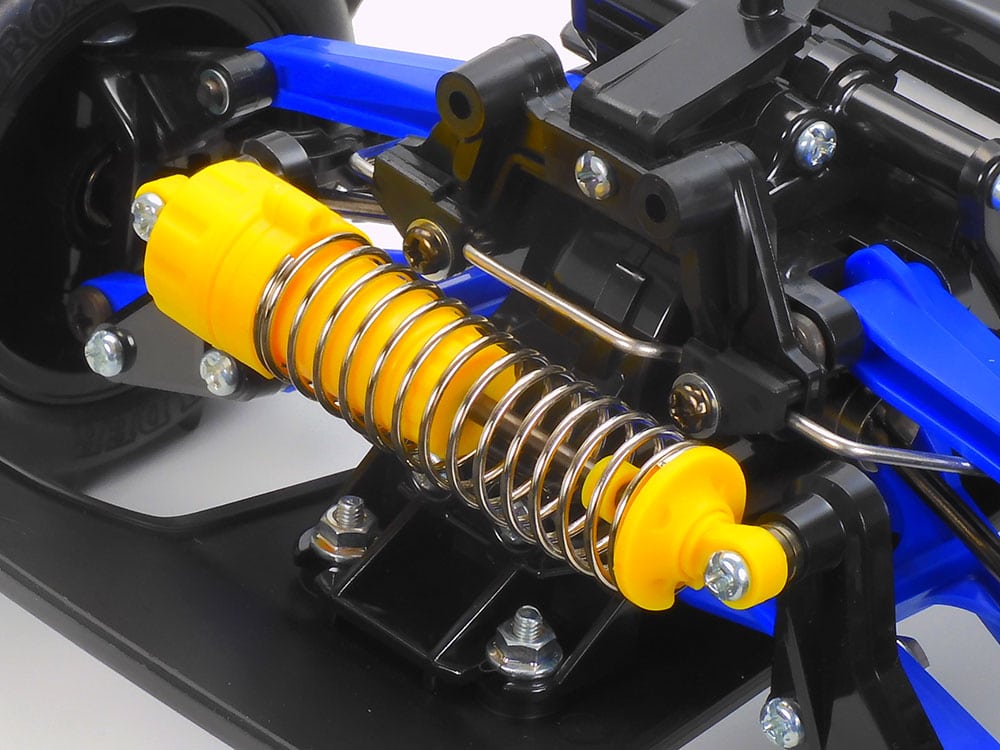

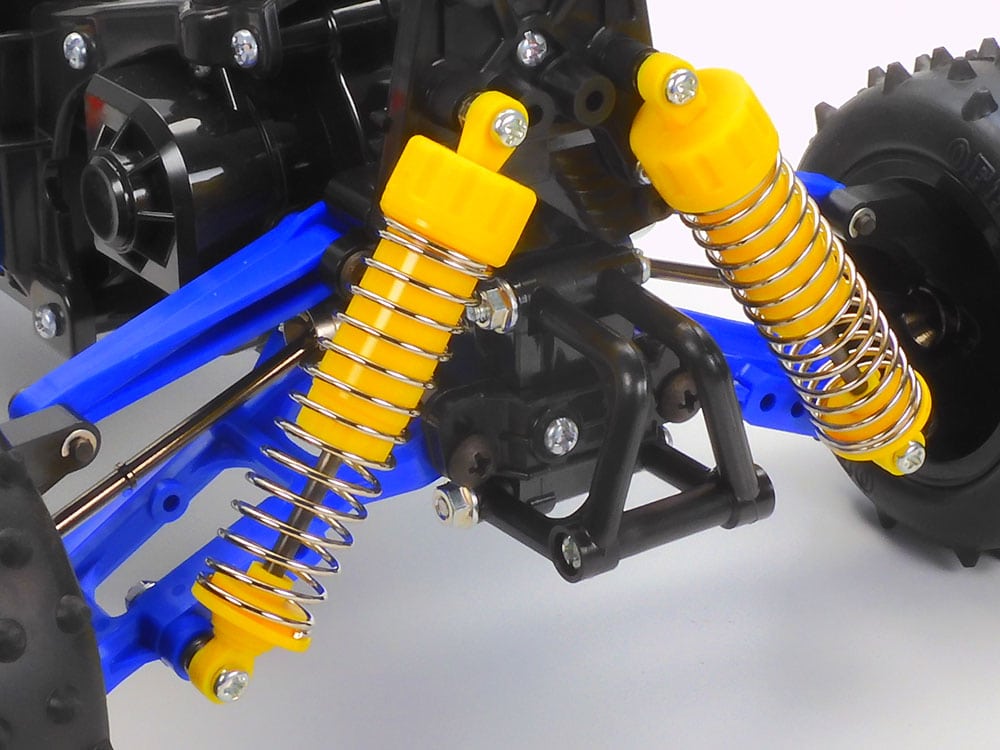

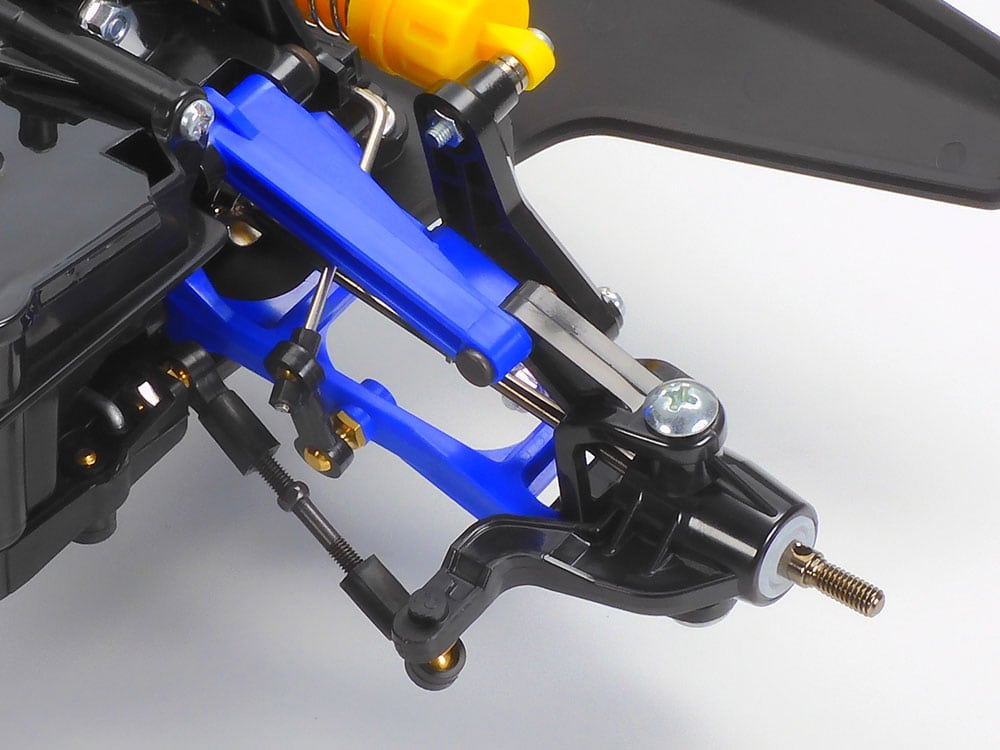

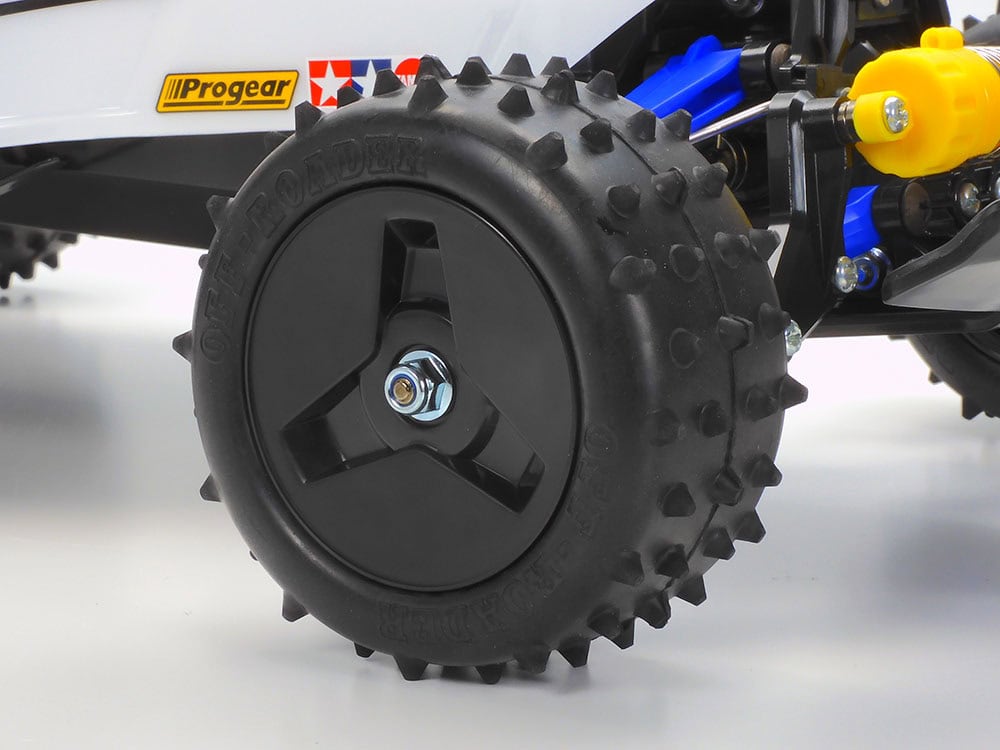

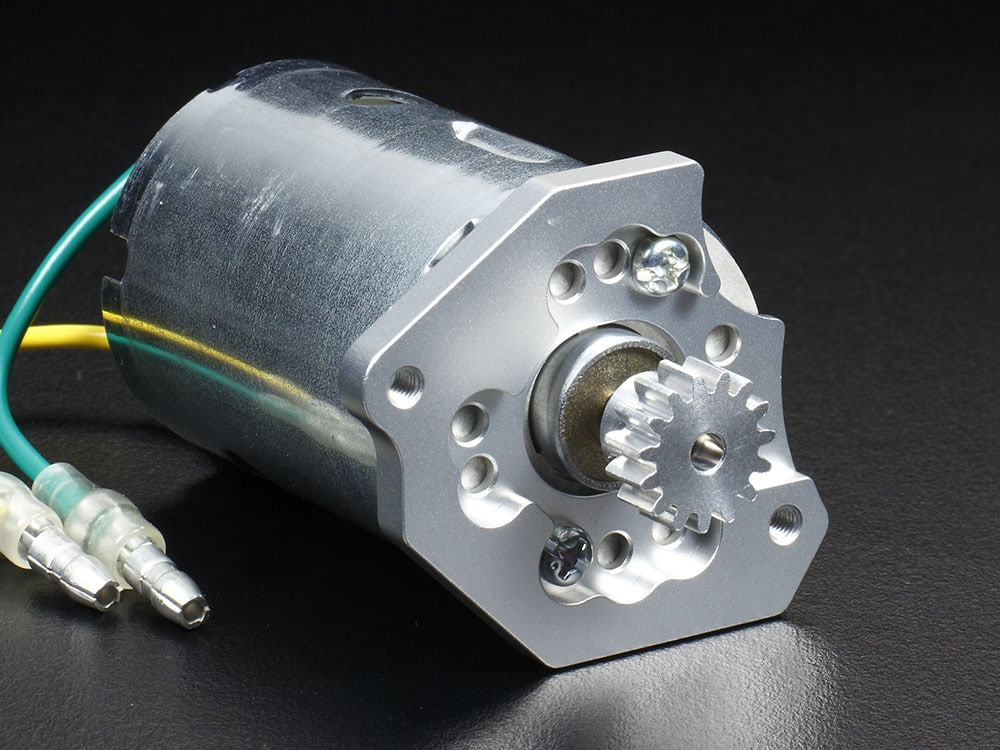

With a midship motor layout and shaft-driven 4WD setup, the chassis is based around a lightweight and rigid ABS plastic frame that stows R/C equipment internally and features gearbox units with internal differential front and rear that have the suspension attached to them. That four-wheel double wishbone suspension features upper “I” and lower “H” arms and packs a single CVA oil damper at the front, with a pair at the rear, plus a front stabilizer: the result is a smooth, flowing drive. Other features of note include an aluminum motor mount, plus grippy spike tires on all four corners.
- Length: 390mm, width: 240mm, height: 135mm
- Wheelbase: 260mm
- Ground clearance: 23mm
- Tread: 203mm (front), 194mm (rear)
- Tire width/diameter: 38/83mm (front/rear)
- Bathtub type frame
- Shaft-driven 4WD
- Front/rear 3-bevel differentials
- 3-piece steering tie-rod
- Front/rear independent double wishbone suspension
- Gear ratio = 7.68:1
- Type 540 motor
- Electronic speed controller (ESC) is sold separately.
【Separately Required Items】
- 2-channel R/C system w/ESC
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
