Tamiya 58726 1/10 RC XV-02RS PRO Chassis Kit

田宮 58726 1/10 RC遙控車 XV-02RS PRO 底盤套件

【On-Road Oriented Rally Chassis!】

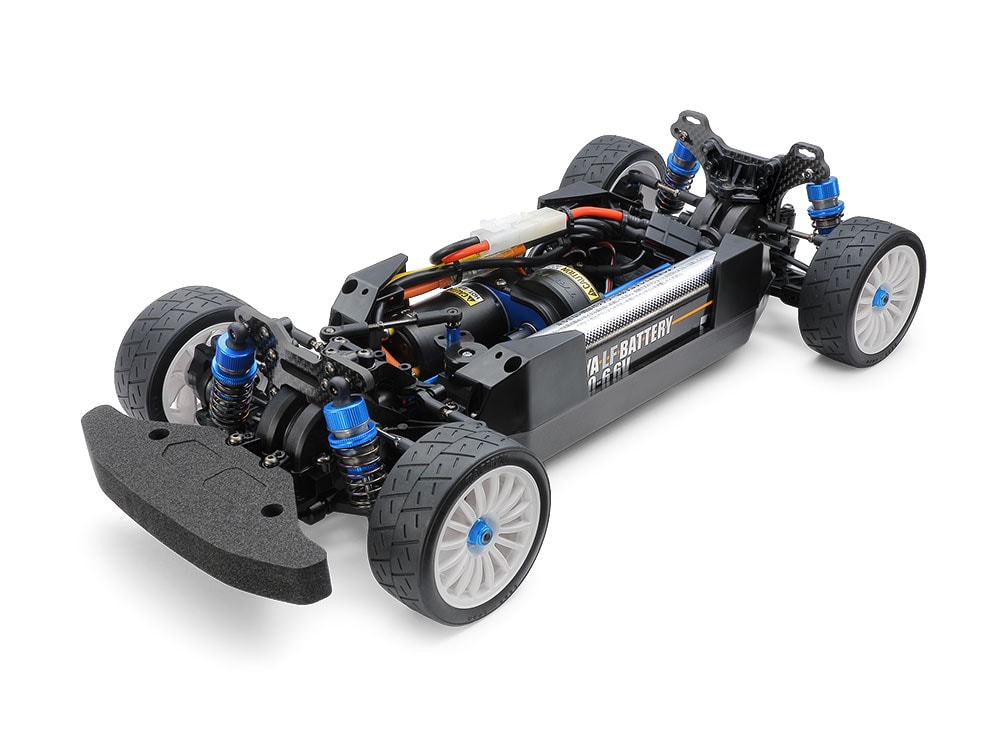

This 4WD touring chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear propeller shafts, and is ideally setup for on-road running. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis with carbon fiber-reinforced rigid lower deck. The 4-wheel independent double wishbone suspension has dedicated aluminum-cylinder oil dampers.

【Featured Components】

• Drivetrain: Full ball bearings, front and rear aluminum propeller shafts, front and rear oil-filled gear differentials (2x 39T and 1x 40T gears included), front and rear universal drive shafts
• Suspension: Front and rear aluminum oil dampers (blue caps, touring car size), 6-degree caster blocks, turnbuckle upper arms, 3.5mm thickness carbon damper stays
• Chassis: Carbon fiber-reinforced lower deck, aluminum servo mount, angled front bumper, hi-torque servo saver

【Specifications】

• Length: 368mm, width: 180mm
• Wheelbase: 257mm
• Carbon fiber-reinforced plastic bathtub frame
• Front midship motor, shaft-driven 4WD
• Front & rear oil-filled gear differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Aluminum cylinder oil dampers (blue caps, touring car size)
• Gear ratio = 7.00:1 using kit 26T pinion (14 ratios between 10.71:1 and 6.28:1 are possible with separately sold pinions)
• Electronic speed controller (ESC) is sold separately.

【Separately Required Items】

• 2-channel R/C system w/ESC
• Servo motor for steering
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

【以下需另購】

• 2ch 遙控裝置 & ESC電子變速器
• 轉向用伺服摩打
• 發訊器用AA電池
• 遙控車用充電池及充電器
