Name: Tamiya 84122 1/10 R/C Lotus Type 79 (F104W)
SKU: TA 84122
Availability: OutOfStock

描述

The Innovative Wing Car

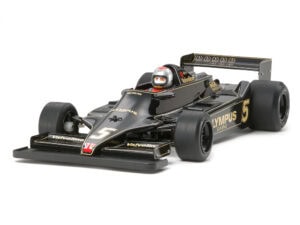

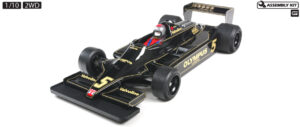

This is a ready to assemble electric powered R/C model of the Lotus Type79 “wing car,” which recorded a pole-to-finish win on debut at the 1978 Belgian GP as well as help Lotus claim both drivers’ and constructors’ titles. The polycarbonate body recreates the “Black Beauty’s” graceful form and a sticker sheet depicts its classic pinstripe livery. Set includes separately-molded parts that depict the side pontoon front tips parts, front and rear wing panels, and driver. The Black Beauty comes loaded on the direct drive 2WD F104W chassis.

F104W Chassis
The F104W chassis features a double-deck frame equipped with 2.0mm upper and 3.2mm lower FRP decks and has the battery placed in a longitudinal position to allow for a slim body design. F103 front suspension arms are incorporated to accurately replicate the wide dimensions of this classic 1970s race car. Front suspension features an independent kingpin/coil spring while rear features a proven 3-point suspension with the combination of friction plates and a coil spring. The highly efficient direct drive 2WD features the motor pinion directly connected to the spur gear which has a built-in ball differential. Realistic semi-pneumatic rubber tires are equipped with inner sponges.

■F103 front suspension arms are used to reproduce the wide body dimensions of this classic 1970s race car. The semi-pneumatic rubber tires also feature a realistic finish.

■Double FRP decks with a longitudinal battery position. Gear case is designed to enable ground clearance adjustment.

Specifications
●Length: 461mm　●Width: 205mm　●Height: 94mm　●Weight: 800g　●Wheelbase: 270mm　 ●Tread＝F: 170mm, R: 156mm　●Tire Width/Diameter＝F: 31/56mm, R: 50/67mm　●FRP Half Double Deck Chassis ●Horizontally-mounted motor rear direct drive 2WD　　●Ball Differential Gear　●Isometric Steering Tie-Rods ●Suspension＝F: Kingpin/Coil Spring, R: T-Bar Rigid　●Gear Ratio＝4.16:1 (25T Pinion with 104T Spur Gear)　 ●Type 540 Motor Included　●Requires Electronic Speed Controller (sold separately)

額外資訊

重量	8 公斤
遙控車底盤	F104W , F104

評價 (0)

商品評價

目前沒有評價。

只有註冊並且購買過商品的顧客才能撰寫評價。
