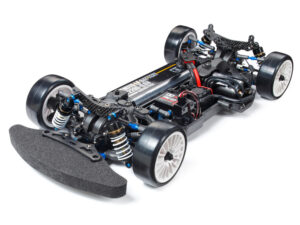

Tamiya 84412 1/10 R/C TB-04R Chassis Kit

$2,790.00

已售完

貨號: TA 84412 分類:
描述
This TB-04 Variant is Raring to Race!

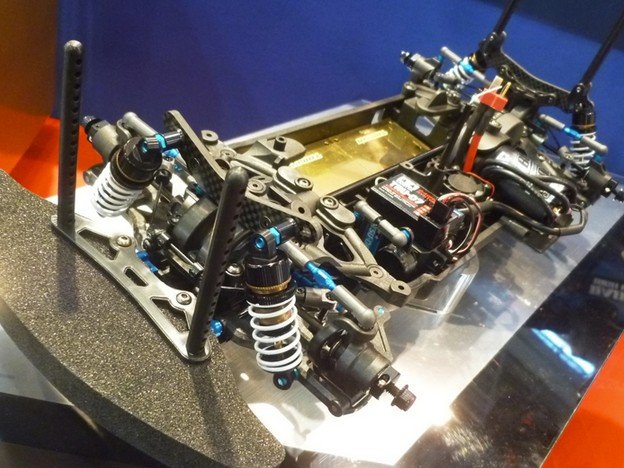

This R/C model assembly kit features the efficient shaft-driven 4WD TB-04 chassis loaded with high performance parts. Main plastic parts have been replaced with carbon fiber reinforced resin equivalents for improved rigidity. Aluminum suspension mounts plus TRF418 design suspension arms and uprights are married with TRF big bore dampers for consistently superior grip, while an aluminum steering bridge and linkage give highly direct response. The chassis utilizes a front direct-drive and rear gear differential unit setup with aluminum propeller shaft, pilot shafts and transmission shaft further slashing power wastage. With around thirty different option parts specially selected by the Tamiya Racing Factory team themselves, the TB-04R is a race-happy chassis that you’ll just love to drive!


★Left: TRF big bore dampers have a 10% greater capacity. The kit uses specially designed carbon damper stays.

★Right: Suspension arms and uprights use the same trusted, high-performance design as those on the TRF418.


★Left: The chassis utilizes a combination of front direct drive and rear gear differential unit.

★Right: The included battery ballast weights are invaluable for getting the balance of the car just right.



Featured Components
●TRF418 Design Suspension Arms, Front/Rear Uprights ●Lightweight Universal Shafts (Rear, 2pcs.) ●Hex Head Screws ●TRF Big Bore Dampers (Black) ●TB-04R Front Carbon Damper Stay (3mm Thick) ●TB-04R Rear Carbon Damper Stay (3mm Thick) ●Aluminum Suspension Mounts (1A x2, 1XB, 1D) ●Carbon Reinforced Lower Deck, A, C, D, E, F, K and T Parts ● TB-04 Aluminum High-Geared Motor Adapter (Black) ●TB-04 Front Direct Coupling ●Hard-Coated Aluminum Pinion Gear (25T) ●Rear Gear Differential Unit (Aluminum Differential Joints and Cross Shaft) ●Aluminum Steering Bridge (Black) ●Aluminum Steering Arms (L/R, Black) ●Front Double Cardan Drive Shafts (44mm) ●Aluminum Turnbuckle Shafts ●Full Ball Bearings ●Aluminum Propeller Shaft



Specifications
●Length: 381mm, Width: 185mm ●Wheelbase: 257mm　●Bathtub-type Frame ●Shaft-Driven 4WD w/Horizontally-Positioned Motor ●Front Direct-Drive ●Rear Gear Differential ●4-Wheel Double Wishbone Suspension ●Front/Rear TRF Big-Bore Dampers ●Gear Ratio = 6.80:1 (with kit-included 25T pinion; 10 further ratios from 7.86:1 to 5.50:1 possible with use of separately-sold pinions) ●Requires Type 540 Motor and Electronic Speed Controller (sold separately)



Separately Required Items
★1/10 Scale Body ★Type 540 Motor ★Wheels ★Tires ★2-channel R/C system with ESC ★Batteries for transmitter ★Battery Pack and Charger
額外資訊
重量8 公斤
遙控車底盤
