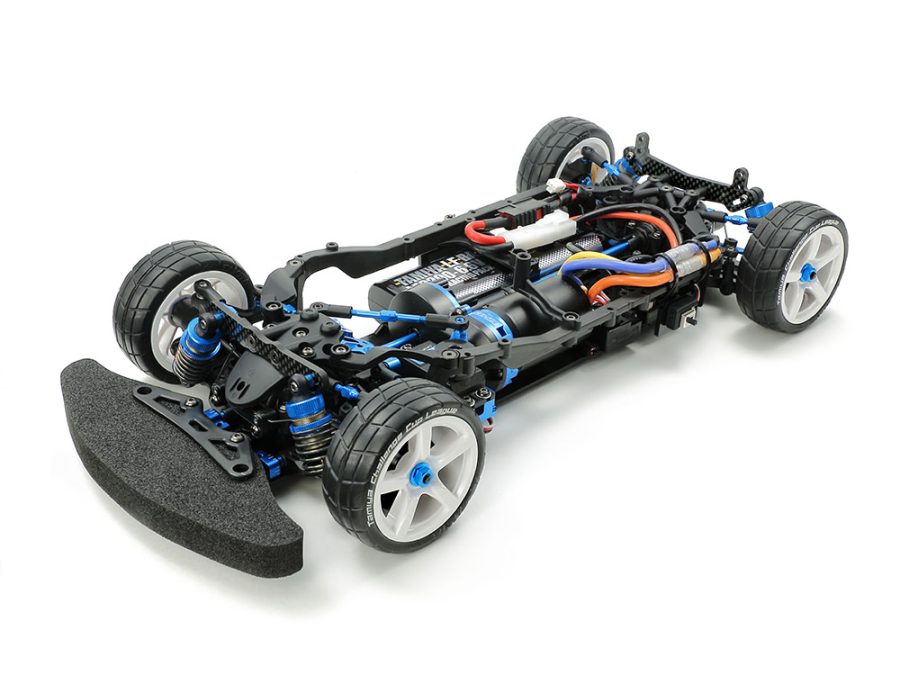

Tamiya 47456 1/10 R/C TB-05R Chassis Kit

田宮 47456 1/10 RC遙控車 TB-05R 底盤套裝

Refined Shaft-Driven 4WD Racer

This R/C model assembly kit features the efficient shaft-driven 4WD and symmetrical structure of the TB-05 chassis which facilitates efficient drive, and soups it up with extra high performance parts to make it great for racing. The TB-05R motor is set in the front, and this kit uses a dedicated motor mount and carbon reinforced chassis. Its adjustable suspension is the TRF420 design with TRF super short big bore dampers+, and it combines with the rigid chassis to provide stable and speedy cornering. Also, the 3mm rearward motor position helps keep balance. This kit has not only quick response but also superior drivability.

Featured Components

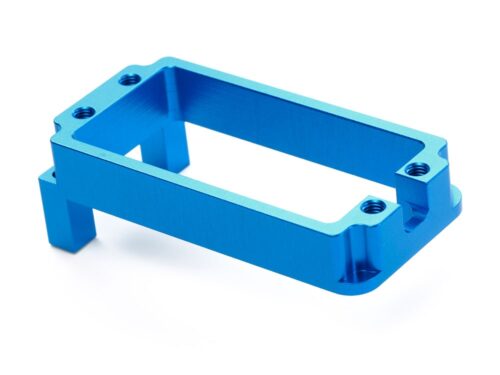

• Aluminum motor mount
• Carbon fiber-reinforced chassis

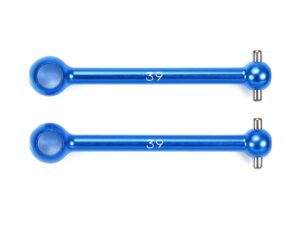

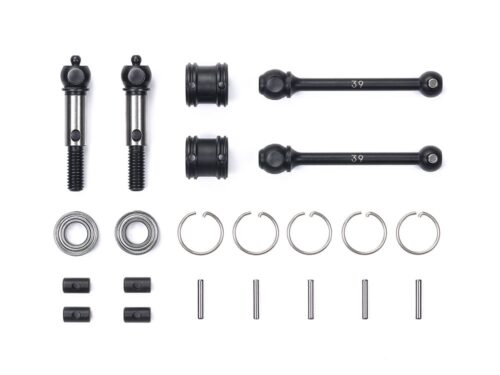

• Drive shafts for 39mm double cardan shafts

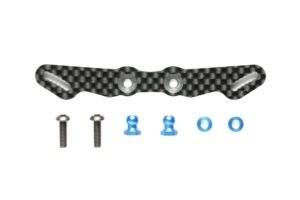

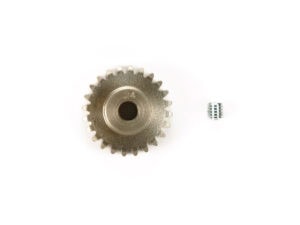

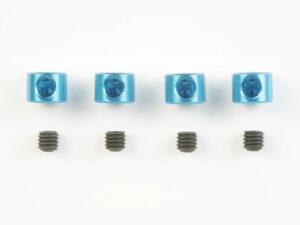

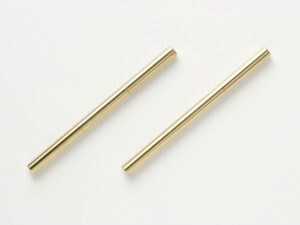

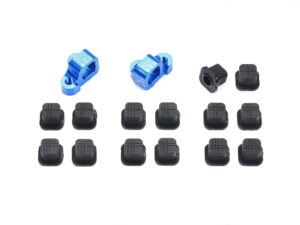

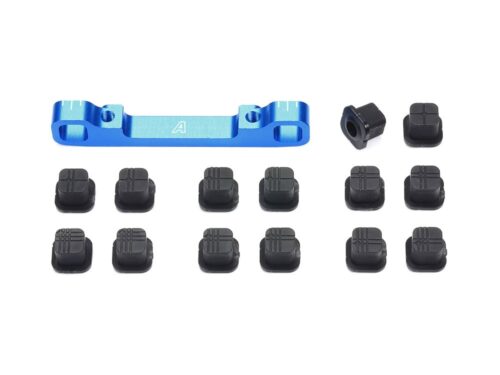

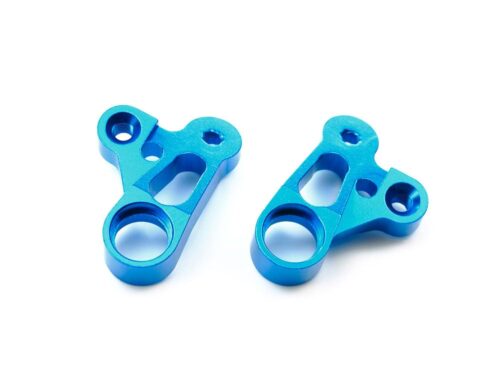

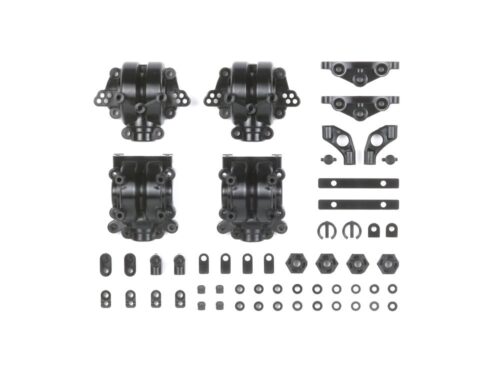

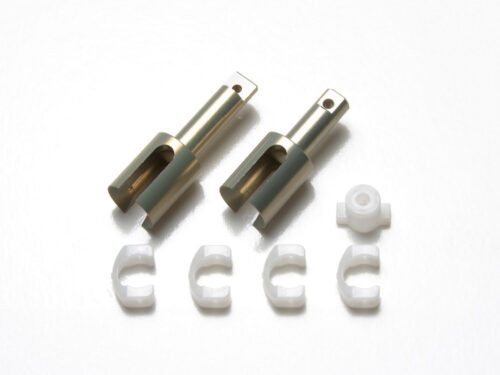

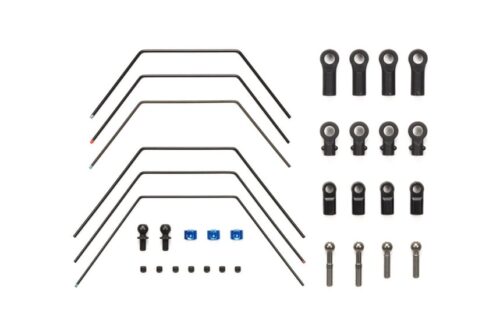

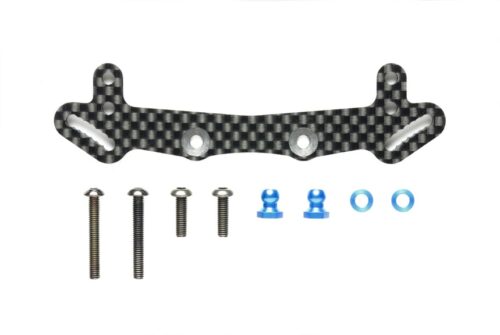

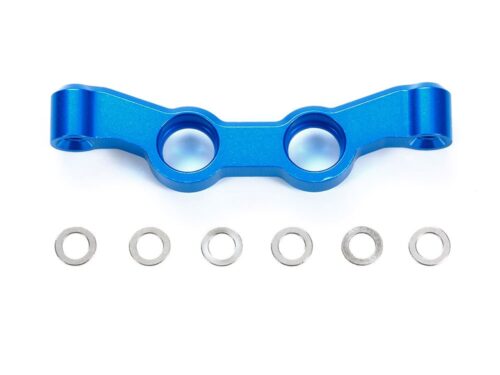

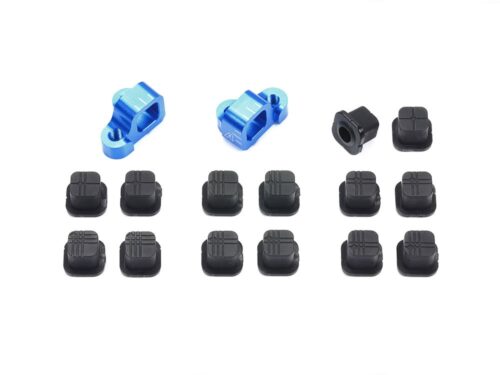

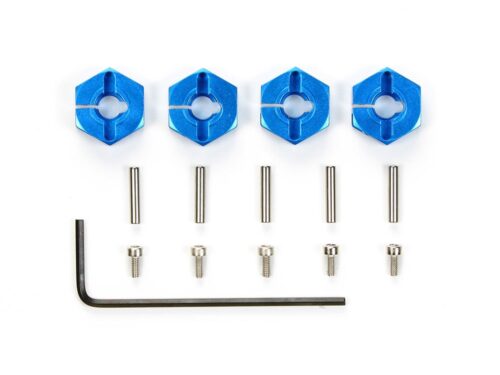

• Kit standard option parts (shown below)

Specifications

• Length: 368mm, Width: 182mm
• Wheelbase: 257mm
• Monocoque with integrated lower deck and upper frame
• Shaft-driven 4WD
• Front & rear oil-filled gear differentials
• 3-Piece steering tie-rod

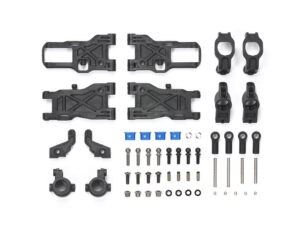

• 4-wheel independent double-wishbone suspension

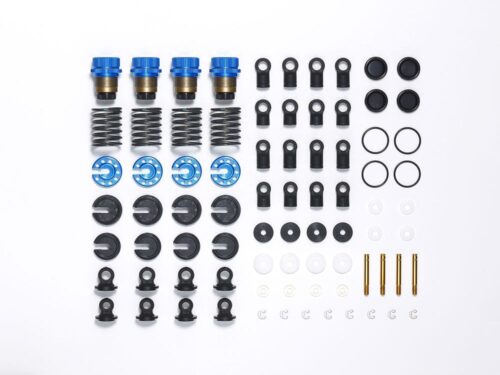

• TRF Super Short Big Bore Dampers+

Separately Required Items

• Body
• Type 540 motor
• Wheels
• Tires
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
