Tamiya 56362 Volvo FH16 Globetrotter 750 8×4 Tow Truck

田宮 56362 1/14 RC遙控貨車 富豪汽車 FH16 Globetrotter 750 8×4 拖車

To the Rescue!

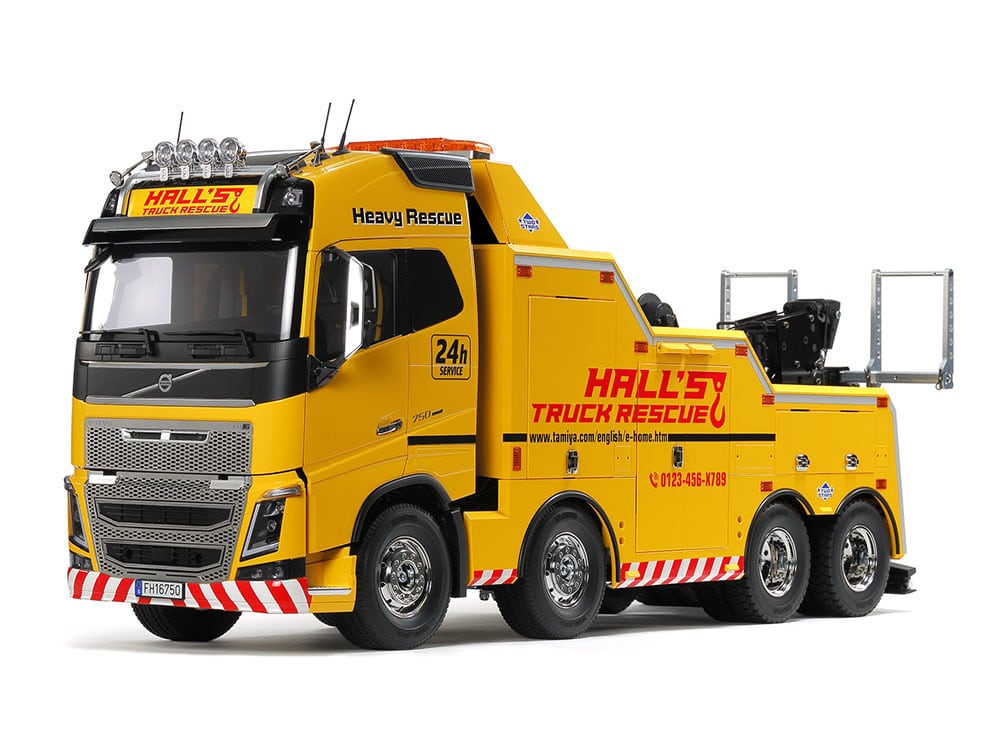

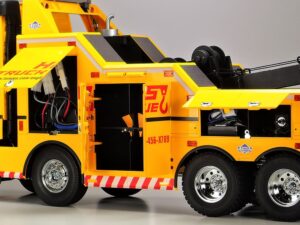

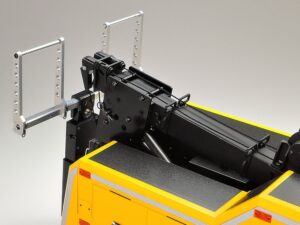

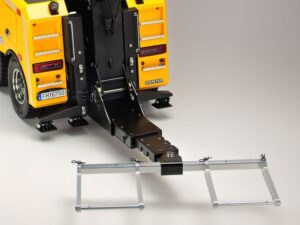

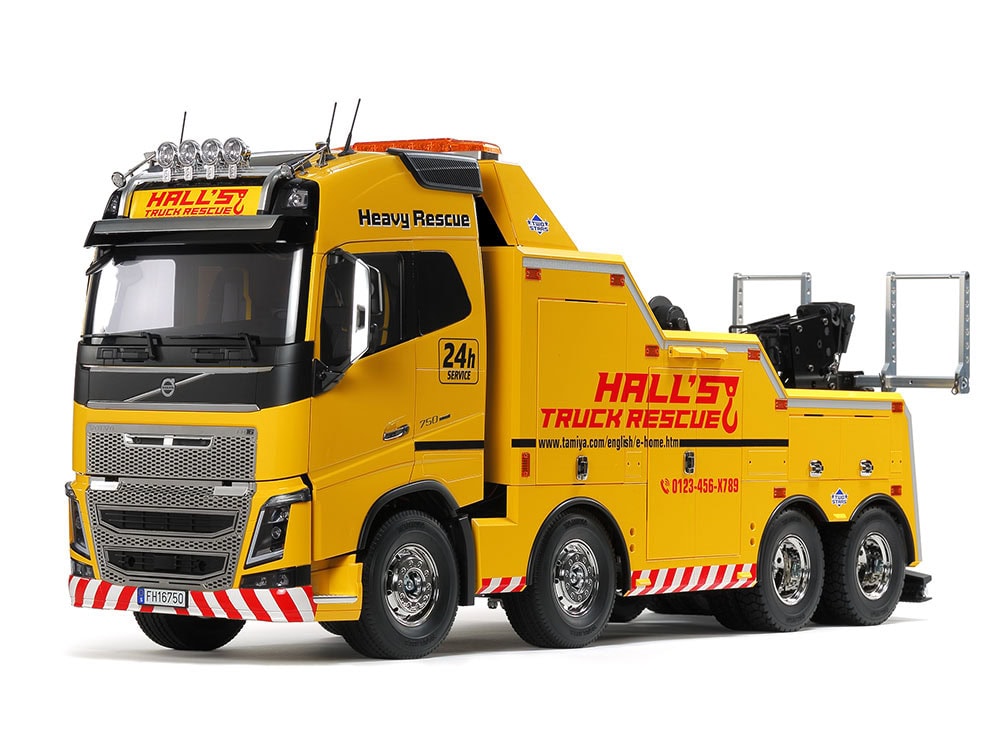

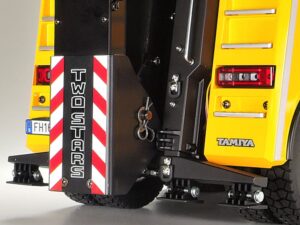

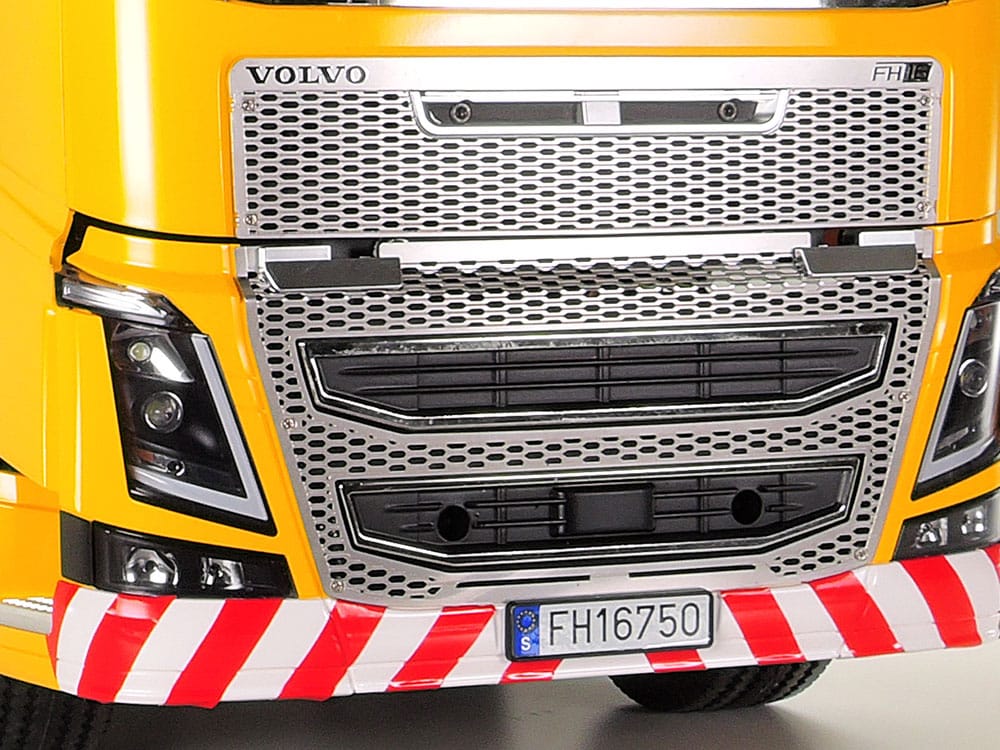

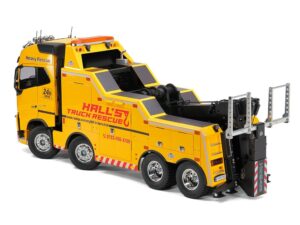

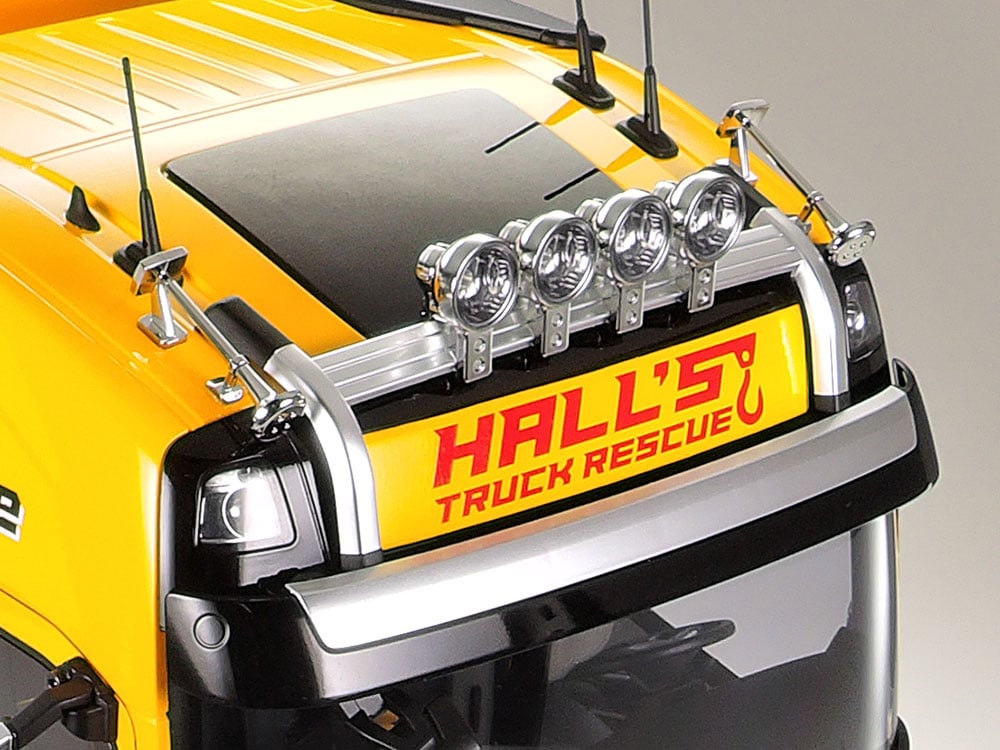

Volvo is a renowned actor in the global commercial vehicle market, with one of their flagship brands being the FH Series that underwent a full model change in 2012. This R/C model assembly kit recreates the 750hp engine FH16 Globetrotter 750 8×4 tow truck from that range. The model has a realistic cab and body, the former featuring a photo-etched front grille and interior details, the latter opening doors. Its fascinating towing mechanism uses plenty of metal parts and winch boom, underlift and outriggers are movable manually. The front mounted TR Mighty Tuned motor (35T) provides ample power to the two rear axles, via a three-speed transmission. Gear changes are also possible via transmitter controls, and the model can tow subjects such as 1/14 scale R/C tractor trucks.

Specifications

• Length: 732mm, Width: 199mm, Height: 309mm, Weight (with R/C equipment and battery pack): Approx. 5.9kg
• Wheelbase: 155 + 245 + 103mm
• Tread: 155mm (Front), 138mm (Rear, Double Tire)

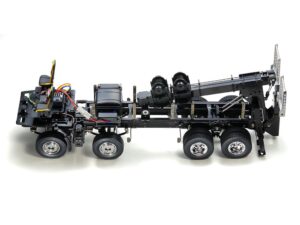

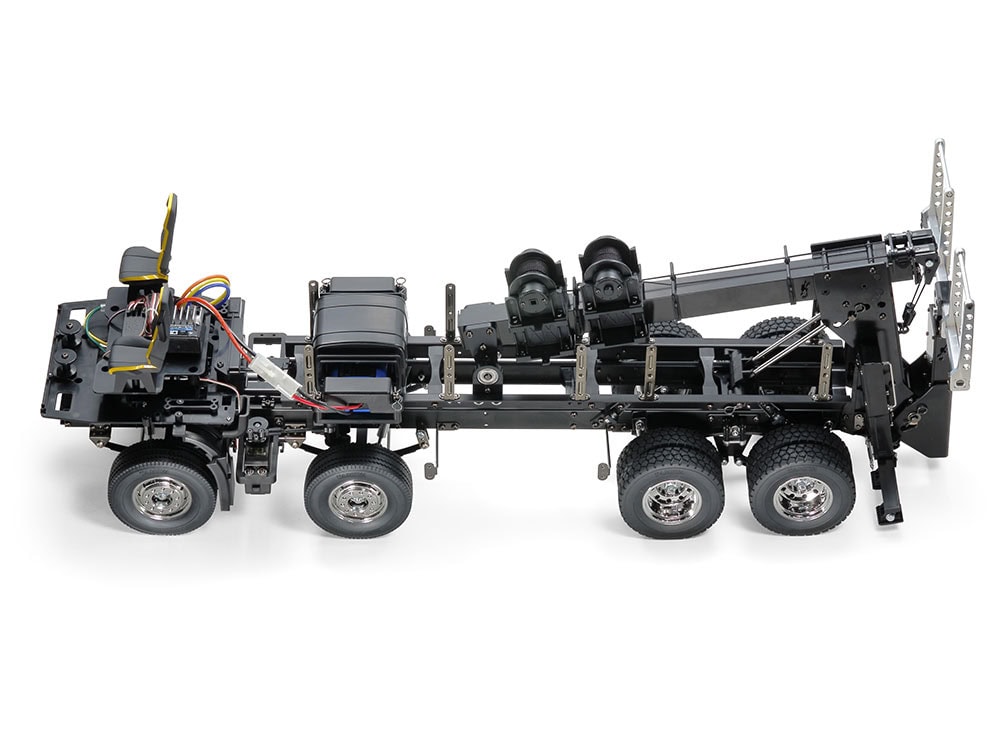

• Chassis: Aluminum & Polycarbonate Resin Ladder Frame

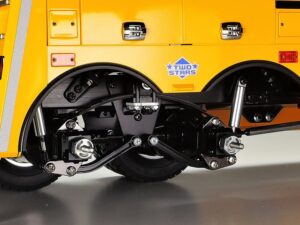

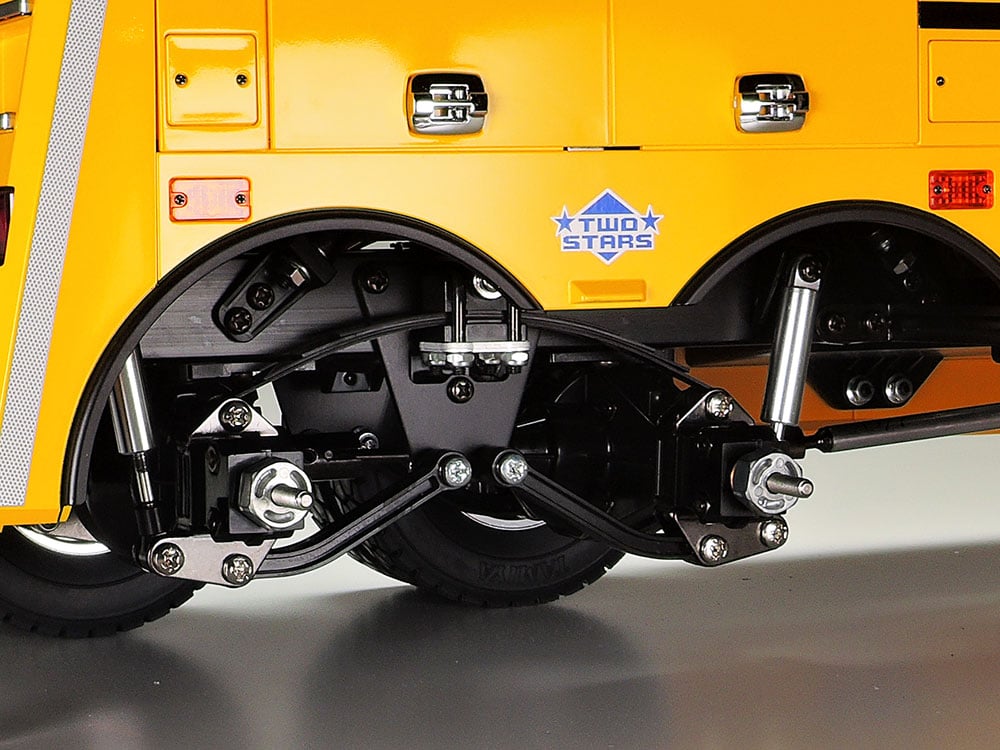

• Suspension: Front/Rear Leaf Springs
• Caster Angle: 0° (Front & Rear)
• Camber Angle: 0° (Front & Rear)
• Toe Angle: 0° (Front & Rear)
• Dampers: Aluminum Dummy Dampers
• Drivetrain: Rear Double Axle Drive
• Transmission: 3-gear transmission (shifts operated via transmitter)
• Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
• Diff. Gear: 3-bevel differentials
• Motor: TR Mighty-Tuned (35T)

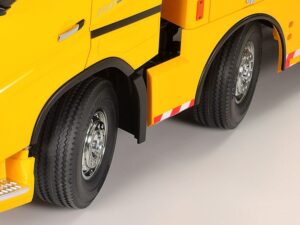

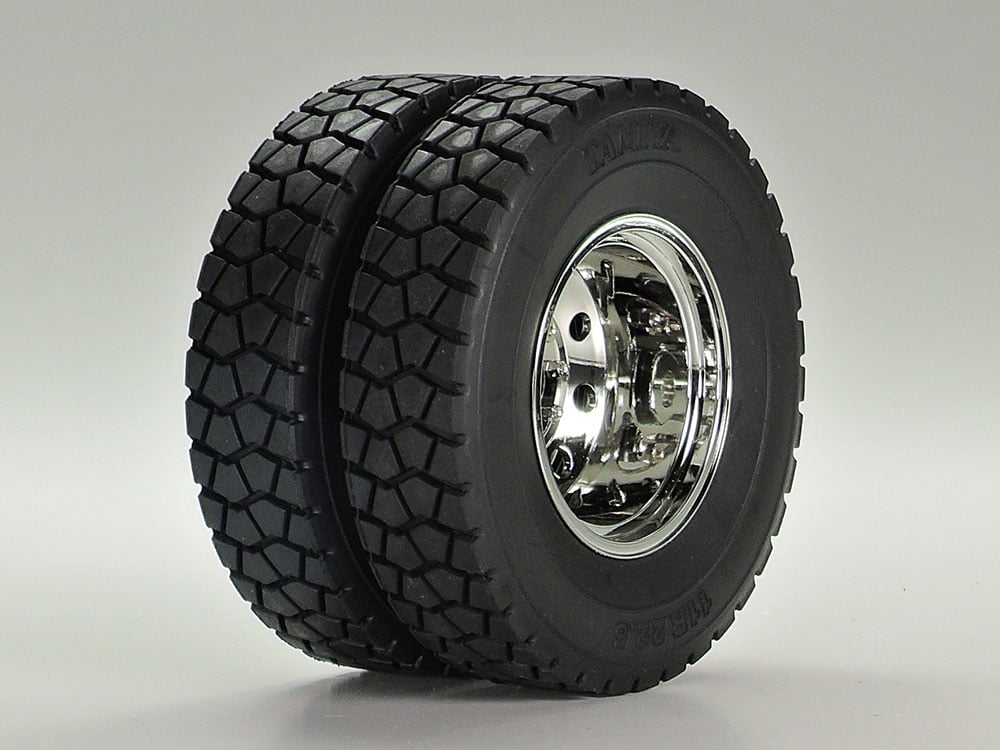

• Tire Width/Diameter: 30mm/85mm (Front), 22mm/84mm (Rear)

Separately Required Items

• 4-Channel R/C System with slide trim levers and self-neutral sticks
• Servos x2
• ESC or Multi-Function Control (MFC) Unit
• R6/AA/UM3 batteries for transmitter
• Battery Pack & Charger

Optional Extras for Ultra Realism

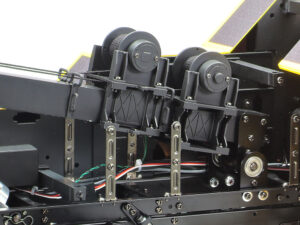

This separately sold set allows raising of the winch boom and underlift via R/C controls. It uses a precision geared motor and spindle cylinder, plus the ACU-02 unit, and also features a toggle switch for manual control.

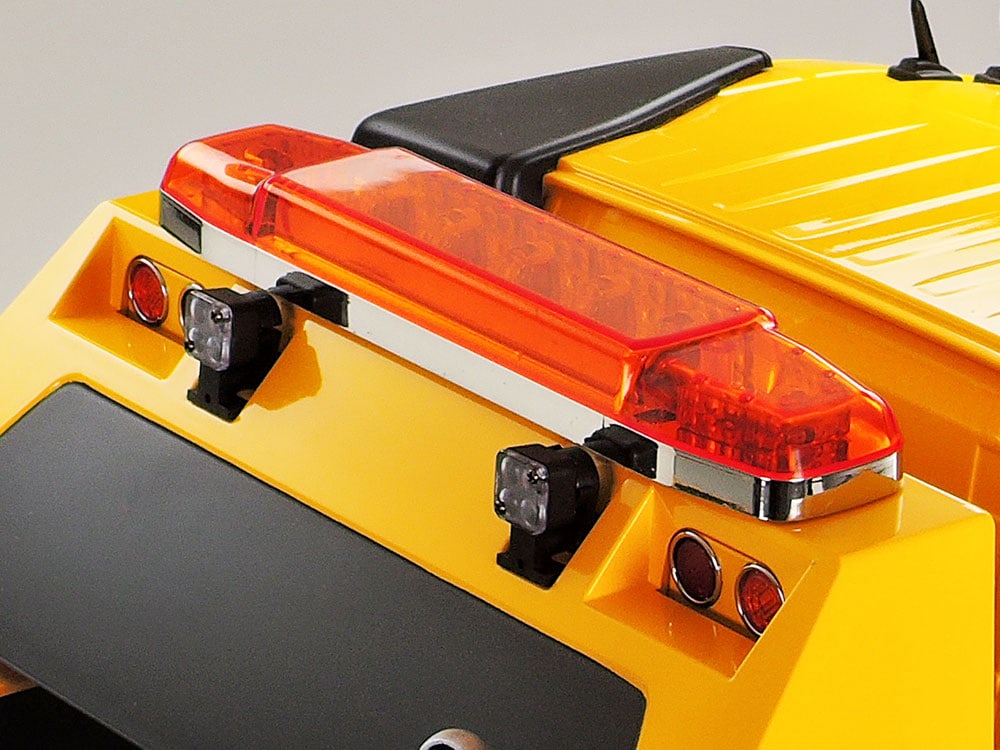

Tamiya Multi-Function Control Units (sold separately) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from actual trucks, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.
