田宮 57986 1/10 RC遙控車底盤套裝 (平路車 TT-02底盤)
[Since some of the parts are in a completed state, it is ideal for those who are assembling an RC car for the first time!]
Good news for fans who want to try an RC kit but think that it is a little difficult to assemble everything from the beginning. It is a chassis kit of an electric RC car with the part that takes the part set in the completed state. It can be assembled at a good tempo, so it is also ideal as a work kit for parents and children to challenge. Basic 4WD touring car chassis with excellent steering stability, TT-02 Is the base. Assemble the suspension and install the motor and RC system to complete it. Since you assemble it yourself, you can understand the structure of the RC car well, and the work for setting and improving the performance is smooth. Of course, the RC system and body It is also attractive that you can choose freely. Now, let’s try the RC kit that is not fun!
The below parts are already assembled:
- Front and rear differential gear
- Steering wiper
- Spa gear & propeller shaft
- Front and rear damper

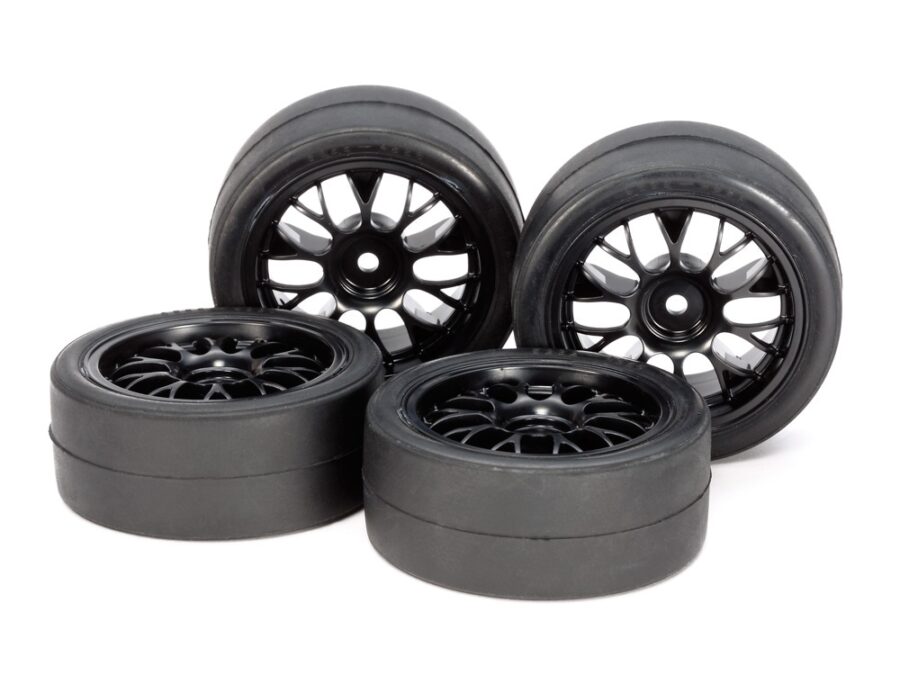

- Wheel bonded tire

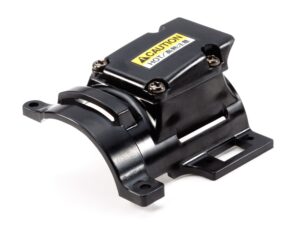

- Motor mount & pinion gear etc.
※Other parts required for assembly are also set.
[RC system and body can be freely selected]
It is also a point that the body can be freely selected. From racing cars with a perfect running mood to sports cars seen in the city, high-performance super cars. Please find your favorite from the 1/10 RC touring car body that has abundant up to and paint it. You can also choose the RC system yourself, but we recommend our “Basic RC Equipment Bundle“. Interference A 2.4GHz 3-channel transmitter and receiver, a 7.2V battery with a charger, and a servo motor are also included.
[Basic specifications]
- Chassis total length 376mm, chassis width 182mm
- Wheel base 257mm
- Tire width / diameter = 27 / 67mm for both front and rear
- Frame = bathtub type
- Drive system = vertical motor / shaft drive 4WD
- Diff gear = resin 4 bevel for both front and rear type
- Steering = 3-split tie rod type
- Suspension = 4-wheel double wishbone
- Damper = Friction on both front and rear
- Gear ratio = Kit standard 8.27: 1 (10 types from 11.38: 1 to 7.28: 1 in combination with optional pinion Gear ratio can be selected)
- Motor = 540 type
[Required separately]
- 1/10 Touring car body
- Driving battery and RC device (including transmitter battery) are sold separately. (“Basic RC Equipment Bundle” is recommended.)
