Tamiya 69931 Chain-Program Robot (Blue & Yellow)

田宮 69931 鏈條編程機械人 (藍&黃色)

【Try programming with this refreshing robot!】

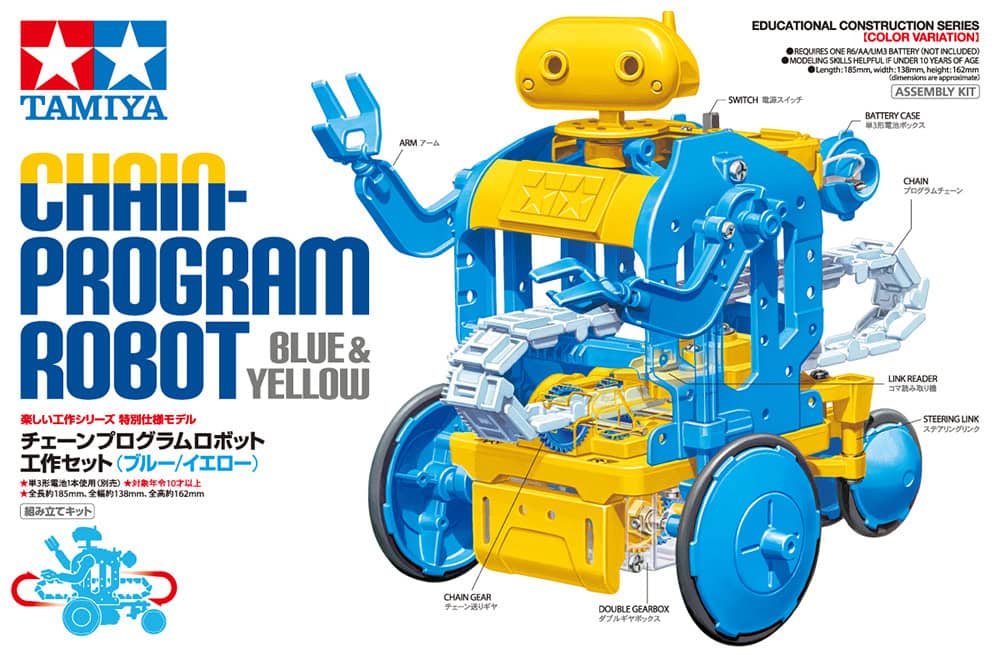

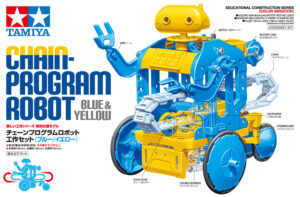

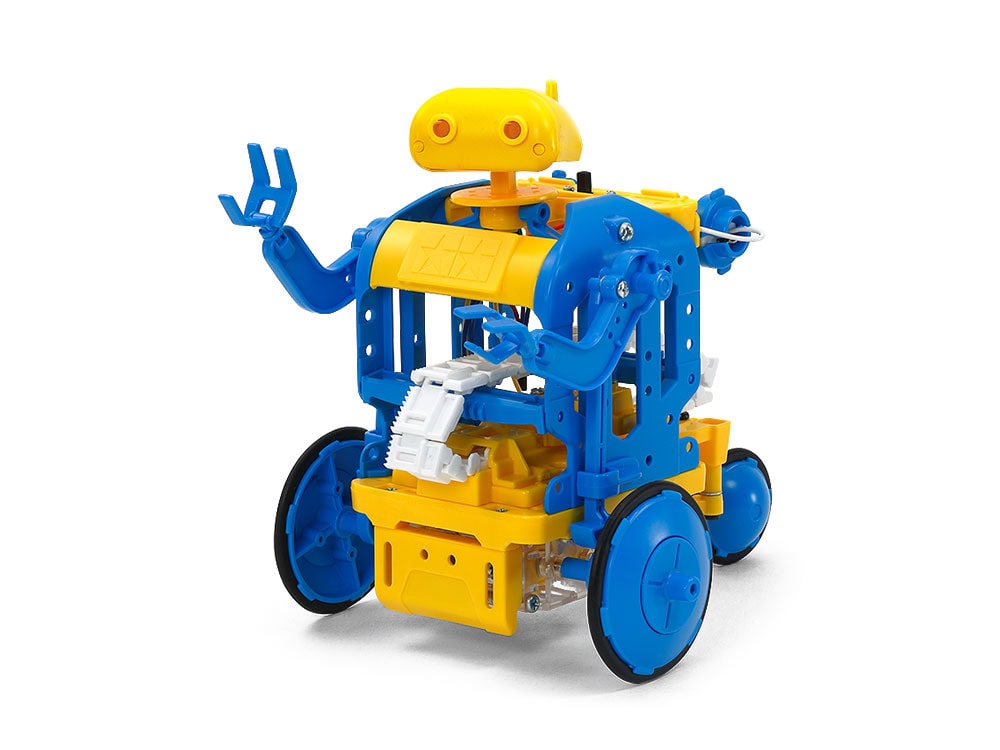

This is an assembly kit for a robot that can be programmed to move in three different ways: forward, right curve, and left curve, by connecting the pieces together like a chain. The refreshing blue and yellow color combination of the robot body is accented with white chains in a special color version. When the chain is set in the slot at the rear of the robot, the internal gears move the chain and mechanically read the frame, causing the front tires to move forward and the rear tires to change direction and curve to the left or right. When the front tires rotate, the left and right arms and head swing in tandem, creating a cute movement that makes the robot look around while walking energetically. Each forward frame moves forward about 15 cm, and each curved frame turns about 30° in each direction. There are 64 frames in total: 32 for forward movement and 16 for left and right curves. The program uses approximately 3 to 20 frames. In addition, by connecting the frames like a loop, it is possible to repeat the programmed pattern, using 20 to 40 frames in this case. If there is a large, flat area where the chain will not get caught, the chain can be extended to create an epic adventure. Countless combinations can be tried, making it fun to create a course and challenge yourself to see if the program you set up will follow the course.

【透過充滿清爽感的機械人挑戰編程！】

本商品是可動式編程機械人的組裝套件，通過將幀格像鏈條般連接在一起，可以設定三種不同的移動方式：前進、右轉和左轉。機械人主體採用清爽的藍色和黃色組合，配以特殊顏色版本的白色鏈條作為點綴。當鏈條套入機械人尾部的卡槽時，內部齒輪帶動鏈條運動，機械地讀取幀格，前輪向前移動，後輪改變方向，向左或向右轉彎。隨著前輪的轉動，左右手臂和頭部也隨之擺動，形成可愛的動作，使機器人在行走時會同時環顧四周。每個朝前的幀格向前移動約15cm，而轉彎的幀格則向每個方向轉動約30°。模型總共附有64個幀格：32個向前的幀格和16個左右轉彎的幀格。每次編程大約使用3-20個幀格。這些幀格也可以連接成一個循環以重復編程模式，在這種情況下需要使用20-40個幀格。如果有一塊大而平坦的地方令鏈條不會被卡住的話，你可以把鏈條連接得更長，創造一個史詩般的冒險。嘗試無數種組合，創建不同的路線並挑戰自己，並看看機械人是否按照你設定的程式走吧！

【Try to upgrade by adding parts and boards】

The robot body has many 3mm holes for attaching various construction parts such as universal arms and plates (sold separately), so modifications are possible. The possibility is endless, just choose your own way. Furthermore, by incorporating a commercially available microcomputer board or circuit board, the robot can be developed from a mechanical program to a computer program.

【裝上配件或主機板進行升級】

機械人本體充滿3mm孔，對應萬向臂或萬向膠板等各種機械工程配件。於機械人內部裝配萬向膠板﹑增添齒輪箱加大動力﹑連接2ch遙控器改造成直接控制型等等，因著你的想法而有無限的可能性！除此之外亦可以嘗試裝上市售的微電腦板或主機板，把本來的機械式編程發展成電腦編程。

【Specifications】

• Completed Length: 185mm, Width: 138mm, Height: 162mm
• Includes 2 motors
• All necessary parts are included in the set, and the model is completed by simply screwing and fitting the parts together.

【產品規格】

• 完成時 長185cm 寬138cm 高162cm
• 附有2個摩打
• 套件中包含所有必要部件，只需簡易嵌合即可完成模型。

【Separately Required Items】

• R6/AA/UM3 batteries x1

【以下需另購】

• AA電池 x1
