Name: Tamiya 47498 1/10 RC TA08R Chassis Kit
SKU: TA 47498
Availability: InStock

描述

田宮 47498 1/10 RC遙控車 TA08R 底盤套件

【Full of selected parts for winning the Tamiya GP and Tamiya Challenge Cup】

This assembly kit takes the 2-belt driven TA08 chassis and makes it into a race-focussed unit with plenty of Hop-Up Options. It is equipped with a 2mm carbon fiber upper deck, plus a plastic lower deck with reinforcements for exemplary rigidity and superior steering that can be adjusted to your heart’s content. A-shaped upper arms and a four-wheel double wishbone suspension setup are employed, while aluminum upper arm mounts ensure great rigidity. The rear body mount section has been stiffened for great traction.

【Featured Components】

Drivetrain:
- Full ball bearings
- Front double cardan drive shafts
- Rear universal shafts
- Front direct pulley (aluminum direct cups)

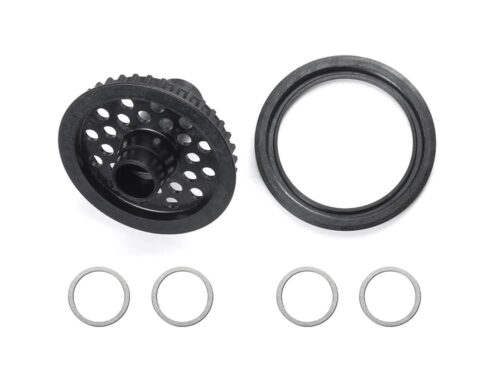

- 71T spur gear (TRF420 center pulley)

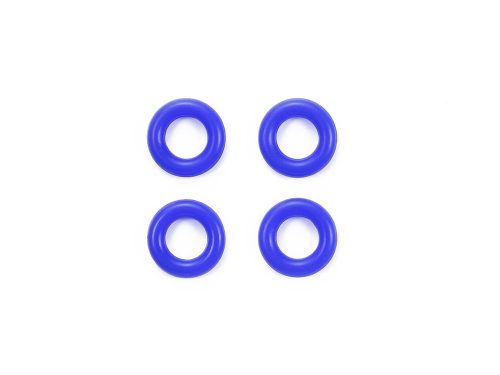

- Rear gear differential (aluminum diff joints, VG O-ring)

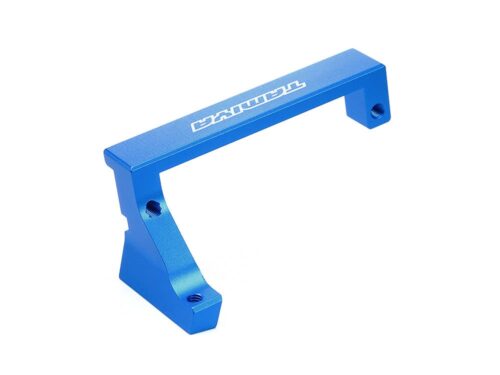

- Aluminum motor mount
Suspension:

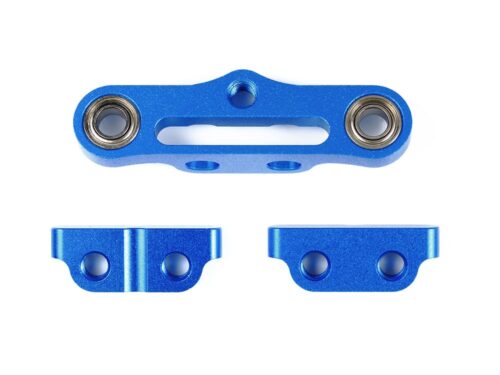

- Front & rear aluminum upper arm mounts

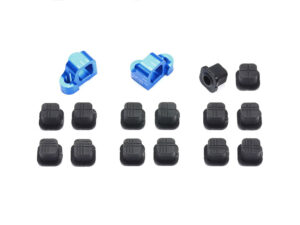

- Aluminum adjustable suspension mount
- Separate suspension mounts (XB/A)

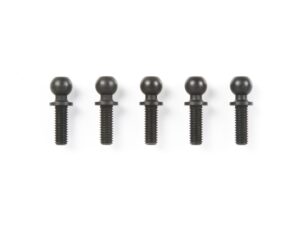

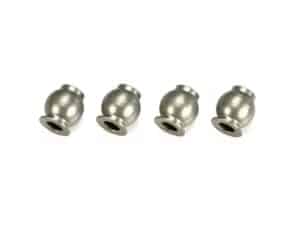

- Low-friction king pin balls

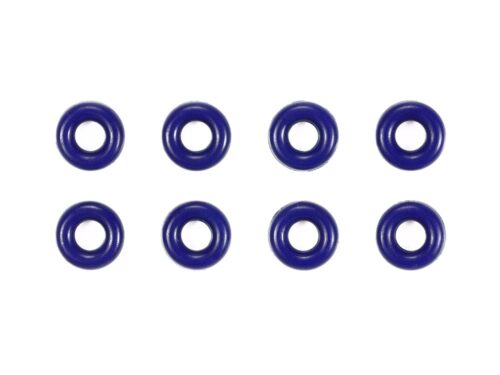

- Super short big bore dampers (VG O-rings)
Chassis:
- Carbon fiber upper deck (2.0mm)

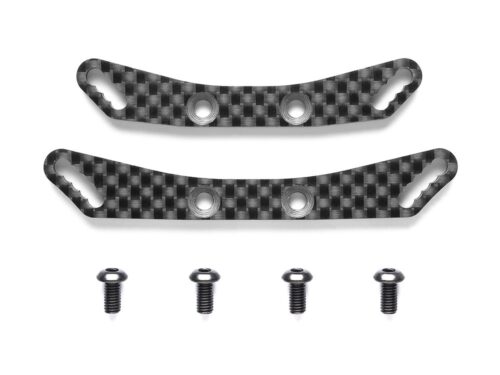

- Carbon fiber rear body mount plate (2.5mm)
- Aluminum rear body mount posts
- Aluminum servo mount

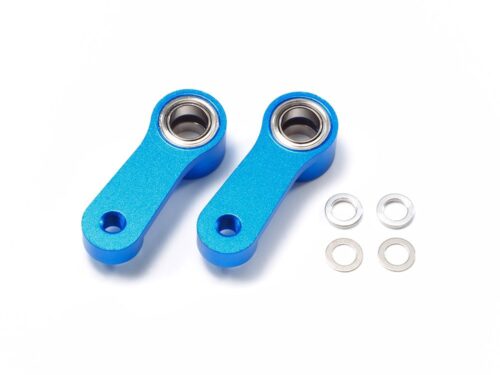

- Aluminum steering linkage
- Clamp-type wheel hubs (4mm)

【About the Model】

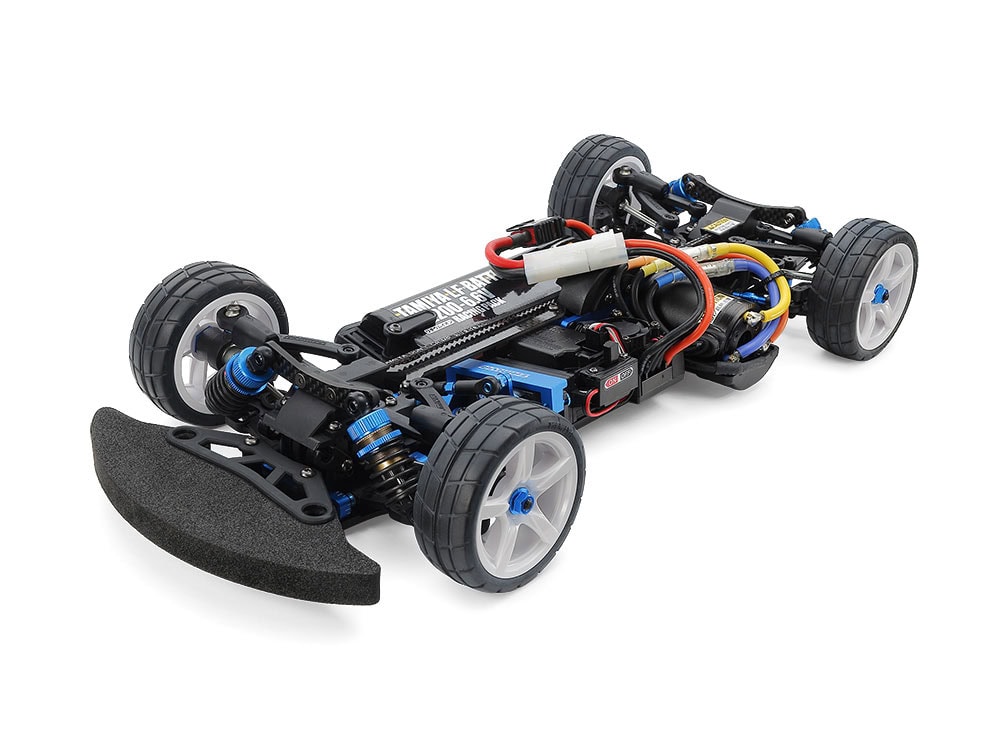

This is a 1/10 scale R/C touring car chassis kit.
The 2.0mm carbon fiber upper deck connects front and rear bulkheads for pitch rigidity and utilizes a 630 ball bearing at the rear for roll rigidity.
Front and rear aluminum upper arm mounts allow enhanced rigidity and intuitive drive.
The aluminum motor mount has two screw-attached, upper deck attachment points.
Rear body mount uses carbon fiber plates and aluminum posts, and limits body wobble and ensures stable rear traction. Body mount extensions (from Item 54604) allow attachment of bodies of different heights.
Additional ribs on the lower deck limit its deformation for superior suspension performance and help limit damage after unexpected crashes.

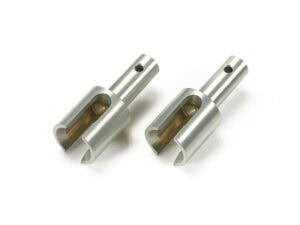

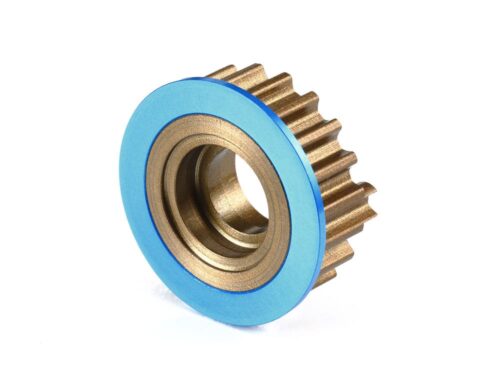

Gear units are front direct pulley (aluminum direct coupling) and rear gear differential (aluminum differential joint). Item 42351 TRF420 Center Pulley and 71T spur gear are used at the center for stability even under high load.

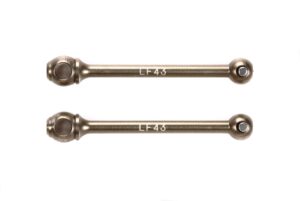

The drive shafts are double cardan shafts at the front and lightweight universal shafts at the rear.
Front aluminum pipes and cross joints are lightweight aluminum.
Aluminum wheel hubs limit wheel deformation and ensure stable tire grip.
Comes with 43mm swing shafts, Super Short Big Bore size dampers and front and rear carbon fiber damper stays, plus adjustable suspension mounts.
The model comes in a stylish and convenient carry case.
